Abstract

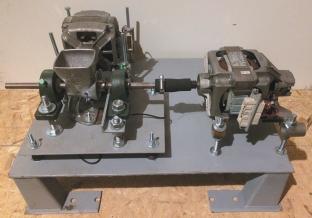

Practical work results on the development of an experimental stand for wear tests of millstones for grinding of grain are presented. When designing the stand, the method of testing for abrasive wear during friction against loosely fixed abrasive particles was used. A feature of the test bench is that the movable and fixed millstones are made cone-shaped and during testing are in oscillatory motion relative to the stationary stand platform. The test bench is equipped with a drive shaft speed sensor, a temperature sensor and a strain gauge force sensor. The Arduino IDE microcontroller software is used to process the incoming data. The software allows one to display the current values of the measured parameters on the screen of a personal computer monitor. All data are saved to files for further processing, which significantly reduces the time for experimental studies.
摘要 介绍了为磨碎谷物的磨石磨损试验开发试验台的实际工作成果。在设计试验台时，采用了在与松散固定的磨料颗粒摩擦过程中测试磨料磨损的方法。试验台的一个特点是活动磨石和固定磨石都是锥形的，在试验过程中相对于固定台架平台做摆动运动。测试台配备了传动轴速度传感器、温度传感器和应变仪力传感器。Arduino IDE 微控制器软件用于处理输入的数据。通过该软件，可以在个人电脑显示器的屏幕上显示测量参数的当前值。所有数据都保存到文件中，以便进一步处理，这大大缩短了实验研究的时间。
