Nonlinear Evolution of the Tearing Instability in a Thin Current Sheet

IF 0.9 4区 物理与天体物理 Q4 PHYSICS, FLUIDS & PLASMAS Plasma Physics Reports Pub Date : 2024-01-27 DOI:10.1134/s1063780x23601190
S. F. Garanin, E. M. Kravets
{"title":"Nonlinear Evolution of the Tearing Instability in a Thin Current Sheet","authors":"S. F. Garanin, E. M. Kravets","doi":"10.1134/s1063780x23601190","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3><p>In plane current sheets (foils, or liners), which are thin in comparison with their skin depth, an instability may grow because parallel currents in different areas of these sheets are attracted that leads to compression of these areas and partition of the current sheets into threads. This work describes the study of the nonlinear tearing instability evolution for a 1D case, when all the principal quantities (surface current and mass densities, velocity, and the magnetic field component normal to the sheet surface) depend on the coordinate perpendicular to the current density vector only. A 1D system of equations has been obtained, which describes the magnetic field dynamics and the substance motion in current sheets, and a numerical technique based on the Lagrangian discretization of mass has been developed to solve 1D magnetic hydrodynamics problems. It is shown that, if the tearing instability is considered, small perturbations of currents, velocities and mass densities grow in accordance with the earlier found growth rates of small perturbations and later, when the perturbations are no longer small, a nonlinear growth stage comes. In this stage, the perturbations of the surface current density <i>j</i> and the surface mass density μ increase unlimitedly for a finite time period (apparently, according to power laws <span>\\(j\\sim {{({{t}_{s}} - t)}^{{ - \\alpha }}}\\)</span>, <span>\\(\\mu \\sim {{({{t}_{s}} - t)}^{{ - \\gamma }}}\\)</span>, <span>\\({{t}_{s}}\\)</span> is the time, when these quantities become infinite); however the width of the current and mass density peaks tends to zero, so that the total current and total mass in the peaks of the current density and surface mass density decrease and tend to zero.</p>","PeriodicalId":735,"journal":{"name":"Plasma Physics Reports","volume":null,"pages":null},"PeriodicalIF":0.9000,"publicationDate":"2024-01-27","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Plasma Physics Reports","FirstCategoryId":"101","ListUrlMain":"https://doi.org/10.1134/s1063780x23601190","RegionNum":4,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"PHYSICS, FLUIDS & PLASMAS","Score":null,"Total":0}
引用次数: 0

Abstract

In plane current sheets (foils, or liners), which are thin in comparison with their skin depth, an instability may grow because parallel currents in different areas of these sheets are attracted that leads to compression of these areas and partition of the current sheets into threads. This work describes the study of the nonlinear tearing instability evolution for a 1D case, when all the principal quantities (surface current and mass densities, velocity, and the magnetic field component normal to the sheet surface) depend on the coordinate perpendicular to the current density vector only. A 1D system of equations has been obtained, which describes the magnetic field dynamics and the substance motion in current sheets, and a numerical technique based on the Lagrangian discretization of mass has been developed to solve 1D magnetic hydrodynamics problems. It is shown that, if the tearing instability is considered, small perturbations of currents, velocities and mass densities grow in accordance with the earlier found growth rates of small perturbations and later, when the perturbations are no longer small, a nonlinear growth stage comes. In this stage, the perturbations of the surface current density j and the surface mass density μ increase unlimitedly for a finite time period (apparently, according to power laws \(j\sim {{({{t}_{s}} - t)}^{{ - \alpha }}}\), \(\mu \sim {{({{t}_{s}} - t)}^{{ - \gamma }}}\), \({{t}_{s}}\) is the time, when these quantities become infinite); however the width of the current and mass density peaks tends to zero, so that the total current and total mass in the peaks of the current density and surface mass density decrease and tend to zero.

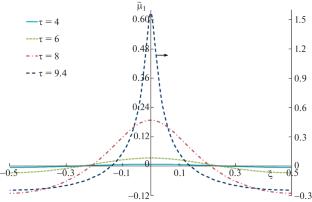

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
薄电流片中撕裂不稳定性的非线性演变
摘要 在与表皮深度相比很薄的平面电流片(箔或衬里)中,由于这些片的不同区域的平行电流被吸引,导致这些区域被压缩,电流片被分割成线状,从而可能产生不稳定性。这项工作描述了对一维情况下非线性撕裂不稳定性演变的研究,此时所有主要量(表面电流和质量密度、速度和磁场分量)仅取决于垂直于电流密度矢量的坐标。我们得到了一个描述磁场动力学和电流片中物质运动的一维方程组,并开发了一种基于质量拉格朗日离散化的数值技术来求解一维磁流体力学问题。研究表明,如果考虑到撕裂不稳定性,电流、速度和质量密度的小扰动会按照先前发现的小扰动增长率增长,随后,当扰动不再小的时候,就会进入非线性增长阶段。在这一阶段,表面电流密度 j 和表面质量密度 μ 的扰动会在有限的时间内无限增长(显然,在这一阶段,表面电流密度 j 和表面质量密度 μ 的扰动会在有限的时间内无限增长)、根据幂律 \(j\sim {{({{t}_{s}} - t)}^{{ - \alpha }}}\), \(\mu \sim {{({{t}_{s}} - t)}^{{ - \gamma }}}\), \({{t}_{s}}}\) 是时间,此时这些量变得无限大);然而,电流密度峰和质量密度峰的宽度趋于零,因此电流密度峰和表面质量密度峰中的总电流和总质量会减小并趋于零。
