Influence of implant design and length on stress distribution in immediately loaded implants in posterior maxilla - A two-dimensional finite element analysis.

Abstract

Aim: The aim of this two dimensional (2D) finite element analysis study was to evaluate the influence of implant design (step and tapered) and length on stress distribution at bone implant interface, when placed in maxillary posterior bone under immediate loading protocol.

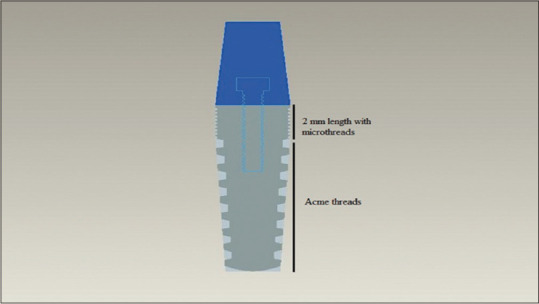

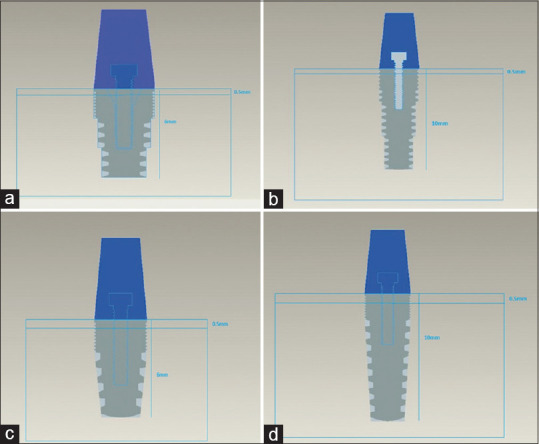

Materials and methods: 2D finite element models were developed to simulate the two types of implant designs, i.e., Tapered and step implants of 3.75-mm - Diameter and 6 and 10 mm lengths, respectively. Maxillary posterior bone quality (D4 bone) was simulated with a very thin cortical bone (0.5 mm) for the placement of implants. The respective material properties were assigned. The implant designs incorporated microthreads at the crestal part and rest of the implant body incorporated Acme threads. Forces of 100 Newtons were applied vertically and in oblique direction (at an angle of 45°) to long axis of the implants. Total deformation (micromovements), stresses and strains were evaluated at the bone implant interface.

Results: The results of micromovements, stresses and strains were found to be lower for long implants as compared to short implants. Also, all the values were found to be higher for oblique loads as compared to vertical loads. The von mises stress values were highest for 6 mm step implants and lowest for 10 mm step implants.

Conclusion: In the presence of low bone density with optimal bone height, standard diameter long step implants can be used. Incorporation of microthreads at the crestal portion and acme threads for body portion of the implant presents a good option to be used under immediate loading protocol.
