Ionic Liquids as Cathode Additives for High Voltage Lithium Batteries

Abstract

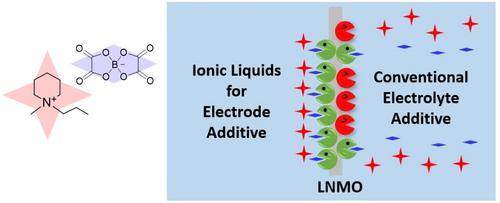

Two oxalatoborate ionic liquids (ILs), which are commonly utilized as electrolyte additives that form a protective layer on the cathode surface, are investigated for the first time as electrode additives. Cathodes based on LiNi_0.5Mn_1.5O₄ (LNMO) containing 3 wt % ILs, i. e., “IL-enriched cathodes”, exhibit capacity values above 120 mAh/g with high Coulombic efficiencies throughout cycling over 200 times. A cathode without ILs also exhibits a capacity of 119 mAh/g but its Coulombic efficiency becomes low and unstable after 109 cycles. In addition, when 0.3 M ILs are added to conventional carbonate-based electrolytes, the battery cycle life improves but there is a reduction in the capacity probably due to low ionic conductivity of the electrolyte mixtures. Post-mortem analyses of electrodes retrieved from cycled cells highlight less electrolyte decomposition and less cathode corrosion, enabled by using the IL as the additive in LNMO, which are confirmed by a particle shape with smooth surface identical to the fresh cathode. The study demonstrates that oxalatoborate ILs can be used as the electrode additive, and this provides a new concept for cathode formulations for high performance batteries with a small amount of ILs.
