A. V. Babichev, E. S. Kolodeznyi, A. G. Gladyshev, D. V. Denisov, N. Yu. Kharin, A. D. Petruk, V. Yu. Panevin, S. O. Slipchenko, A. V. Lyutetskii, L. Ya. Karachinsky, I. I. Novikov, N. A. Pikhtin, A. Yu. Egorov
{"title":"Features of Single-Mode Emission in 7.5–8.0 μm Range Quantum-Cascade Lasers with a Short Cavity Length","authors":"A. V. Babichev, E. S. Kolodeznyi, A. G. Gladyshev, D. V. Denisov, N. Yu. Kharin, A. D. Petruk, V. Yu. Panevin, S. O. Slipchenko, A. V. Lyutetskii, L. Ya. Karachinsky, I. I. Novikov, N. A. Pikhtin, A. Yu. Egorov","doi":"10.1134/s106378502301008x","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3><p>The possibility of realizing single-mode emission in quantum-cascade lasers due to modulation of output optical losses in a Fabry–Perot cavity is demonstrated. For the active region of the 7.5–8.0 μm spectral range, the two- phonon resonance design was used, thus, 50 stages and waveguide layers based on indium phosphide made it possible to realize single-mode 7.765 μm lasing at the temperature of 292 K. Side-mode suppression ratio was about 24 dB and remained the same with an increase in the current pumping up to 1.2 of the threshold current values. The coefficient of wavelength shift with temperature (temperature tuning) in the single-mode lasing regime was 0.56 nm/K.</p>","PeriodicalId":784,"journal":{"name":"Technical Physics Letters","volume":null,"pages":null},"PeriodicalIF":0.8000,"publicationDate":"2024-03-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Technical Physics Letters","FirstCategoryId":"101","ListUrlMain":"https://doi.org/10.1134/s106378502301008x","RegionNum":4,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q4","JCRName":"PHYSICS, APPLIED","Score":null,"Total":0}
引用次数: 0

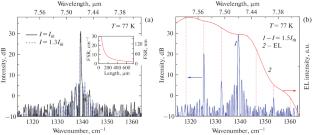

Abstract
The possibility of realizing single-mode emission in quantum-cascade lasers due to modulation of output optical losses in a Fabry–Perot cavity is demonstrated. For the active region of the 7.5–8.0 μm spectral range, the two- phonon resonance design was used, thus, 50 stages and waveguide layers based on indium phosphide made it possible to realize single-mode 7.765 μm lasing at the temperature of 292 K. Side-mode suppression ratio was about 24 dB and remained the same with an increase in the current pumping up to 1.2 of the threshold current values. The coefficient of wavelength shift with temperature (temperature tuning) in the single-mode lasing regime was 0.56 nm/K.
