Addition of nisin to high-viscosity glass-ionomer cement: a comparative in vitro study on antibacterial and physical properties.

Abstract

Purpose: Nisin is a lantibiotic effective against Gram-positive microorganisms such as Streptococcus mutans. The study aimed to determine the effect of the addition of nisin to high-viscosity glass-ionomer cement (HVGIC) on its antibacterial activity, setting time, surface microhardness, and compressive strength.

Methods: 1 and 3% w/w nisin were added to HVGIC before mixing. Unmodified HVGIC was the control. Agar disc diffusion, direct contact test, and scanning electron microscopy (SEM) analysis were used to evaluate antibacterial activity against S. mutans. Setting time, surface microhardness, and compressive strength were measured using Gilmore needle apparatus, digital microhardness tester, and universal testing machine, respectively. Statistical analysis included Student's t test, one-way ANOVA with Tamhane's post hoc test, and repeated-measures ANOVA.

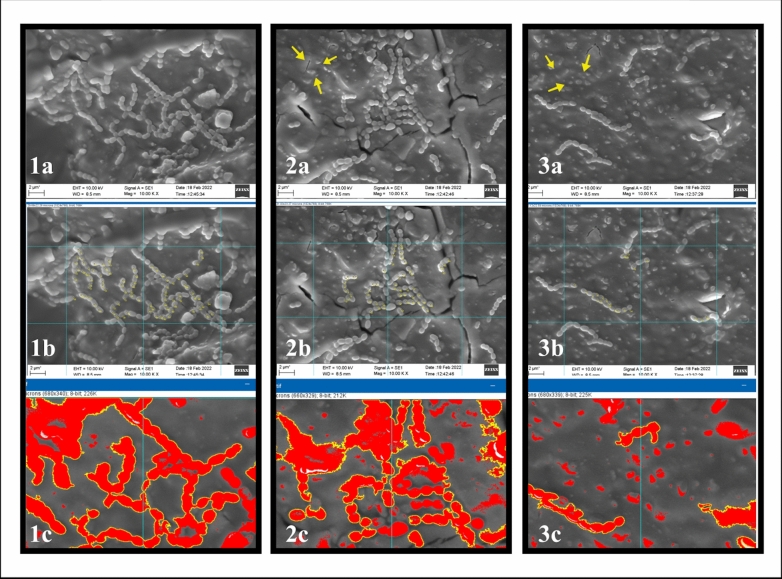

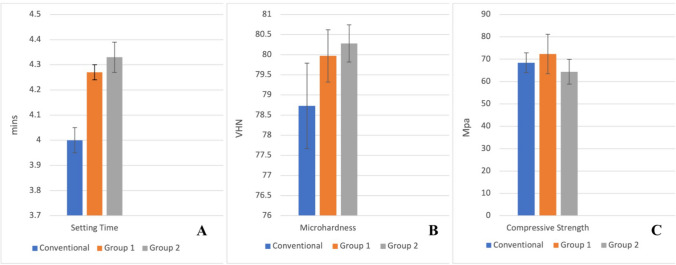

Results: As evidenced by the agar disc diffusion (p < 0.001), direct contact tests (p = 0.025), and SEM analysis of the S. mutans cell count and cell surface area (p = 0.049 and 0.003), 3% nisin had the strongest antibacterial activity. There was a dose-dependent increase in setting time (p = 0.005) and surface microhardness (p = 0.006), with no significant difference in compressive strength compared to control.

Conclusion: The addition of 3% nisin to HVGIC enhances the antibacterial action against S. mutans and surface microhardness without adversely affecting setting time and compressive strength.
