Yujia Zhu, Aonan Wen, Ning Xiao, Zixiang Gao, Shengwen Zheng, Xiangling Fu, Yijiao Zhao, Yong Wang
{"title":"Automatic extraction of facial median sagittal plane for patients with asymmetry based on the EDMA alignment algorithm.","authors":"Yujia Zhu, Aonan Wen, Ning Xiao, Zixiang Gao, Shengwen Zheng, Xiangling Fu, Yijiao Zhao, Yong Wang","doi":"10.1186/s13005-024-00430-4","DOIUrl":null,"url":null,"abstract":"<p><strong>Background: </strong>We aimed to establish a novel method for automatically constructing three-dimensional (3D) median sagittal plane (MSP) for mandibular deviation patients, which can increase the efficiency of aesthetic evaluating treatment progress. We developed a Euclidean weighted Procrustes analysis (EWPA) algorithm for extracting 3D facial MSP based on the Euclidean distance matrix analysis, automatically assigning weight to facial anatomical landmarks.</p><p><strong>Methods: </strong>Forty patients with mandibular deviation were recruited, and the Procrustes analysis (PA) algorithm based on the original mirror alignment and EWPA algorithm developed in this study were used to construct the MSP of each facial model of the patient as experimental groups 1 and 2, respectively. The expert-defined regional iterative closest point algorithm was used to construct the MSP as the reference group. The angle errors of the two experimental groups were compared to those of the reference group to evaluate their clinical suitability.</p><p><strong>Results: </strong>The angle errors of the MSP constructed by the two EWPA and PA algorithms for the 40 patients were 1.39 ± 0.85°, 1.39 ± 0.78°, and 1.91 ± 0.80°, respectively. The two EWPA algorithms performed best in patients with moderate facial asymmetry, and in patients with severe facial asymmetry, the angle error was below 2°, which was a significant improvement over the PA algorithm.</p><p><strong>Conclusions: </strong>The clinical application of the EWPA algorithm based on 3D facial morphological analysis for constructing a 3D facial MSP for patients with mandibular deviated facial asymmetry deformity showed a significant improvement over the conventional PA algorithm and achieved the effect of a dental clinical expert-level diagnostic strategy.</p>","PeriodicalId":12994,"journal":{"name":"Head & Face Medicine","volume":"20 1","pages":"34"},"PeriodicalIF":2.4000,"publicationDate":"2024-05-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11102234/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Head & Face Medicine","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1186/s13005-024-00430-4","RegionNum":2,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"DENTISTRY, ORAL SURGERY & MEDICINE","Score":null,"Total":0}
引用次数: 0
Abstract

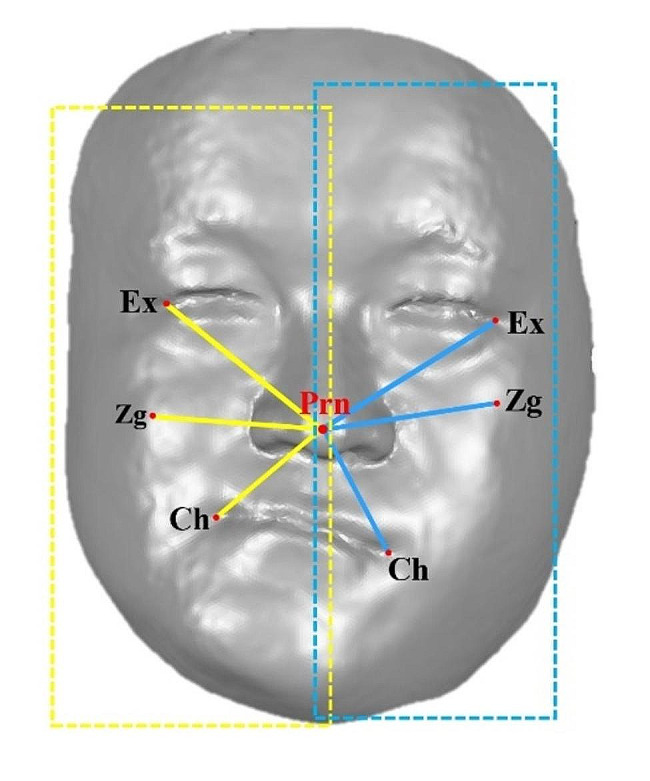

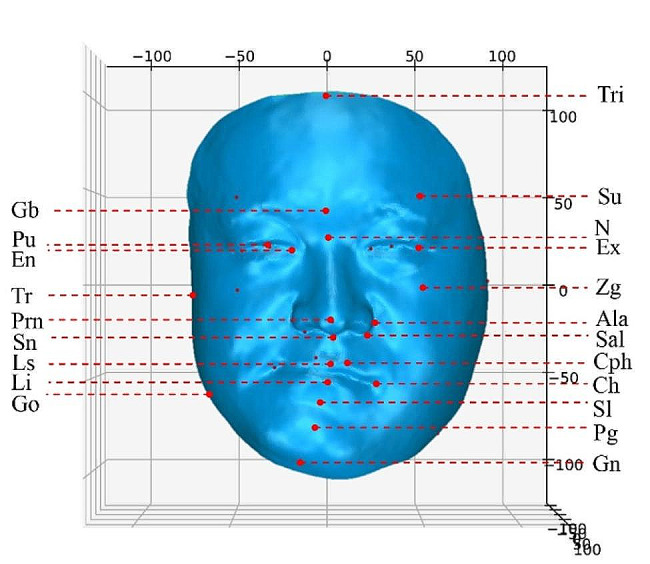

Background: We aimed to establish a novel method for automatically constructing three-dimensional (3D) median sagittal plane (MSP) for mandibular deviation patients, which can increase the efficiency of aesthetic evaluating treatment progress. We developed a Euclidean weighted Procrustes analysis (EWPA) algorithm for extracting 3D facial MSP based on the Euclidean distance matrix analysis, automatically assigning weight to facial anatomical landmarks.
Methods: Forty patients with mandibular deviation were recruited, and the Procrustes analysis (PA) algorithm based on the original mirror alignment and EWPA algorithm developed in this study were used to construct the MSP of each facial model of the patient as experimental groups 1 and 2, respectively. The expert-defined regional iterative closest point algorithm was used to construct the MSP as the reference group. The angle errors of the two experimental groups were compared to those of the reference group to evaluate their clinical suitability.
Results: The angle errors of the MSP constructed by the two EWPA and PA algorithms for the 40 patients were 1.39 ± 0.85°, 1.39 ± 0.78°, and 1.91 ± 0.80°, respectively. The two EWPA algorithms performed best in patients with moderate facial asymmetry, and in patients with severe facial asymmetry, the angle error was below 2°, which was a significant improvement over the PA algorithm.
Conclusions: The clinical application of the EWPA algorithm based on 3D facial morphological analysis for constructing a 3D facial MSP for patients with mandibular deviated facial asymmetry deformity showed a significant improvement over the conventional PA algorithm and achieved the effect of a dental clinical expert-level diagnostic strategy.
