Metallurgical Failure Analysis: A Case Study of Observing a Leak in a Stainless Steel SS304 Pipe

IF 1.3 4区工程技术 Q3 CHEMISTRY, ORGANIC Petroleum Chemistry Pub Date : 2024-05-23 DOI:10.1134/s096554412402004x

Hassan Mansour Raheem, Ibraheem Altayer, Hayder Shareef Mohamed, Mohammed H. Al-maamori

{"title":"Metallurgical Failure Analysis: A Case Study of Observing a Leak in a Stainless Steel SS304 Pipe","authors":"Hassan Mansour Raheem, Ibraheem Altayer, Hayder Shareef Mohamed, Mohammed H. Al-maamori","doi":"10.1134/s096554412402004x","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3><p>In this study, metallurgical failure analysis of leak observed in SS304 pipe of 355.6 mm out side diameter and 4.78 mm wall thickness is invistigated. The pipe was hydrostatic pressure tested, and the leakage was observed on the pipe after priod of time. Visual test, scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS), and energy dispersive X-ray spectroscopy (EDS) were carried out on the samples. Heat tint and griding marks were observed during visual inspection. In addition, scanning electron microscopy reveales many pinholes, tunnel-types in the leaked area. Energy-dispersive X-ray spectroscopy also shows that a multifactorial corrosion process due to stagnant water conditions, bacterial activity, corrosive elements contribte to the leak in the pipe. The results show that the leak damage essentially due to stagnancy of water—improper dry-out of the pipe after hydro test leading to chloride pitting attack and eventually causing leakage. The decomposition of the passive oxide layer due to the high concentration of chlorine and accumulation of microbial byproducts played an important role in examining the SS304 pipe. Preventive measures such as proper inspection, proper welding practices, sanitation, disinfection, and water management are important for corrosion prevention.</p>","PeriodicalId":725,"journal":{"name":"Petroleum Chemistry","volume":"121 1","pages":""},"PeriodicalIF":1.3000,"publicationDate":"2024-05-23","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Petroleum Chemistry","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1134/s096554412402004x","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"CHEMISTRY, ORGANIC","Score":null,"Total":0}

引用次数: 0

Abstract

In this study, metallurgical failure analysis of leak observed in SS304 pipe of 355.6 mm out side diameter and 4.78 mm wall thickness is invistigated. The pipe was hydrostatic pressure tested, and the leakage was observed on the pipe after priod of time. Visual test, scanning electron microscopy (SEM), and energy-dispersive X-ray spectroscopy (EDS), and energy dispersive X-ray spectroscopy (EDS) were carried out on the samples. Heat tint and griding marks were observed during visual inspection. In addition, scanning electron microscopy reveales many pinholes, tunnel-types in the leaked area. Energy-dispersive X-ray spectroscopy also shows that a multifactorial corrosion process due to stagnant water conditions, bacterial activity, corrosive elements contribte to the leak in the pipe. The results show that the leak damage essentially due to stagnancy of water—improper dry-out of the pipe after hydro test leading to chloride pitting attack and eventually causing leakage. The decomposition of the passive oxide layer due to the high concentration of chlorine and accumulation of microbial byproducts played an important role in examining the SS304 pipe. Preventive measures such as proper inspection, proper welding practices, sanitation, disinfection, and water management are important for corrosion prevention.

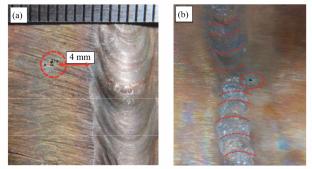

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

冶金失效分析：观察 SS304 不锈钢管泄漏的案例研究

摘要本研究对外径 355.6 毫米、壁厚 4.78 毫米的 SS304 管材中观察到的泄漏进行了冶金失效分析。对管道进行了静水压力测试，并在一段时间后观察到管道出现泄漏。对样品进行了目测、扫描电子显微镜（SEM）、能量色散 X 射线光谱（EDS）和能量色散 X 射线光谱（EDS）分析。在目测过程中观察到了热色调和栅格痕迹。此外，扫描电子显微镜还在泄漏区域发现了许多针孔和隧道类型。能量色散 X 射线光谱分析也显示，积水条件、细菌活动、腐蚀性元素等多因素腐蚀过程导致了管道泄漏。结果表明，泄漏破坏主要是由于积水--水压试验后管道干燥不当导致氯化物点蚀，最终造成泄漏。高浓度氯导致的被动氧化层分解和微生物副产物的积累在 SS304 管道的检测中发挥了重要作用。正确的检查、正确的焊接方法、卫生、消毒和水管理等预防措施对于防止腐蚀非常重要。
