Utilizing Covalent Triazine Framework (CT-1) Loading for CT-1/Polysulfone Mixed Matrix Membrane for CO2

IF 1.3 4区工程技术 Q3 CHEMISTRY, ORGANIC Petroleum Chemistry Pub Date : 2024-05-23 DOI:10.1134/s0965544124020051

Ali A. Abdulabbas, Thamer J. Mohammed, Tahseen Ali Al-Hattab

{"title":"Utilizing Covalent Triazine Framework (CT-1) Loading for CT-1/Polysulfone Mixed Matrix Membrane for CO2","authors":"Ali A. Abdulabbas, Thamer J. Mohammed, Tahseen Ali Al-Hattab","doi":"10.1134/s0965544124020051","DOIUrl":null,"url":null,"abstract":"<h3 data-test=\"abstract-sub-heading\">Abstract</h3>The growing need for carbon dioxide (CO2) removal in various industrial sectors has led researchers to focus on the positive features of mixed matrix membranes (MMMs). Covalent triazine frameworks (CT-1) and polysulfone (PSF) were both used in the creation of MMMs. Due to the high porosity, significant area of surface, uniform dimension of pores, and thermal and chemical resistance, CT-1 was selected. The newly developed CT-1/PSF MMMs were prepared with different CT-1 loadings (0, 0.1, 0.3, 0.8, 1.1, and 1.5 wt %) in dope solution. The performance of membranes was evaluated using FTIR, FESEM, TGA, mechanical properties, and gas separation tests. In pure gas tests, the CO2 permeance and ideal CO2/N2 and CO2/CH4 selectivity increased when CT-1 loading was increased from 0 to 0.8 wt %. MMMs confirmed 109.12 and 91.42% increases in CO2/N2 and CO2/CH4 selectivities compared to pure PSF, respectively. However, a further increase in CT-1 loading beyond 0.8 wt % led to a drop in ideal selectivity. CO2 permeance and selectivity were reduced with pressure (2, 3, 4, and 5 bar). Additionally, investigated the effect of the feed stream (3/97 vol % of CO2/CH4) on CO2 separation. This paper describes a new technique for improving the ability of mixed matrix membranes through CT-1 fillers.","PeriodicalId":725,"journal":{"name":"Petroleum Chemistry","volume":"20 1","pages":""},"PeriodicalIF":1.3000,"publicationDate":"2024-05-23","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Petroleum Chemistry","FirstCategoryId":"5","ListUrlMain":"https://doi.org/10.1134/s0965544124020051","RegionNum":4,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q3","JCRName":"CHEMISTRY, ORGANIC","Score":null,"Total":0}

引用次数: 0

Abstract

The growing need for carbon dioxide (CO₂) removal in various industrial sectors has led researchers to focus on the positive features of mixed matrix membranes (MMMs). Covalent triazine frameworks (CT-1) and polysulfone (PSF) were both used in the creation of MMMs. Due to the high porosity, significant area of surface, uniform dimension of pores, and thermal and chemical resistance, CT-1 was selected. The newly developed CT-1/PSF MMMs were prepared with different CT-1 loadings (0, 0.1, 0.3, 0.8, 1.1, and 1.5 wt %) in dope solution. The performance of membranes was evaluated using FTIR, FESEM, TGA, mechanical properties, and gas separation tests. In pure gas tests, the CO₂ permeance and ideal CO₂/N₂ and CO₂/CH₄ selectivity increased when CT-1 loading was increased from 0 to 0.8 wt %. MMMs confirmed 109.12 and 91.42% increases in CO₂/N₂ and CO₂/CH₄ selectivities compared to pure PSF, respectively. However, a further increase in CT-1 loading beyond 0.8 wt % led to a drop in ideal selectivity. CO₂ permeance and selectivity were reduced with pressure (2, 3, 4, and 5 bar). Additionally, investigated the effect of the feed stream (3/97 vol % of CO₂/CH₄) on CO₂ separation. This paper describes a new technique for improving the ability of mixed matrix membranes through CT-1 fillers.

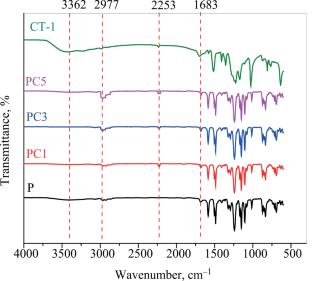

Abstract Image

查看原文

微信好友朋友圈 QQ好友复制链接

本刊更多论文

利用共价三嗪框架（CT-1）负载 CT-1/Polysulfone 混合基质膜吸收二氧化碳

摘要各个工业部门对去除二氧化碳（CO2）的需求日益增长，促使研究人员关注混合基质膜（MMMs）的积极特性。共价三嗪框架（CT-1）和聚砜（PSF）都被用于制造混合基质膜。由于 CT-1 孔隙率高、表面积大、孔隙尺寸均匀以及耐热性和耐化学性，因此被选中。新开发的 CT-1/PSF MMM 在掺杂溶液中的添加量不同（0、0.1、0.3、0.8、1.1 和 1.5 wt %）。使用傅立叶变换红外光谱、有限电子显微镜、热重分析、机械性能和气体分离测试对膜的性能进行了评估。在纯气测试中，当 CT-1 的负载量从 0 wt % 增加到 0.8 wt % 时，二氧化碳的渗透率以及理想的 CO2/N2 和 CO2/CH4 选择性均有所提高。与纯 PSF 相比，MMM 证实 CO2/N2 和 CO2/CH4 选择性分别提高了 109.12% 和 91.42%。然而，CT-1 含量超过 0.8 wt % 后，理想选择性下降。二氧化碳渗透率和选择性随压力（2、3、4 和 5 巴）的增加而降低。此外，还研究了进料流（3/97 vol % CO2/CH4）对二氧化碳分离的影响。本文介绍了一种通过 CT-1 填料提高混合基质膜能力的新技术。
