Sacrificial NH4HCO3 Inhibits Fluoropolymer/Garnet Interfacial Reactions Toward 1mS cm−1 and 5V‐Level Composite Solid Electrolyte

IF 18.5 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Advanced Functional Materials Pub Date : 2024-06-14 DOI:10.1002/adfm.202405060
Yaping Wang, Pengcheng Yuan, Xiong Xiong Liu, Shengfa Feng, Mufan Cao, Jianxiang Ding, Jiacheng Liu, Song‐Zhu Kure‐Chu, Takehiko Hihara, Long Pan, Zhengming Sun
{"title":"Sacrificial NH4HCO3 Inhibits Fluoropolymer/Garnet Interfacial Reactions Toward 1mS cm−1 and 5V‐Level Composite Solid Electrolyte","authors":"Yaping Wang, Pengcheng Yuan, Xiong Xiong Liu, Shengfa Feng, Mufan Cao, Jianxiang Ding, Jiacheng Liu, Song‐Zhu Kure‐Chu, Takehiko Hihara, Long Pan, Zhengming Sun","doi":"10.1002/adfm.202405060","DOIUrl":null,"url":null,"abstract":"Composite solid electrolytes (CSEs) integrate the fast ion conductivity of inorganic electrolytes and the excellent interfacial compatibility of polymer electrolytes. Typically, fluoropolymers and garnets are promising individuals to formulate cutting‐edge CSEs owing to their unique properties. However, the alkaline garnets can induce the dehydrofluorination of fluoropolymers, deteriorating their CSEs performance. Here, for the first time, NH4HCO3 is proposed as a sacrificial inhibitor to effectively prevent the garnet‐induced dehydrofluorination, using Li6.4La3Zr1.4Ta0.6O12 (LLZTO) and poly(vinylidene fluoride‐co‐hexafluoropropylene) (PVH) as symbolic garnets and fluoropolymers, respectively. Various findings demonstrate that NH4HCO3 can buffer the alkalinity of LLZTO, thereby inhibiting the dehydrofluorination of PVH. In addition, NH4HCO3 can completely decompose to volatiles upon drying without compromising the properties of LLZTO and PVH. Additionally, a polymer‐in‐salt strategy is further introduced by adding high‐concentration LiTFSI salt to the above system, resulting in the PVH/LiTFSI/LLZTO (PLL) CSEs. Benefiting from the synergetic coupling of the sacrificial inhibitor and polymer‐in‐salt strategies, the PLL exhibits an exceptionally high ionic conductivity of 1.2 mS cm−1 at 25 °C and stable voltage of 5.09 V, outperforming other reported CSEs. Consequently, the PLL delivers impressive high‐rate cyclability in solid‐state lithium‐metal batteries with an outstanding capacity retention of 95.4% after 240 cycles at 1 C (25 °C).","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":null,"pages":null},"PeriodicalIF":18.5000,"publicationDate":"2024-06-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adfm.202405060","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

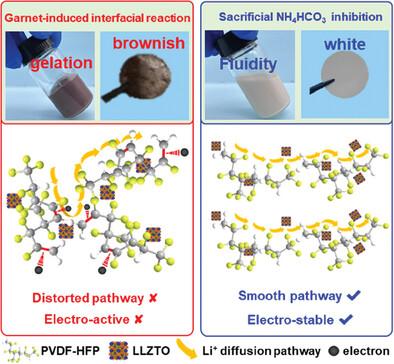

Composite solid electrolytes (CSEs) integrate the fast ion conductivity of inorganic electrolytes and the excellent interfacial compatibility of polymer electrolytes. Typically, fluoropolymers and garnets are promising individuals to formulate cutting‐edge CSEs owing to their unique properties. However, the alkaline garnets can induce the dehydrofluorination of fluoropolymers, deteriorating their CSEs performance. Here, for the first time, NH4HCO3 is proposed as a sacrificial inhibitor to effectively prevent the garnet‐induced dehydrofluorination, using Li6.4La3Zr1.4Ta0.6O12 (LLZTO) and poly(vinylidene fluoride‐co‐hexafluoropropylene) (PVH) as symbolic garnets and fluoropolymers, respectively. Various findings demonstrate that NH4HCO3 can buffer the alkalinity of LLZTO, thereby inhibiting the dehydrofluorination of PVH. In addition, NH4HCO3 can completely decompose to volatiles upon drying without compromising the properties of LLZTO and PVH. Additionally, a polymer‐in‐salt strategy is further introduced by adding high‐concentration LiTFSI salt to the above system, resulting in the PVH/LiTFSI/LLZTO (PLL) CSEs. Benefiting from the synergetic coupling of the sacrificial inhibitor and polymer‐in‐salt strategies, the PLL exhibits an exceptionally high ionic conductivity of 1.2 mS cm−1 at 25 °C and stable voltage of 5.09 V, outperforming other reported CSEs. Consequently, the PLL delivers impressive high‐rate cyclability in solid‐state lithium‐metal batteries with an outstanding capacity retention of 95.4% after 240 cycles at 1 C (25 °C).
查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
人工合成 NH4HCO3 可抑制氟聚合物/石榴石的界面反应,使其达到 1mS cm-1 和 5V 级复合固体电解质的水平
复合固体电解质(CSE)集无机电解质的快速离子传导性和聚合物电解质的出色界面相容性于一身。通常情况下,含氟聚合物和石榴石因其独特的性能而成为配制尖端 CSE 的理想材料。然而,碱性石榴石会导致含氟聚合物脱氢氟化,从而降低 CSE 的性能。本文首次提出将 NH4HCO3 作为一种牺牲抑制剂,以 Li6.4La3Zr1.4Ta0.6O12 (LLZTO) 和聚偏氟乙烯-六氟丙烯 (PVH) 分别作为标志性石榴石和含氟聚合物,有效防止石榴石诱导的脱氢氟化。各种研究结果表明,NH4HCO3 可以缓冲 LLZTO 的碱度,从而抑制 PVH 的脱氢氟化。此外,NH4HCO3 在干燥时可完全分解为挥发物,而不会影响 LLZTO 和 PVH 的性能。此外,通过在上述体系中添加高浓度 LiTFSI 盐,进一步引入了盐中聚合物策略,从而得到了 PVH/LiTFSI/LLZTO (PLL) CSE。得益于牺牲抑制剂和盐中聚合物策略的协同耦合,PLL 在 25 °C 时表现出 1.2 mS cm-1 的超高离子电导率和 5.09 V 的稳定电压,优于其他已报道的 CSE。因此,PLL 在固态锂金属电池中具有令人印象深刻的高速循环能力,在 1 C(25 °C)条件下循环 240 次后,容量保持率高达 95.4%。
