Bi3O2.5Se2: A Two-Dimensional High-Mobility Polar Semiconductor with Large Interlayer and Interfacial Charge Transfer

Abstract

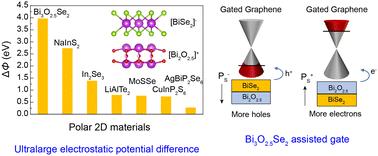

Two-dimensional semiconductors with large intrinsic polarity are highly attractive for applications in high-speed electronics, ultrafast and highly sensitive photodetectors and photocatalysis. However, previous studies mainly focus on neutral layered polar 2D materials with limited vertical dipoles and electrostatic potential difference (typically < 1.5 eV). Here, using the first-principles calculations, we systematically investigated the polarity of few-layer Bi3O2.5Se2 semiconductors with ultrahigh predicted room-temperature carrier mobility (1,790 cm2 V-1 s-1 for the monolayer). Thanks to its unique non-neutral layered structure, few-layer Bi3O2.5Se2 contributes to a substantial interlayer charge transfer (>0.5 e-) and almost the highest electrostatic potential difference (∆Ф) of ~4 eV among the experimentally attainable 2D layered materials. More importantly, positioning graphene on different charged layers ([Bi2O2.5]+ or [BiSe2]- ) switches the charge transfer direction, inducing selective n-doping or p-doping. Furthermore, we can use polar Bi3O2.5Se2 as an exemplary assisted gate to gain additional holes or electrons except for the external electric field, thus breaking the traditional limitations of gate tunability (~1014 cm-2) observed in experimental settings. Our work not only expands the family of polar 2D semiconductors, but also makes a conceptual advance on using them as the assisted gate in transistors.
