Evaluation of PTV margin in CBCT-based online adaptive radiation therapy for gastric mucosa-associated lymphoid tissue lymphoma.

IF 1.9 4区 医学 Q2 BIOLOGY Journal of Radiation Research Pub Date : 2024-07-22 DOI:10.1093/jrr/rrae052
Taka-Aki Hirose, Masanori Takaki, Yusuke Shibayama, Jun-Ichi Fukunaga, Toyoyuki Kato, Tadamasa Yoshitake, Kousei Ishigami
{"title":"Evaluation of PTV margin in CBCT-based online adaptive radiation therapy for gastric mucosa-associated lymphoid tissue lymphoma.","authors":"Taka-Aki Hirose, Masanori Takaki, Yusuke Shibayama, Jun-Ichi Fukunaga, Toyoyuki Kato, Tadamasa Yoshitake, Kousei Ishigami","doi":"10.1093/jrr/rrae052","DOIUrl":null,"url":null,"abstract":"<p><p>The aim of this study was to investigate planning target volume (PTV) margin in online adaptive radiation therapy (oART) for gastric mucosa-associated lymphoid tissue (MALT) lymphomas. Four consecutive patients with gastric MALT lymphoma who received oART (30 Gy in 15 fractions) on the oART system were included in this study. One hundred and twenty cone-beam computed tomography (CBCT) scans acquired pre- and post-treatment of 60 fractions for all patients were used to evaluate intra- and interfractional motions. Patients were instructed on breath-holding at exhalation during image acquisition. To assess the intrafraction gastric motion, different PTVs were created by isotropically extending the CTV contoured on a pre-CBCT image (CTVpre) at1 mm intervals. Intrafraction motion was defined as the amount of expansion covering the contoured CTV on post-CBCT images (CTVpost). Interfractional motion was defined as the amount of reference CTV expansion that could cover each CTVpre, as well as the evaluation of the intrafractional motion. PTV margins were estimated from the cumulative proportion of fraction covering the intra- and interfractional motions. The extent of expansion covering the CTVs in 90% of fractions was adopted as the PTV margin. The PTV margin for intrafractional gastric motion using the oART system with breath-holding was 14 mm. In contrast, the PTV margin for interfractional gastric organ motion without the oART system was 25 mm. These results indicated that the oART system can reduce the PTV margin by >10 mm. Our results could be valuable data for oART cases.</p>","PeriodicalId":16922,"journal":{"name":"Journal of Radiation Research","volume":" ","pages":"507-511"},"PeriodicalIF":1.9000,"publicationDate":"2024-07-22","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11262853/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Radiation Research","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1093/jrr/rrae052","RegionNum":4,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"BIOLOGY","Score":null,"Total":0}
引用次数: 0

Abstract

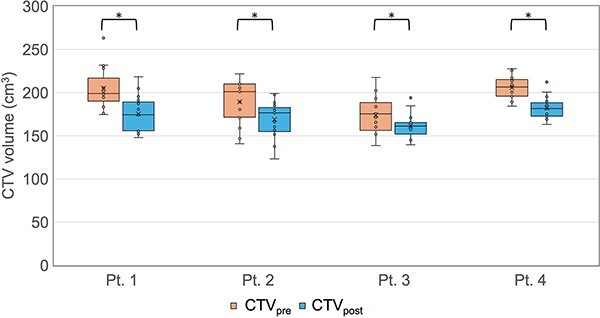

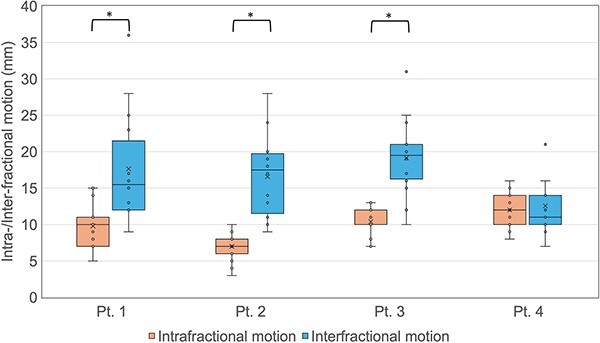

The aim of this study was to investigate planning target volume (PTV) margin in online adaptive radiation therapy (oART) for gastric mucosa-associated lymphoid tissue (MALT) lymphomas. Four consecutive patients with gastric MALT lymphoma who received oART (30 Gy in 15 fractions) on the oART system were included in this study. One hundred and twenty cone-beam computed tomography (CBCT) scans acquired pre- and post-treatment of 60 fractions for all patients were used to evaluate intra- and interfractional motions. Patients were instructed on breath-holding at exhalation during image acquisition. To assess the intrafraction gastric motion, different PTVs were created by isotropically extending the CTV contoured on a pre-CBCT image (CTVpre) at1 mm intervals. Intrafraction motion was defined as the amount of expansion covering the contoured CTV on post-CBCT images (CTVpost). Interfractional motion was defined as the amount of reference CTV expansion that could cover each CTVpre, as well as the evaluation of the intrafractional motion. PTV margins were estimated from the cumulative proportion of fraction covering the intra- and interfractional motions. The extent of expansion covering the CTVs in 90% of fractions was adopted as the PTV margin. The PTV margin for intrafractional gastric motion using the oART system with breath-holding was 14 mm. In contrast, the PTV margin for interfractional gastric organ motion without the oART system was 25 mm. These results indicated that the oART system can reduce the PTV margin by >10 mm. Our results could be valuable data for oART cases.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
基于 CBCT 的胃黏膜相关淋巴组织淋巴瘤在线自适应放疗的 PTV 边距评估。
本研究旨在探讨在线自适应放疗(oART)治疗胃黏膜相关淋巴组织(MALT)淋巴瘤的计划靶体积(PTV)余量。本研究连续纳入了四名胃粘膜相关淋巴组织(MALT)淋巴瘤患者,他们都接受了 oART 系统的 oART(30 Gy,15 次分割)治疗。所有患者在接受 60 次分次治疗前后获得的 120 张锥形束计算机断层扫描 (CBCT) 扫描图像用于评估点内和点间运动。在图像采集过程中,指导患者呼气时屏住呼吸。为评估分段内胃运动,以1毫米的间隔等向扩展CBCT前图像(CTVpre)上的CTV轮廓,创建不同的PTV。牵引内运动定义为在后 CBCT 图像(CTVpost)上覆盖轮廓 CTV 的扩张量。点间移动被定义为可覆盖每个 CTVpre 的参考 CTV 扩大量,以及对点内移动的评估。PTV边缘是根据覆盖小节内和小节间运动的小节累积比例估算的。以 90% 的分段覆盖 CTV 的扩展范围作为 PTV 边界。使用憋气的 oART 系统时,点内胃运动的 PTV 边界为 14 毫米。相比之下,不使用 oART 系统时,点间胃器官运动的 PTV 边界为 25 毫米。这些结果表明,oART 系统可将 PTV 边界减少 10 毫米以上。我们的结果可以为 oART 病例提供有价值的数据。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
