Caizhen Yue, Xiaobo Yang, Xiong Zhang, Shifu Wang, Wei Xu, Ruru Chen, Jiuyi Wang, Jie Yin, Yanqiang Huang, Xuning Li
{"title":"Secondary Coordination Sphere Engineering of Single‐Sn‐Atom catalyst via P Doping for Efficient CO2 Electroreduction","authors":"Caizhen Yue, Xiaobo Yang, Xiong Zhang, Shifu Wang, Wei Xu, Ruru Chen, Jiuyi Wang, Jie Yin, Yanqiang Huang, Xuning Li","doi":"10.1002/aenm.202401448","DOIUrl":null,"url":null,"abstract":"The regulation of the local microenvironment in the single‐atom catalysts affords a scheme for accelerating the overall reaction kinetics of electrochemical CO<jats:sub>2</jats:sub> reduction reaction (CO<jats:sub>2</jats:sub>RR), which is of vital importance but remains challenging. Herein, a carbon nanotube‐supported single‐Sn‐atom catalyst (P‐SnN<jats:sub>4</jats:sub>‐CNT) is developed by a modified pyrolysis procedure with P‐doping into the second coordination shell of SnN<jats:sub>4</jats:sub> moiety to modulate the electron structure of metal Sn center. The resulting P‐SnN<jats:sub>4</jats:sub>‐CNT delivered a high CO partial current density of −380 mA cm<jats:sup>−2</jats:sup> with Faradaic efficiency (FE) of CO above 90% across a wide range of −0.5 to −0.8 V versus reversible hydrogen electrode (vs RHE), along with optimal FE (CO) of ≈98.5% at −0.6 V versus RHE in a flow cell. Moreover, P‐SnN<jats:sub>4</jats:sub>‐CNT achieved an extremely high turnover frequency of 126 471 h<jats:sup>−1</jats:sup> with an applied potential of −0.8 V versus RHE, which ranks the best among the reported M─N─C catalysts for electrocatalytic CO<jats:sub>2</jats:sub> reduction. The combination of in situ characterization techniques and density functional theory calculation revealed that the doping of P atoms benefited the activation and hydrogenation steps of CO<jats:sub>2</jats:sub> and promoted the Sn<jats:sup>4+</jats:sup> reduction to Sn<jats:sup>2+</jats:sup> during the reaction process, where Sn<jats:sup>2+</jats:sup> is identified as the active site for the CO generation. The work provides a clear mechanistic insight for both electron structure optimization and identification of active sites by local microenvironment regulation of single‐Sn‐atom, which shall pave a way for the exploitation of other M─N─C catalysts with high CO<jats:sub>2</jats:sub>RR performance.","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":null,"pages":null},"PeriodicalIF":24.4000,"publicationDate":"2024-06-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/aenm.202401448","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0
Abstract

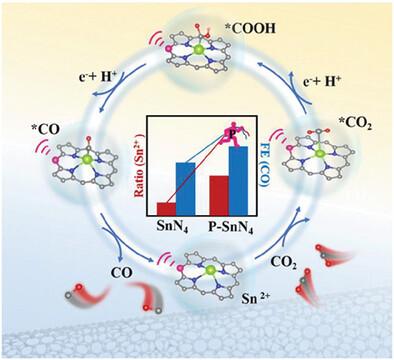

The regulation of the local microenvironment in the single‐atom catalysts affords a scheme for accelerating the overall reaction kinetics of electrochemical CO2 reduction reaction (CO2RR), which is of vital importance but remains challenging. Herein, a carbon nanotube‐supported single‐Sn‐atom catalyst (P‐SnN4‐CNT) is developed by a modified pyrolysis procedure with P‐doping into the second coordination shell of SnN4 moiety to modulate the electron structure of metal Sn center. The resulting P‐SnN4‐CNT delivered a high CO partial current density of −380 mA cm−2 with Faradaic efficiency (FE) of CO above 90% across a wide range of −0.5 to −0.8 V versus reversible hydrogen electrode (vs RHE), along with optimal FE (CO) of ≈98.5% at −0.6 V versus RHE in a flow cell. Moreover, P‐SnN4‐CNT achieved an extremely high turnover frequency of 126 471 h−1 with an applied potential of −0.8 V versus RHE, which ranks the best among the reported M─N─C catalysts for electrocatalytic CO2 reduction. The combination of in situ characterization techniques and density functional theory calculation revealed that the doping of P atoms benefited the activation and hydrogenation steps of CO2 and promoted the Sn4+ reduction to Sn2+ during the reaction process, where Sn2+ is identified as the active site for the CO generation. The work provides a clear mechanistic insight for both electron structure optimization and identification of active sites by local microenvironment regulation of single‐Sn‐atom, which shall pave a way for the exploitation of other M─N─C catalysts with high CO2RR performance.
