Study and manufacturing of strontium calcium titanate lead-free ceramic capacitors for high-frequency applications

IF 2.3 4区材料科学 Q2 MATERIALS SCIENCE, CERAMICS Journal of Sol-Gel Science and Technology Pub Date : 2024-06-17 DOI:10.1007/s10971-024-06433-6

Parthiban Palani, Amina Tachafine, Christophe Poupin, Didier Fasquelle

{"title":"Study and manufacturing of strontium calcium titanate lead-free ceramic capacitors for high-frequency applications","authors":"Parthiban Palani, Amina Tachafine, Christophe Poupin, Didier Fasquelle","doi":"10.1007/s10971-024-06433-6","DOIUrl":null,"url":null,"abstract":"SrTiO3 based lead-free ceramics has enormous potential for dielectric capacitors. This work focuses on the fabrication of small size Sr1-xCaxTiO3 (SCT) ceramic capacitors. Initially, the ceramics with a high doping concentration of 0.36 ≤ x ≤ 0.40 were prepared using the sol-gel method and characterized for their structural, morphological (grain), and dielectric properties. An increase in calcium doping concentration revealed a notable decline in the dielectric dissipation factor. Further, small size ceramic capacitors with ≈ 1mm2 dimensions were micro-machined in order to replicate the size of high-frequency commercial capacitors and to emphasize the real potential of this class of ceramics for dielectric capacitors. The dielectric properties, measured from 100 Hz to 1 GHz, such as permittivity (ε′), loss tangent (tgδ), and quality coefficient (Q) revealed that these materials could have a great interest in the development of monolithic ceramic capacitors dedicated to a very large frequency range from 100 Hz to 1 GHz applications.<h3 data-test=\"abstract-sub-heading\">Graphical Abstract</h3>","PeriodicalId":664,"journal":{"name":"Journal of Sol-Gel Science and Technology","volume":null,"pages":null},"PeriodicalIF":2.3000,"publicationDate":"2024-06-17","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Sol-Gel Science and Technology","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1007/s10971-024-06433-6","RegionNum":4,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, CERAMICS","Score":null,"Total":0}

引用次数: 0

Abstract

SrTiO₃ based lead-free ceramics has enormous potential for dielectric capacitors. This work focuses on the fabrication of small size Sr_1-xCa_xTiO₃ (SCT) ceramic capacitors. Initially, the ceramics with a high doping concentration of 0.36 ≤ x ≤ 0.40 were prepared using the sol-gel method and characterized for their structural, morphological (grain), and dielectric properties. An increase in calcium doping concentration revealed a notable decline in the dielectric dissipation factor. Further, small size ceramic capacitors with ≈ 1mm² dimensions were micro-machined in order to replicate the size of high-frequency commercial capacitors and to emphasize the real potential of this class of ceramics for dielectric capacitors. The dielectric properties, measured from 100 Hz to 1 GHz, such as permittivity (ε′), loss tangent (tgδ), and quality coefficient (Q) revealed that these materials could have a great interest in the development of monolithic ceramic capacitors dedicated to a very large frequency range from 100 Hz to 1 GHz applications.

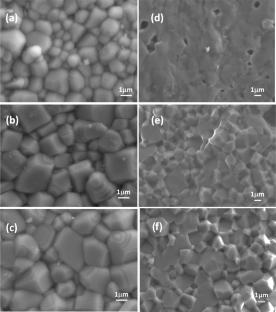

Graphical Abstract

Abstract Image
