Arrays of Bowl-Shaped Janus Particle Film with Structured Colors.

Abstract

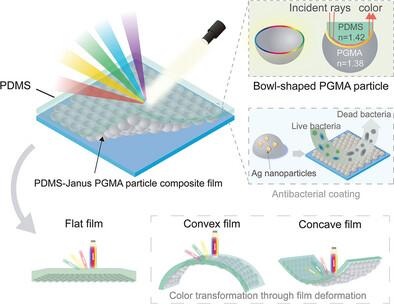

Structural colors generated via total internal reflection (TIR) using nanostructure-free micro-concave shapes have garnered increasing attention. However, the application of large micro-concave structures for structural coloration remains limited. Herein, a flexibly tunable structural color film fabricated by casting polydimethylsiloxane (PDMS) on an array of large poly(glycidyl methacrylate) (PGMA) bowl-shaped particles is reported. The resultant film exhibits tunable red to green structural colors with changing observation angles. Moreover, the color can be further tailored by altering the shape of the film itself. The incorporation of the PDMS layer not only facilitates a shift in the locus of TIR from the bottom surface to the top concave surface of the particles, thereby enabling the generation of structural color, but also confers enhanced flexibility to the film. Further decoration with silver nanoparticles imparts antimicrobial properties, yielding a novel antimicrobial coating material with structural colors. The simple and cost-effective strategy for the production of structural color films provides potential applications in antimicrobial coatings, enabling accessible and customizable structural coloration using big-size micro-concave particles.
