Dual Electron Donating Metal‐Boron Reaction Center Boosts Electrocatalytic Urea Synthesis from N2 and CO2

IF 3.8 3区 化学 Q2 CHEMISTRY, PHYSICAL ChemCatChem Pub Date : 2024-07-26 DOI:10.1002/cctc.202400304
Nuttapon Yodsin, Poobodin Mano, Kaito Takahashi, supawadee namuangruk
{"title":"Dual Electron Donating Metal‐Boron Reaction Center Boosts Electrocatalytic Urea Synthesis from N2 and CO2","authors":"Nuttapon Yodsin, Poobodin Mano, Kaito Takahashi, supawadee namuangruk","doi":"10.1002/cctc.202400304","DOIUrl":null,"url":null,"abstract":"Urea (NH2CONH2) production by electrosynthesis at mild conditions has been hampered due to the lack of systematic evaluation of pathways in effectively activating inert N2 and CO2 molecules and facilitating the formation of C‐N bonds. This work, we evaluated 16 transition metal (M) atoms anchored on a carbon nitride nanosheet with boron (B) doping (M‐B@C2N) for boosting urea production by theoretical calculations. All possible urea synthesis pathways, (i) CO2 pathway, (ii) OCOH pathway, (iii) CO pathway, and (iv) NCON pathway, were comparatively studied on Cu, Fe, Co, Ni‐B@C2N. This systematic calculation identified that the first reduction of *N2 is the key step for urea synthesis. We found that the bond index of *N2 shows a strong correlation with ΔG*N2®*NNH, so they are promising descriptors for screening. Through the screening, we found that Nb‐ and Mo‐B@C2N show a low limiting potential of ‐0.56 and ‐0.53 V. Although previous studies found that spin could promote C‐C bond formation on M‐B@C2N, we found that for C‐N coupling, such effects by spin were only active for Nb‐B@C2N. Combining boron and early transition metal atoms allows for neighboring reaction sites that simultaneously donate electrons to activate inert N2 and CO2 for efficient urea synthesis.","PeriodicalId":141,"journal":{"name":"ChemCatChem","volume":null,"pages":null},"PeriodicalIF":3.8000,"publicationDate":"2024-07-26","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ChemCatChem","FirstCategoryId":"92","ListUrlMain":"https://doi.org/10.1002/cctc.202400304","RegionNum":3,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

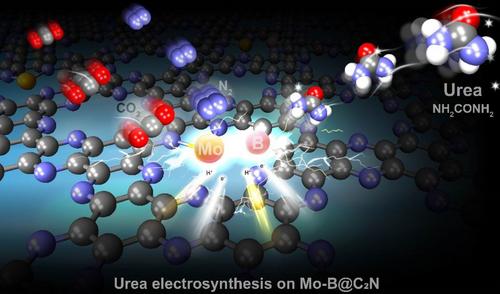

Urea (NH2CONH2) production by electrosynthesis at mild conditions has been hampered due to the lack of systematic evaluation of pathways in effectively activating inert N2 and CO2 molecules and facilitating the formation of C‐N bonds. This work, we evaluated 16 transition metal (M) atoms anchored on a carbon nitride nanosheet with boron (B) doping (M‐B@C2N) for boosting urea production by theoretical calculations. All possible urea synthesis pathways, (i) CO2 pathway, (ii) OCOH pathway, (iii) CO pathway, and (iv) NCON pathway, were comparatively studied on Cu, Fe, Co, Ni‐B@C2N. This systematic calculation identified that the first reduction of *N2 is the key step for urea synthesis. We found that the bond index of *N2 shows a strong correlation with ΔG*N2®*NNH, so they are promising descriptors for screening. Through the screening, we found that Nb‐ and Mo‐B@C2N show a low limiting potential of ‐0.56 and ‐0.53 V. Although previous studies found that spin could promote C‐C bond formation on M‐B@C2N, we found that for C‐N coupling, such effects by spin were only active for Nb‐B@C2N. Combining boron and early transition metal atoms allows for neighboring reaction sites that simultaneously donate electrons to activate inert N2 and CO2 for efficient urea synthesis.
查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
双电子捐献金属-硼反应中心促进 N2 和 CO2 的电催化尿素合成
由于缺乏对有效激活惰性 N2 和 CO2 分子并促进 C-N 键形成的途径的系统评估,在温和条件下通过电合成生产尿素(NH2CONH2)的过程一直受到阻碍。在这项工作中,我们通过理论计算评估了 16 个过渡金属(M)原子锚定在掺杂硼(B)的氮化碳纳米片(M-B@CN)上以促进尿素生产的情况。在 Cu、Fe、Co、Ni-B@CN 上比较研究了所有可能的尿素合成途径:(i) CO2 途径;(ii) OCOH 途径;(iii) CO 途径;(iv) NCON 途径。通过系统计算发现,*N2 的第一次还原是尿素合成的关键步骤。我们发现 *N2 的键指数与 ΔG*N2®*NNH 具有很强的相关性,因此它们是很有潜力的筛选描述因子。通过筛选,我们发现 Nb-B@C2N 和 Mo-B@C2N 显示出-0.56 V 和 -0.53 V 的低极限电位。虽然之前的研究发现自旋可以促进 M-B@C2N 上 C-C 键的形成,但我们发现对于 C-N 耦合,自旋的这种效应只对 Nb-B@C2N 活跃。将硼原子和早期过渡金属原子结合在一起,可使邻近的反应位点同时提供电子以激活惰性 N2 和 CO2,从而实现高效的尿素合成。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
