The role of protective liners and glass ionomer in managing pulp temperature during light curing.

Abstract

Background: To evaluate the thermal insulation of protective liners and glass ionomer cement during light-curing procedures.

Material and methods: Human third molars underwent Class I preparations with dimensions 5 mm long × 4 mm wide × 4 mm deep in a standardized manner ensured a consistent ±0.5 mm dentin thickness at the pulpal floor. The teeth were attached to a customized oral cavity chamber simulator with a circulating bath at a standardized temperature of 34.2 ± 1oC. The temperature variations at the pulpal floor were captured in real-time by video using an infrared thermal camera (FLIR ONE Pro, FLIR Systems). The materials evaluated were: Dycal (Dentsply), TheraCal LC (Bisco), Activa (Pulpdent), and Fuji II LC (GC). All light-activation procedures were performed with the same light-curing unit (Valo Grand, Ultradent) in standard mode, 1000 mW/cm2, and time of exposure following manufacturer instructions. A power analysis was conducted to determine the sample size considering a minimal power of 0.8, with α=0.05. Statistical analyses were performed using ANOVA and Tukey's test for multiple comparisons.

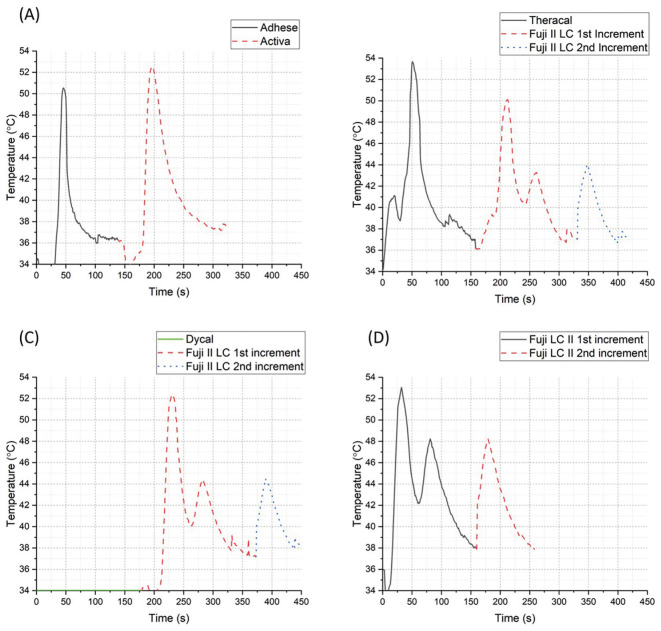

Results: The temperature at the pulpal floor increased above the 5.5 ºC safety threshold difference for clinical scenarios tested. None of the materials provided proper thermal insulation for light-curing procedures (p = 0.25). The higher the number of light-cured steps, the longer the pulp remained above the 5.5 ºC temperature threshold.

Conclusions: The materials tested provided improper thermal insulation (Δ > 5.5 ºC). Thus, prolonged or multiple light-curing exposures can be harmful to the pulp tissues. Therefore, for indirect pulpal capping procedures, self-cured materials or a reduced number of steps requiring light curing must be adopted to reduce the amount of time the pulp remains above the 5.5 ºC safety temperature threshold. Key words:Dental Pulp Capping, Calcium hydroxide, Bioactive, Thermal Damage.
