Abstract

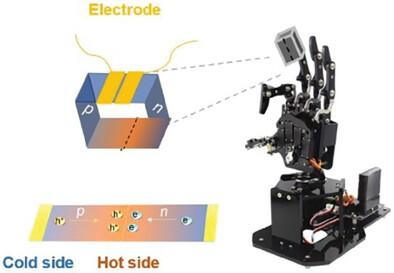

Human body temperature is a critical physiological indicator, reflecting metabolism and temperature regulation. Biomimetic temperature sensors with high temporal and spatial resolution are highly desired to emulate human skin's temperature perception capabilities. Here, a selective filtration method is proposed to fabricate a jointless p-n thermoelectric module, integrating p-type and n-type materials with minimal interfacial barriers. The structure enables rapid response, minimal signal variation, and a robust linear relationship between open circuit voltage and temperature difference, making it suitable as a biomimetic thermoreceptor for enhancing humanoid robots with intelligent sensing capabilities. A smart thermoelectric sensing system with a high temporal and spatial resolution is developed using with jointless p-n module as the sensing element. In temporal thermal sensing, the sensing system can timely and effectively identify the heat source, with a fast response time of <0.1 s. In addition, in spatial thermal sensing, the system reliably detects thermal stimuli within discrete regions of each measuring area of <1 × 1 cm2. This study provides an effective strategy for temperature sensors in thermoelectric sensing and biomimetic thermoreceptor applications.
