Lei Zhang, Jiangxiong Wang, Mingpan Wan, Chaowen Huang, Min Lei, Rui Ma, Dan Liu, Xianli Ren, Tianxin Li
{"title":"Effect of Annealing Temperature on the Strength and Toughness of Ti-55531 Titanium Alloy After Multiple Heat Treatment","authors":"Lei Zhang, Jiangxiong Wang, Mingpan Wan, Chaowen Huang, Min Lei, Rui Ma, Dan Liu, Xianli Ren, Tianxin Li","doi":"10.1002/adem.202400953","DOIUrl":null,"url":null,"abstract":"Herein, it is aimed to reveal the effect of annealing temperature on α microstructure parameters and mechanical properties of Ti-55531 alloy under the multiple heat-treatment process of “solution (855 °C) + annealing (700, 730, 760 °C) + aging (600 °C).” The microstructure is characterized by using optical microscopy, scanning electron microscopy, and transmission electron microscope. In the results, it is indicated that the annealing temperature does not change the volume fraction of the α<sub>s</sub> phase of Ti-55531 alloy. The as-annealed precipitation-free zone α<sub>s</sub> phase renucleates after aging treatment, resulting in a bimodal distribution of α<sub>s</sub> phase in the matrix. The higher the annealing temperature, the larger the average size of α<sub>s</sub> phase and the greater the heterogeneity in the alloy. Additionally, the heterogeneity of α<sub>s</sub> phase affects further the plasticity and the crack propagation path of the alloy. With the increase of annealing temperature, the strength of Ti-55531 alloy decreases slowly, but the elongation and the impact toughness of the alloy increases rapidly resulting from the heterogeneity of α<sub>s</sub> phase under multiple heat-treatment conditions.","PeriodicalId":7275,"journal":{"name":"Advanced Engineering Materials","volume":null,"pages":null},"PeriodicalIF":3.4000,"publicationDate":"2024-09-19","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Engineering Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adem.202400953","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"MATERIALS SCIENCE, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

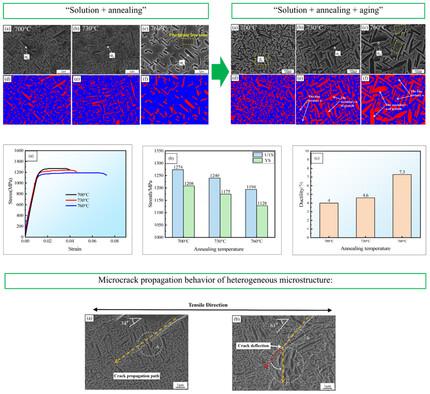

Abstract
Herein, it is aimed to reveal the effect of annealing temperature on α microstructure parameters and mechanical properties of Ti-55531 alloy under the multiple heat-treatment process of “solution (855 °C) + annealing (700, 730, 760 °C) + aging (600 °C).” The microstructure is characterized by using optical microscopy, scanning electron microscopy, and transmission electron microscope. In the results, it is indicated that the annealing temperature does not change the volume fraction of the αs phase of Ti-55531 alloy. The as-annealed precipitation-free zone αs phase renucleates after aging treatment, resulting in a bimodal distribution of αs phase in the matrix. The higher the annealing temperature, the larger the average size of αs phase and the greater the heterogeneity in the alloy. Additionally, the heterogeneity of αs phase affects further the plasticity and the crack propagation path of the alloy. With the increase of annealing temperature, the strength of Ti-55531 alloy decreases slowly, but the elongation and the impact toughness of the alloy increases rapidly resulting from the heterogeneity of αs phase under multiple heat-treatment conditions.
