Assessment of abnormal transvalvular flow and wall shear stress direction for pediatric/young adults with bicuspid aortic valve: a cross-sectional 4D flow study.
Takashi Fujiwara, LaDonna J Malone, Kathryn C Chatfield, Alex Berthusen, Brian Fonseca, Lorna P Browne, Alex J Barker
{"title":"Assessment of abnormal transvalvular flow and wall shear stress direction for pediatric/young adults with bicuspid aortic valve: a cross-sectional 4D flow study.","authors":"Takashi Fujiwara, LaDonna J Malone, Kathryn C Chatfield, Alex Berthusen, Brian Fonseca, Lorna P Browne, Alex J Barker","doi":"10.1016/j.jocmr.2024.101102","DOIUrl":null,"url":null,"abstract":"<p><strong>Background: </strong>Aortic dilation is seen in pediatric/young adult patients with bicuspid aortic valve (BAV), and hemodynamic markers to predict aortic dilation are necessary for monitoring. Although promising hemodynamic metrics, such as abnormal wall shear stress (WSS) magnitude, have been proposed for adult BAV patients using 4D flow cardiovascular magnetic resonance, those for pediatric BAV patients have less frequently been reported, partly due to scarcity of data to define normal WSS range. To circumvent this challenge, this study aims to investigate if a recently proposed 4D flow-based hemodynamic measurement, abnormal flow directionality, is associated with aortic dilation in pediatric/young adult BAV patients.</p><p><strong>Methods: </strong>4D flow scans for BAV patients (<20 years old) and age-matched controls were retrospectively enrolled. Static segmentation for the aorta and pulmonary arteries was obtained to quantify peak systolic hemodynamics and diameters in the proximal aorta. In addition to peak velocity, wall shear stress (WSS), vorticity, helicity, and viscous energy loss, direction of aortic velocity and WSS in BAV patients was compared with that of control atlas using registration technique; angle differences of >60deg and >120deg were defined as moderately and severely abnormal, respectively. Association between the obtained metrics and normalized diameters (Z-scores) were evaluated at the sinotubular junction, mid ascending aorta, and distal ascending aorta.</p><p><strong>Results: </strong>Fifty-three BAV patients, including eighteen with history of repaired aortic coarctation, and seventeen controls were enrolled. Correlation between moderately abnormal velocity/WSS direction and aortic Z-scores was moderate to strong at the sinotubular junction and mid ascending aorta (R=0.62-0.81; p<0.001) while conventional measurements exhibited weaker correlation (|R|=0.003-0.47, p=0.009-0.99) in all subdomains. Multivariable regression analysis found moderately abnormal velocity direction and existence of aortic regurgitation (only for isolated BAV group) were independently associated with mid ascending aortic Z-scores.</p><p><strong>Conclusion: </strong>Abnormal velocity and WSS directionality in the proximal aorta was strongly associated with aortic Z-scores in pediatric/young adult BAV patients.</p>","PeriodicalId":15221,"journal":{"name":"Journal of Cardiovascular Magnetic Resonance","volume":" ","pages":"101102"},"PeriodicalIF":4.2000,"publicationDate":"2024-09-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Journal of Cardiovascular Magnetic Resonance","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1016/j.jocmr.2024.101102","RegionNum":1,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CARDIAC & CARDIOVASCULAR SYSTEMS","Score":null,"Total":0}
引用次数: 0
Abstract
Background: Aortic dilation is seen in pediatric/young adult patients with bicuspid aortic valve (BAV), and hemodynamic markers to predict aortic dilation are necessary for monitoring. Although promising hemodynamic metrics, such as abnormal wall shear stress (WSS) magnitude, have been proposed for adult BAV patients using 4D flow cardiovascular magnetic resonance, those for pediatric BAV patients have less frequently been reported, partly due to scarcity of data to define normal WSS range. To circumvent this challenge, this study aims to investigate if a recently proposed 4D flow-based hemodynamic measurement, abnormal flow directionality, is associated with aortic dilation in pediatric/young adult BAV patients.

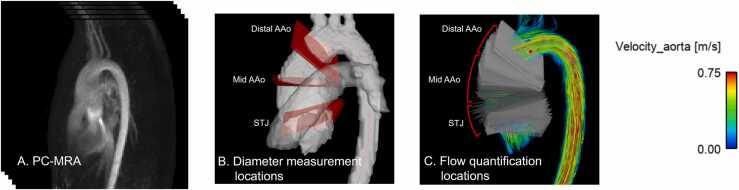

Methods: 4D flow scans for BAV patients (<20 years old) and age-matched controls were retrospectively enrolled. Static segmentation for the aorta and pulmonary arteries was obtained to quantify peak systolic hemodynamics and diameters in the proximal aorta. In addition to peak velocity, wall shear stress (WSS), vorticity, helicity, and viscous energy loss, direction of aortic velocity and WSS in BAV patients was compared with that of control atlas using registration technique; angle differences of >60deg and >120deg were defined as moderately and severely abnormal, respectively. Association between the obtained metrics and normalized diameters (Z-scores) were evaluated at the sinotubular junction, mid ascending aorta, and distal ascending aorta.
Results: Fifty-three BAV patients, including eighteen with history of repaired aortic coarctation, and seventeen controls were enrolled. Correlation between moderately abnormal velocity/WSS direction and aortic Z-scores was moderate to strong at the sinotubular junction and mid ascending aorta (R=0.62-0.81; p<0.001) while conventional measurements exhibited weaker correlation (|R|=0.003-0.47, p=0.009-0.99) in all subdomains. Multivariable regression analysis found moderately abnormal velocity direction and existence of aortic regurgitation (only for isolated BAV group) were independently associated with mid ascending aortic Z-scores.
Conclusion: Abnormal velocity and WSS directionality in the proximal aorta was strongly associated with aortic Z-scores in pediatric/young adult BAV patients.
