{"title":"Simulation of special-shaped graded particulate hydraulic transport in deep-sea mining scenarios","authors":"","doi":"10.1016/j.powtec.2024.120344","DOIUrl":null,"url":null,"abstract":"<div><div>Hydrodynamic transport is crucial in deep-sea mining engineering for conveying materials. This study investigates the impact of various particle shapes on slurry transport efficiency and flow characteristics at higher concentrations. A numerical method combining computational fluid dynamics (CFD) and the discrete element method (DEM) within the Euler-Lagrange framework is employed to simulate the flow and hydrodynamic properties of graded heterogeneous coarse particles in a deep-sea hydraulic lift pipe. The reliability of the simulations is verified through comparisons, focusing on feed concentration and particle gradation effects on dynamic characteristics and flow patterns. The study quantitatively analyzes concentration distributions under various flow regimes for different particle shapes and conveying concentrations in a vertical pipeline system. Flow characteristics under clogging conditions are described, considering flow transition and concentration distribution. Additionally, conditions for stable transportation are discussed concerning particle forces and transport reliability.</div></div>","PeriodicalId":407,"journal":{"name":"Powder Technology","volume":null,"pages":null},"PeriodicalIF":4.5000,"publicationDate":"2024-10-05","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Powder Technology","FirstCategoryId":"5","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0032591024009884","RegionNum":2,"RegionCategory":"工程技术","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"ENGINEERING, CHEMICAL","Score":null,"Total":0}
引用次数: 0
Abstract

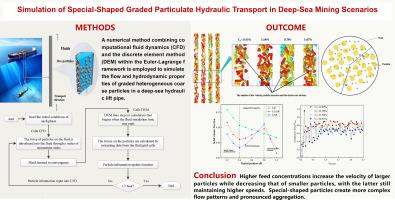

Hydrodynamic transport is crucial in deep-sea mining engineering for conveying materials. This study investigates the impact of various particle shapes on slurry transport efficiency and flow characteristics at higher concentrations. A numerical method combining computational fluid dynamics (CFD) and the discrete element method (DEM) within the Euler-Lagrange framework is employed to simulate the flow and hydrodynamic properties of graded heterogeneous coarse particles in a deep-sea hydraulic lift pipe. The reliability of the simulations is verified through comparisons, focusing on feed concentration and particle gradation effects on dynamic characteristics and flow patterns. The study quantitatively analyzes concentration distributions under various flow regimes for different particle shapes and conveying concentrations in a vertical pipeline system. Flow characteristics under clogging conditions are described, considering flow transition and concentration distribution. Additionally, conditions for stable transportation are discussed concerning particle forces and transport reliability.
