Synergistic Reduction and Oxidation Resistant Interface Modifier for High-Voltage and High-Loading Solid-State Lithium Batteries

IF 26 1区 材料科学 Q1 CHEMISTRY, PHYSICAL Advanced Energy Materials Pub Date : 2024-10-16 DOI:10.1002/aenm.202403585
Jiaxin Wu, Zichang You, Meng Li, Huan Chen, Sheng Feng, Lingchen Wang, Huihui Yuan, Jun Jin, Yan Lu, Zhaoyin Wen
{"title":"Synergistic Reduction and Oxidation Resistant Interface Modifier for High-Voltage and High-Loading Solid-State Lithium Batteries","authors":"Jiaxin Wu,&nbsp;Zichang You,&nbsp;Meng Li,&nbsp;Huan Chen,&nbsp;Sheng Feng,&nbsp;Lingchen Wang,&nbsp;Huihui Yuan,&nbsp;Jun Jin,&nbsp;Yan Lu,&nbsp;Zhaoyin Wen","doi":"10.1002/aenm.202403585","DOIUrl":null,"url":null,"abstract":"<p>Solid-state batteries (SSBs) with high-voltage cathodes and Li-anodes offer promising energy density and safety for next-generation batteries. However, poor contact and electrochemical instability of solid electrolyte interfaces hinder their long-term performance. Traditional rigid solidification interlayers possess restricted capability to address these issues. Herein, a composite buffer interlayer (CBI) with localized high-concentration electrolytes (LHCEs) in a flexible polymer scaffold, tackling contact and stability problems and ensuring a perfect interface is developed. The extended electrochemical window provides it with synergistic antioxidation and antireduction capabilities, making it compatible with high-voltage cathodes and Li anodes, while an in situ formed LiF-Li<sub>3</sub>N rich inorganic interface ensures uniform lithium deposition and prevents dendrite formation. This CBI enables lithium symmetric cells to achieve a super high critical current density of 7.2 mA cm<sup>−2</sup>. Most impressively, coupled with a high-voltage LiNi<sub>0.83</sub>Co<sub>0.12</sub>Mn<sub>0.05</sub>O<sub>2</sub> cathode (NCM83), the full cell achieves 94.1% capacity retention after 125 cycles (coulombic efficiency &gt;99.8%) at a mass loading of 14.6 mg cm<sup>−2</sup> and a high voltage of 4.45 V. Additionally, a pouch cell with 17.2 mg cm<sup>−2</sup> NCM83 achieves an initial discharge capacity of 3.82 mAh cm<sup>−2</sup> an superior cycling stability (75 cycles, 89% capacity retention), showcasing the practical potential of LHCE-CBI enabled SSBs.</p>","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"15 9","pages":""},"PeriodicalIF":26.0000,"publicationDate":"2024-10-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202403585","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

Solid-state batteries (SSBs) with high-voltage cathodes and Li-anodes offer promising energy density and safety for next-generation batteries. However, poor contact and electrochemical instability of solid electrolyte interfaces hinder their long-term performance. Traditional rigid solidification interlayers possess restricted capability to address these issues. Herein, a composite buffer interlayer (CBI) with localized high-concentration electrolytes (LHCEs) in a flexible polymer scaffold, tackling contact and stability problems and ensuring a perfect interface is developed. The extended electrochemical window provides it with synergistic antioxidation and antireduction capabilities, making it compatible with high-voltage cathodes and Li anodes, while an in situ formed LiF-Li3N rich inorganic interface ensures uniform lithium deposition and prevents dendrite formation. This CBI enables lithium symmetric cells to achieve a super high critical current density of 7.2 mA cm−2. Most impressively, coupled with a high-voltage LiNi0.83Co0.12Mn0.05O2 cathode (NCM83), the full cell achieves 94.1% capacity retention after 125 cycles (coulombic efficiency >99.8%) at a mass loading of 14.6 mg cm−2 and a high voltage of 4.45 V. Additionally, a pouch cell with 17.2 mg cm−2 NCM83 achieves an initial discharge capacity of 3.82 mAh cm−2 an superior cycling stability (75 cycles, 89% capacity retention), showcasing the practical potential of LHCE-CBI enabled SSBs.

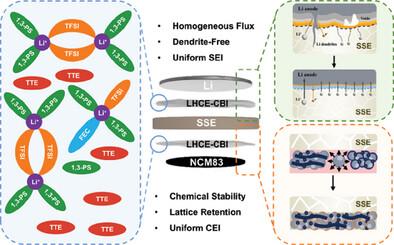

Abstract Image

Abstract Image

Abstract Image

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
用于高电压和高负载固态锂电池的协同抗还原和抗氧化界面改性剂
具有高电压阴极和锂阳极的固态电池(SSB)为下一代电池提供了良好的能量密度和安全性。然而,固体电解质界面的接触不良和电化学不稳定性阻碍了它们的长期性能。传统的刚性固化中间膜在解决这些问题方面能力有限。在此,我们开发了一种复合缓冲中间膜(CBI),在柔性聚合物支架中加入局部高浓度电解质(LHCEs),解决了接触和稳定性问题,确保了完美的界面。扩展的电化学窗口为其提供了协同抗氧化和抗还原能力,使其与高压阴极和锂阳极兼容,而原位形成的富含 LiF-Li3N 的无机界面则确保了锂的均匀沉积,并防止了枝晶的形成。这种 CBI 可使锂对称电池达到 7.2 mA cm-2 的超高临界电流密度。最令人印象深刻的是,与高电压 LiNi0.83Co0.12Mn0.05O2 正极 (NCM83) 相结合,全电池在 125 次循环后实现了 94.1% 的容量保持率(库仑效率 >99.8%),质量负载为 14.6 mg cm-2,高电压为 4.45 V。此外,含有 17.2 毫克厘米-2 NCM83 的袋装电池实现了 3.82 毫安时厘米-2 的初始放电容量和卓越的循环稳定性(75 个循环,89% 的容量保持率),展示了支持 LHCE-CBI 的固态电池的实用潜力。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
