Antioxidant Sulfide-Linked Polymer Membrane with Inherent Microporosity Enables Fuel Cells to Achieve Outstanding Power Density and Durability Over a Wide Temperature Range
Binghui Liu, Qian Liu, Yang Pang, Yuting Duan, Chengji Zhao
{"title":"Antioxidant Sulfide-Linked Polymer Membrane with Inherent Microporosity Enables Fuel Cells to Achieve Outstanding Power Density and Durability Over a Wide Temperature Range","authors":"Binghui Liu, Qian Liu, Yang Pang, Yuting Duan, Chengji Zhao","doi":"10.1002/adfm.202408291","DOIUrl":null,"url":null,"abstract":"Conventional phosphoric acid (PA) doped polybenzimidazole are regarded as the most promising materials for high-temperature proton exchange membrane fuel cells (HT-PEMFCs). Yet, their practical application has been hindered by their high production cost, poor oxidation stability, and loss of PA at low temperatures. Here, a polymer of intrinsic microporosity containing “sulfide-linkage” radical-sacrificial-agent is designed with good solubility and high PA retention, which enables it to operate for long periods at 80–180 °C. Specifically, the “sulfide-linkage” radical-sacrificial-agent enabled PSBI-IM to be durable for 100 h with mass retention still higher than 90%, and the capillary effect of the micropores enabled PSBI-IM/PA to retain more than 60% of PA under high humidity. After rational optimization, the cell assembled with PSBI-IM/PA achieved a power density of 1.62 W cm<sup>−2</sup> with a specific power of 2.7 W mg<sup>−1</sup> and an operating time of more than 500 h (0.2/0.4 A cm<sup>−2</sup>@160 °C). In addition, the voltage drop is only 5% even after 40 h of accelerated stress testing at 0.4 A cm<sup>−2</sup>@ 80 °C. Therefore, the PSBI-IM/PA can be stabilized over a wide temperature range from 80 to 160 °C, providing a new material for the HT-PEMFCs with flexible operational temperature.","PeriodicalId":112,"journal":{"name":"Advanced Functional Materials","volume":null,"pages":null},"PeriodicalIF":18.5000,"publicationDate":"2024-10-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Functional Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adfm.202408291","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0
Abstract

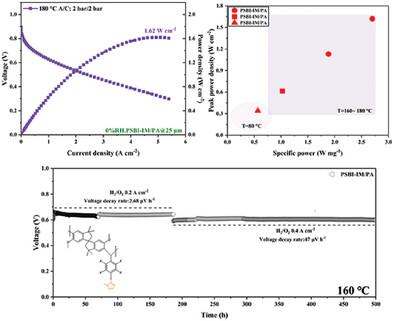

Conventional phosphoric acid (PA) doped polybenzimidazole are regarded as the most promising materials for high-temperature proton exchange membrane fuel cells (HT-PEMFCs). Yet, their practical application has been hindered by their high production cost, poor oxidation stability, and loss of PA at low temperatures. Here, a polymer of intrinsic microporosity containing “sulfide-linkage” radical-sacrificial-agent is designed with good solubility and high PA retention, which enables it to operate for long periods at 80–180 °C. Specifically, the “sulfide-linkage” radical-sacrificial-agent enabled PSBI-IM to be durable for 100 h with mass retention still higher than 90%, and the capillary effect of the micropores enabled PSBI-IM/PA to retain more than 60% of PA under high humidity. After rational optimization, the cell assembled with PSBI-IM/PA achieved a power density of 1.62 W cm−2 with a specific power of 2.7 W mg−1 and an operating time of more than 500 h (0.2/0.4 A cm−2@160 °C). In addition, the voltage drop is only 5% even after 40 h of accelerated stress testing at 0.4 A cm−2@ 80 °C. Therefore, the PSBI-IM/PA can be stabilized over a wide temperature range from 80 to 160 °C, providing a new material for the HT-PEMFCs with flexible operational temperature.
