Fabrication and Characterization of Co-Sensitized Dye Solar Cells Using Energy Transfer from Spiropyran Derivatives to SQ2 Dye.

Abstract

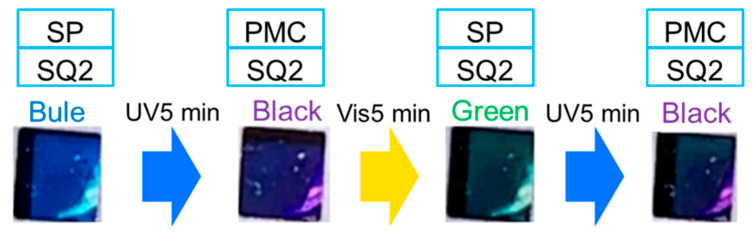

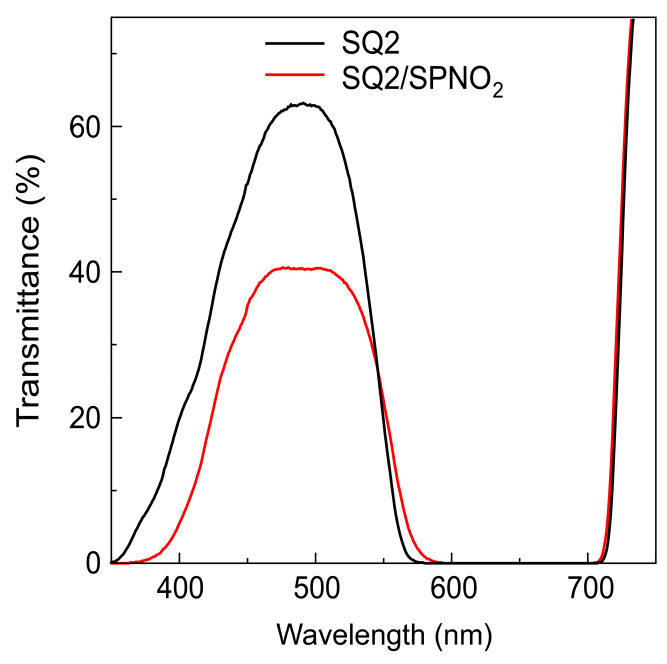

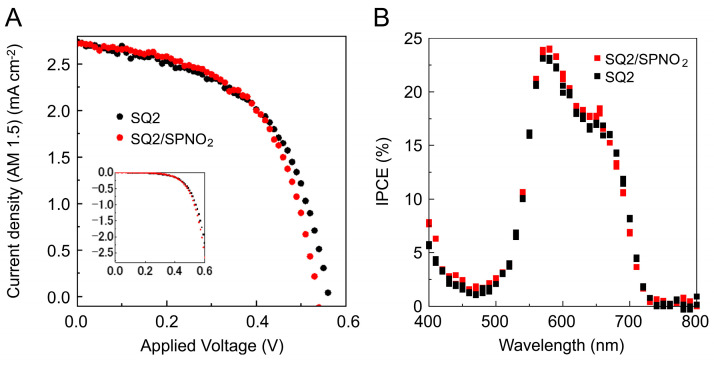

We developed dye-sensitized solar cells (DSSCs) using 1,5-carboxy-2-[[3-[(2,3-dihydro-1,1-dimethyl-3-ethyl-1H-benzo[e]indol-2-ylidene)methyl]-2-hydroxy-4-oxo-2-cyclobuten-1-ylidene]methyl]-3,3-dimethyl-1-octyl-3H-indolium and 1,3,3-trimethyl indolino-6'-nitrobenzopyrylospiran. The DSSCs incorporate photochromic molecules to regulate photoelectric conversion properties. We irradiated photoelectrodes adsorbed with SQ2/SPNO₂ using both UV and visible light and observed the color changes in these photoelectrodes. Following UV irradiation, the transmittance at 540 nm decreased by 20%, while it increased by 15% after visible light irradiation. This indicates that SPNO₂ on the DSSCs is photoisomerized from the spiropyran form (SP) to the photomerocyanine (PMC) form under UV light. The photoelectric conversion efficiency (η) of the DSSCs increased by 0.15% following 5 min of UV irradiation and decreased by 0.07% after 5 min of visible light irradiation. However, direct electron injection from PMC seems challenging, suggesting that the mechanism for improved photoelectric conversion in these DSSCs is likely due to Förster resonance energy transfer (FRET) from PMC to the SQ2 dye. The findings suggest that the co-sensitization of DSSCs by PMC-SQ2 and SQ2 alone, facilitated by their respective photoabsorption, results in externally responsive and co-sensitized solar cells. This study provides valuable insights into the development of advanced DSSCs with externally controllable photoelectric conversion properties via the strategic use of photochromic molecules and energy transfer mechanisms, advancing future solar energy applications.
