The MapMe Body Scales: Validity and Reliability of a Biometrically Accurate, Photorealistic Set of Child Body Size Scales.

Abstract

Background/objectives: It is vital to identify children whose weight status means that they may benefit from medical or behavioural support, but adult visual judgements of child weight status are inaccurate, and children are seldom routinely weighed and measured. Consequently, there is a need for validated visual tools for use in training, communication, and interventions relating to child weight.

Methods: This paper presents validation data for a set of innovative photo-realistic colour body size scales depicting boys and girls aged 4-5 and 10-11. Each age- and gender-specific scale consists of 7 figures based on three-dimensional (3D) scans of 388 children to accurately represent the change in body size caused by changing adiposity. To assess scale validity, 238 adult participants (105 men, 132 women, 1 non-binary individual) undertook two tasks: rating figure adiposity using a visual analogue scale and ranking figures in ascending order of adiposity (OSF Reference: gdp9j).

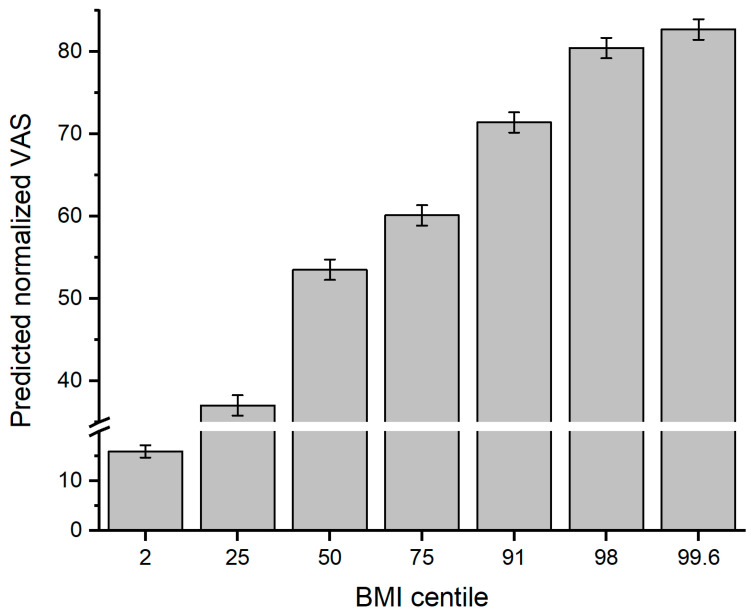

Results: Participants accurately estimated the relative adiposity of each figure, i.e., they were able to tell the difference between figures and correctly rank them by size. This demonstrates scale validity for use in body size tasks. One hundred and fifty-one participants also provided 3-day test-retest data, which demonstrates excellent short-term reliability.

Conclusions: Overall, the MapMe child body size scales provide an anthropometrically accurate, valid, reliable, and usable tool for size-related tasks and communication with adults regarding child weight.
