Pathological tissue changes in brain tumors affect the pH-sensitivity of the T1-corrected apparent exchange dependent relaxation (AREX) of the amide protons.

Abstract

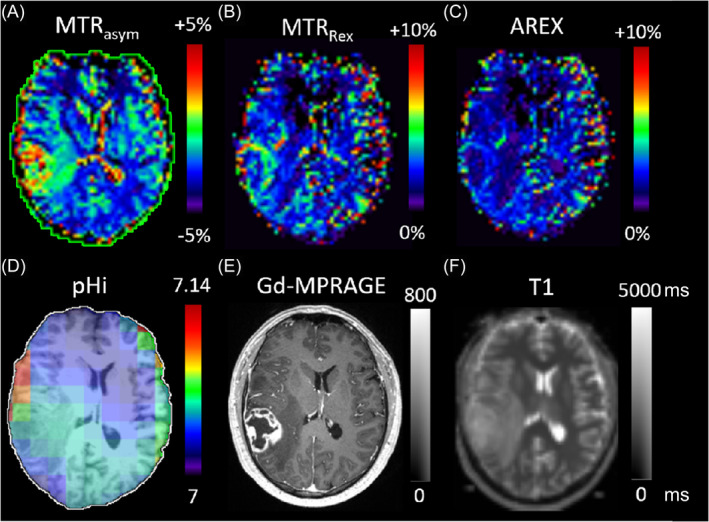

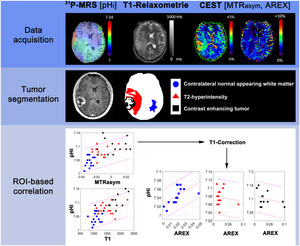

Measuring the intracellular pH (pHi) is of interest for brain tumor diagnostics. Common metrics of CEST imaging like the amide proton transfer-weighted (APTw) MTR_asym are pHi sensitive and allow differentiating malignant tumor from healthy tissue. Yet, the image contrast also depends on additional magnetization transfer effects and T1. In contrast, the apparent exchange-dependent relaxation (AREX) provides a T1 corrected exchange rate of the amide protons. As AREX still depends on amide proton density, its pHi sensitivity remains ambiguous. Hence, we conducted this study to assess the influence of pathologic tissue changes on the pHi sensitivity of AREX in vivo. Patients with newly diagnosed intra-axial brain tumors were prospectively recruited and underwent conventional MRI, quantitative T1 relaxometry, APT-CEST and ³¹P-MRS on a 3T MRI scanner. Tumors were segmented into contrast-enhancing tumor (CE), surrounding T2 hyperintensity (T2-H) and contralateral normal appearing white matter (CNAWM). T1 mapping and APT-CEST metrics were correlated with ³¹P-MRS-derived pHi maps (Pearson's correlation). Without differentiating tissue subtypes, pHi did not only correlate significantly with MTR_asym (r = 0.46) but also with T1 (r = 0.49). Conversely, AREX only correlated poorly with pHi (r = 0.17). Analyzing different tissue subtypes separately revealed a tissue dependency of the pHi sensitivity of AREX with a significant correlation (r = 0.6) in CNAWM and no correlation in T2-H or CE (r = -0.11/-0.24). CE showed significantly increased MTR_asym, pHi, and T1 compared with CNAWM (p < 0.001). In our study, the pHi sensitivity of AREX was limited to CNAWM. The lack of sensitivity in CE and T2-H is probably attributable to altered amide and water proton concentrations in these tissues. Conversely, the correlation of pHi with MTR_asym may be explained by the coincidental contrast increase through increased T1 and amide proton density. Therefore, limited structural deviations from CNAWM might be a perquisite for the use of CEST contrasts as pHi-marker.
