Terminal Fluorination Modulates Crystallinity and Aggregation of Fully Non-Fused Ring Electron Acceptors for High-Performance and Durable Near-Infrared Organic Photodetectors

IF 16.9 1区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY Angewandte Chemie International Edition Pub Date : 2024-11-06 DOI:10.1002/anie.202416751
Wenxu Liu, Wenjing Guo, Lulu Fu, Yuxin Duan, Guoxin Han, Jiaxin Gao, Huayi Liu, Yuxing Wang, Zaifei Ma, Yao Liu
{"title":"Terminal Fluorination Modulates Crystallinity and Aggregation of Fully Non-Fused Ring Electron Acceptors for High-Performance and Durable Near-Infrared Organic Photodetectors","authors":"Wenxu Liu,&nbsp;Wenjing Guo,&nbsp;Lulu Fu,&nbsp;Yuxin Duan,&nbsp;Guoxin Han,&nbsp;Jiaxin Gao,&nbsp;Huayi Liu,&nbsp;Yuxing Wang,&nbsp;Zaifei Ma,&nbsp;Yao Liu","doi":"10.1002/anie.202416751","DOIUrl":null,"url":null,"abstract":"<p>High dark current density (<i>J</i><sub>d</sub>) severely hinders further advancement of near-infrared organic photodetectors (NIR OPDs). Herein, we tackle this grand challenge by regulating molecular crystallinity and aggregation of fully non-fused ring electron acceptors (FNREAs). TBT-V-F, which features fluorinated terminals, notably demonstrates crystalline intensification and a higher prevalence predominance of J-aggregation compared to its chlorinated counterpart (TBT-V-Cl). The amalgamation of advantages confers TBT-V-F-based OPDs with lower nonradiative energy loss, improved charge transport, decreased energetic disorder, and reduced trap density. Consequently, the corresponding self-powered OPDs exhibit a 40-fold decrease in <i>J</i><sub>d</sub>, a remarkable increase in detectivity (<i>D</i>*<sub>sh</sub>), faster response time, and superior thermal stability compared to TBT-V-Cl-based OPDs. Further interfacial optimization results in an ultra-low <i>J</i><sub>d</sub> of 7.30×10<sup>-12</sup> A cm<sup>−2</sup> with <i>D</i>*<sub>sh</sub> over 10<sup>13</sup> Jones in 320–920 nm wavelength and a climax of 2.2×10<sup>14</sup> Jones at 800 nm for the TBT-V-F-based OPDs, representing one of the best results reported to date. This work paves a compelling material-based strategy to suppress <i>J</i><sub>d</sub> for highly sensitive NIR OPDs, while also illustrates the viability of FNREAs in construction of stable and affordable NIR OPDs for real-world applications.</p>","PeriodicalId":125,"journal":{"name":"Angewandte Chemie International Edition","volume":"64 4","pages":""},"PeriodicalIF":16.9000,"publicationDate":"2024-11-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Angewandte Chemie International Edition","FirstCategoryId":"92","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/anie.202416751","RegionNum":1,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

High dark current density (Jd) severely hinders further advancement of near-infrared organic photodetectors (NIR OPDs). Herein, we tackle this grand challenge by regulating molecular crystallinity and aggregation of fully non-fused ring electron acceptors (FNREAs). TBT-V-F, which features fluorinated terminals, notably demonstrates crystalline intensification and a higher prevalence predominance of J-aggregation compared to its chlorinated counterpart (TBT-V-Cl). The amalgamation of advantages confers TBT-V-F-based OPDs with lower nonradiative energy loss, improved charge transport, decreased energetic disorder, and reduced trap density. Consequently, the corresponding self-powered OPDs exhibit a 40-fold decrease in Jd, a remarkable increase in detectivity (D*sh), faster response time, and superior thermal stability compared to TBT-V-Cl-based OPDs. Further interfacial optimization results in an ultra-low Jd of 7.30×10-12 A cm−2 with D*sh over 1013 Jones in 320–920 nm wavelength and a climax of 2.2×1014 Jones at 800 nm for the TBT-V-F-based OPDs, representing one of the best results reported to date. This work paves a compelling material-based strategy to suppress Jd for highly sensitive NIR OPDs, while also illustrates the viability of FNREAs in construction of stable and affordable NIR OPDs for real-world applications.

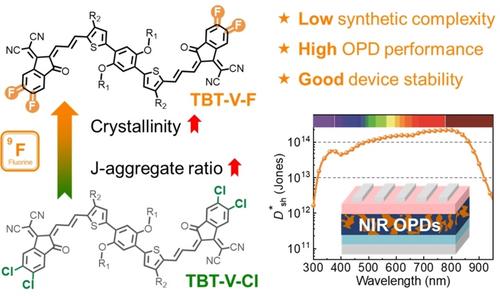

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
末端氟化调节完全无熔环电子受体的结晶度和聚集,以实现高性能和耐用的近红外有机光电探测器。
高暗电流密度(Jd)严重阻碍了近红外有机光电探测器(NIR OPD)的进一步发展。在此,我们通过调节完全非融合环电子受体(FNREAs)的分子结晶度和聚集来应对这一巨大挑战。与电子受体末端卤化的普遍趋势相反,以氟化末端为特征的 TBT-V-F 与氯化的对应物(TBT-V-Cl)相比,结晶明显增强,J-聚合体的比例更高。这些优点使基于 TBT-V-F 的 OPD 具有更有序的活性层形态和更密集的分子堆积,从而改善了电荷传输,减少了能量无序,降低了陷阱密度。因此,与基于 TBT-V-Cl 的 OPD 相比,相应的自供电 OPD 的 Jd 降低了 40 倍,检测率(D*sh)显著提高,响应时间更快,热稳定性更好。通过进一步的界面优化,基于 TBT-V-F 的 OPD 在 320-920 纳米波长范围内实现了 7.30´10-12 A cm-2 的超低 Jd 值,D*sh 超过 1013 琼斯,在 800 纳米波长范围内达到 2.2´1014 琼斯的峰值,是迄今为止报告的最佳结果之一。这项工作为抑制高灵敏度近红外 OPD 的 Jd 铺平了道路,同时也说明了 FNREAs 在为实际应用构建稳定且经济实惠的近红外 OPD 方面的可行性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
