Autonomous self-healing and superior tough polyurethane elastomers enabled by strong and highly dynamic hard domains.

IF 12.2 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Materials Horizons Pub Date : 2024-11-06 DOI:10.1039/d4mh01129e
Hao Jiang, Tong Yan, Meng Cheng, Zhihao Zhao, Tinglei He, Zhikun Wang, Chunling Li, Shuangqing Sun, Songqing Hu
{"title":"Autonomous self-healing and superior tough polyurethane elastomers enabled by strong and highly dynamic hard domains.","authors":"Hao Jiang, Tong Yan, Meng Cheng, Zhihao Zhao, Tinglei He, Zhikun Wang, Chunling Li, Shuangqing Sun, Songqing Hu","doi":"10.1039/d4mh01129e","DOIUrl":null,"url":null,"abstract":"<p><p>Self-healing materials show exceptional application potential for their high stability and longevity. However, a great challenge of the application of self-healing materials is the tradeoff between mechanical robustness and room temperature self-healing. In order to address this tradeoff, inspired by the characteristic that small molecules of living organisms self-assemble into large protein molecules by non-covalent interactions, we constructed polyurethane with highly dynamic and strong hard domains composed of dense hydrogen bonds and π-π interactions between the phenylurea groups at the end of the side chain. The prepared elastomer (PU-HU<sub>2</sub>-60) exhibits exceptional tensile performance (tensile strength is 18.27 MPa and ultimate elongation is 904.6%) and crack tolerance (fracture energy is 57.78 kJ m<sup>-2</sup>), surpassing those of most room temperature self-healing materials. After being damaged, the dynamic change process of hydrogen bonds and π-π interactions enables the elastomer to show a high self-healing efficiency of 92.15% at room temperature. Using molecular dynamics (MD) simulations and experiments, we verified that hydrogen bonds and π-π interactions promote the formation of hard domains and the autonomous self-healing of elastomers. The prepared elastomers can also be recycled and they showed ultra-high and restorable adhesion between metals. This work demonstrates a new strategy to balance the mechanical and self-healing properties of elastomers to expand their practical applications such as metal adhesives.</p>","PeriodicalId":87,"journal":{"name":"Materials Horizons","volume":" ","pages":""},"PeriodicalIF":12.2000,"publicationDate":"2024-11-06","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Materials Horizons","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1039/d4mh01129e","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

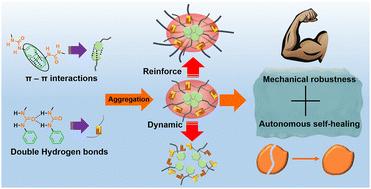

Self-healing materials show exceptional application potential for their high stability and longevity. However, a great challenge of the application of self-healing materials is the tradeoff between mechanical robustness and room temperature self-healing. In order to address this tradeoff, inspired by the characteristic that small molecules of living organisms self-assemble into large protein molecules by non-covalent interactions, we constructed polyurethane with highly dynamic and strong hard domains composed of dense hydrogen bonds and π-π interactions between the phenylurea groups at the end of the side chain. The prepared elastomer (PU-HU2-60) exhibits exceptional tensile performance (tensile strength is 18.27 MPa and ultimate elongation is 904.6%) and crack tolerance (fracture energy is 57.78 kJ m-2), surpassing those of most room temperature self-healing materials. After being damaged, the dynamic change process of hydrogen bonds and π-π interactions enables the elastomer to show a high self-healing efficiency of 92.15% at room temperature. Using molecular dynamics (MD) simulations and experiments, we verified that hydrogen bonds and π-π interactions promote the formation of hard domains and the autonomous self-healing of elastomers. The prepared elastomers can also be recycled and they showed ultra-high and restorable adhesion between metals. This work demonstrates a new strategy to balance the mechanical and self-healing properties of elastomers to expand their practical applications such as metal adhesives.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
通过强大的高动态硬域,实现聚氨酯弹性体的自主自愈合和超强韧性。
自愈合材料具有高稳定性和使用寿命长的特点,因此显示出非凡的应用潜力。然而,自愈合材料应用的一大挑战是如何在机械坚固性和室温自愈合之间进行权衡。为了解决这一取舍问题,我们受生物体小分子通过非共价相互作用自组装成大蛋白质分子这一特性的启发,构建了具有由密集氢键和侧链末端苯基脲基团间的π-π相互作用构成的高动态强硬域的聚氨酯。制备的弹性体(PU-HU2-60)具有优异的拉伸性能(拉伸强度为 18.27 兆帕,极限伸长率为 904.6%)和抗裂性能(断裂能为 57.78 kJ m-2),超过了大多数室温自愈合材料。受损后,氢键和π-π相互作用的动态变化过程使弹性体在室温下表现出高达 92.15% 的自愈效率。通过分子动力学(MD)模拟和实验,我们验证了氢键和 π-π 相互作用促进了硬域的形成和弹性体的自主自愈合。制备出的弹性体还可以回收利用,它们在金属之间表现出超高的可恢复粘附力。这项工作展示了一种平衡弹性体机械性能和自愈合性能的新策略,从而扩大了弹性体在金属粘合剂等方面的实际应用。
