A Stepwise Melting-Polymerizing Molecule for Hydrophobic Grain-Scale Encapsulated Perovskite Solar Cell

IF 27.4 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Advanced Materials Pub Date : 2024-11-13 DOI:10.1002/adma.202410395
Riming Sun, Shaoyu Chen, Qingyun He, Pinghui Yang, Xuan Gao, Mengyang Wu, Junbo Wang, Chongyu Zhong, Xiangru Zhao, Mubai Li, Qiushuang Tian, Yingguo Yang, Aifei Wang, Wei Huang, Renzhi Li, Tianshi Qin, Fangfang Wang
{"title":"A Stepwise Melting-Polymerizing Molecule for Hydrophobic Grain-Scale Encapsulated Perovskite Solar Cell","authors":"Riming Sun, Shaoyu Chen, Qingyun He, Pinghui Yang, Xuan Gao, Mengyang Wu, Junbo Wang, Chongyu Zhong, Xiangru Zhao, Mubai Li, Qiushuang Tian, Yingguo Yang, Aifei Wang, Wei Huang, Renzhi Li, Tianshi Qin, Fangfang Wang","doi":"10.1002/adma.202410395","DOIUrl":null,"url":null,"abstract":"Despite the ongoing increase in the efficiency of perovskite solar cells, the stability issues of perovskite have been a significant hindrance to its commercialization. In response to this challenge, a stepwise melting-polymerizing molecule (SMPM) is designed as an additive into FAPbI<sub>3</sub> perovskite. SMPM undergoes a three-stage phase transition during the perovskite annealing process: initially melting from solid to liquid state, followed by overflowing grain boundaries, and finally self-polymerizing to form a hydrophobic grain-scale encapsulation in perovskite solar cells, providing protection against humidity-induced degradation. With this unique property, coupled with the advantages of improved crystallization, diminished non-radiative recombination, and energy level alignment, FAPbI<sub>3</sub>-based perovskite solar cells with a 25.21% (small-area) and 22.94% (1 cm<sup>2</sup>) power conversion efficiency and over 2000 h T95% stability under 85% relative humidity is achieved. Furthermore, the SMPM-based perovskite solar cells without external encapsulations sustain impressive stability during underwater operation, in which the black FAPbI<sub>3</sub> phase is maintained and Pb-leakage is also effectively suppressed. Therefore, the SMPM strategy can offer a sustainable settlement in both stability and environmental issues for the commercialization of perovskite solar cells.","PeriodicalId":114,"journal":{"name":"Advanced Materials","volume":null,"pages":null},"PeriodicalIF":27.4000,"publicationDate":"2024-11-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Materials","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1002/adma.202410395","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Despite the ongoing increase in the efficiency of perovskite solar cells, the stability issues of perovskite have been a significant hindrance to its commercialization. In response to this challenge, a stepwise melting-polymerizing molecule (SMPM) is designed as an additive into FAPbI3 perovskite. SMPM undergoes a three-stage phase transition during the perovskite annealing process: initially melting from solid to liquid state, followed by overflowing grain boundaries, and finally self-polymerizing to form a hydrophobic grain-scale encapsulation in perovskite solar cells, providing protection against humidity-induced degradation. With this unique property, coupled with the advantages of improved crystallization, diminished non-radiative recombination, and energy level alignment, FAPbI3-based perovskite solar cells with a 25.21% (small-area) and 22.94% (1 cm2) power conversion efficiency and over 2000 h T95% stability under 85% relative humidity is achieved. Furthermore, the SMPM-based perovskite solar cells without external encapsulations sustain impressive stability during underwater operation, in which the black FAPbI3 phase is maintained and Pb-leakage is also effectively suppressed. Therefore, the SMPM strategy can offer a sustainable settlement in both stability and environmental issues for the commercialization of perovskite solar cells.

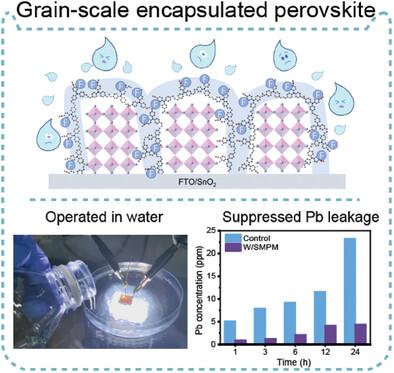

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
一种用于疏水性晶粒级封装过氧化物太阳能电池的逐步熔融聚合分子
尽管透辉石太阳能电池的效率不断提高,但透辉石的稳定性问题一直是其商业化的一大障碍。为了应对这一挑战,我们设计了一种逐步熔融聚合分子(SMPM),作为 FAPbI3 包晶石的添加剂。SMPM 在过氧化物退火过程中经历了三个阶段的相变:最初从固态熔化为液态,随后晶界溢出,最后自我聚合,在过氧化物太阳能电池中形成疏水性的晶粒级封装,防止潮湿引起的降解。有了这一独特特性,再加上改善结晶、减少非辐射重组和能级排列等优势,基于 FAPbI3 的过氧化物太阳能电池的功率转换效率达到了 25.21%(小面积)和 22.94%(1 平方厘米),在 85% 的相对湿度条件下的 T95% 稳定性超过了 2000 小时。此外,无外部封装的基于 SMPM 的包晶体太阳能电池在水下工作期间保持了令人印象深刻的稳定性,其中黑色 FAPbI3 相得以保持,铅泄漏也得到了有效抑制。因此,SMPM 策略可在稳定性和环境问题上为包晶体太阳能电池的商业化提供可持续的解决方案。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
