Large-Current CO2 Electromethanation Through Active Hydrogen Regulation Over Carbon Nitride

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Small Pub Date : 2024-11-13 DOI:10.1002/smll.202408600
Tianxiang Yan, Yaxin Jin, Qun Fan, Hai Liu, Xindi Li, Tianying Zhang, Hui Wang, Jianlong Lin, Haoyuan Chi, Sheng Zhang, Xinbin Ma
{"title":"Large-Current CO2 Electromethanation Through Active Hydrogen Regulation Over Carbon Nitride","authors":"Tianxiang Yan,&nbsp;Yaxin Jin,&nbsp;Qun Fan,&nbsp;Hai Liu,&nbsp;Xindi Li,&nbsp;Tianying Zhang,&nbsp;Hui Wang,&nbsp;Jianlong Lin,&nbsp;Haoyuan Chi,&nbsp;Sheng Zhang,&nbsp;Xinbin Ma","doi":"10.1002/smll.202408600","DOIUrl":null,"url":null,"abstract":"<p>Electromethanation of CO<sub>2</sub> has received intensive attention due to its high calorific value and convenient storage along with transportation to accommodate industrial demands. However, it is limited by sluggish multi-step proton-coupled electron transfer kinetics and undesired <sup>*</sup>H coupling under high current density, posing great challenges to its commercialization. Herein, carbon nitride (CN) with superior hydrogen adsorption ability is used as an active-hydrogen adsorption and supply material. Through a facile liquid-assisted exfoliation and electrostatic self-assembly strategy to strengthen its interfacial contacts with Cu<sub>2</sub>O catalysts, yielding a strengthened CH<sub>4</sub> production 52 times higher than that of pristine Cu<sub>2</sub>O. Flow-cell test ultimately achieved FE<sub>CH4</sub> and remarkably CH<sub>4</sub> partial current density of 61% and 561 mA cm<sup>−2</sup>, respectively. With in situ ATR-FTIR spectra and DFT calculations, it is established that strengthened interfaces enabled abundant <sup>*</sup>H tethered by ─C─N═C─ sites in CN nanosheets and oriented to the <sup>*</sup>CO hydrogenation to <sup>*</sup>CHO and <sup>*</sup>CHx on Cu species. This work reveals the profound influence of fine-expanded interfaces with dimensional materials on the product distribution and yield through the active-hydrogen management, which is of reference value for other small-molecule electro-polarization dominated by the proton-coupled electron transfer (PCET) process (e.g., N<sub>2</sub>, O<sub>2</sub>, etc.).</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 2","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2024-11-13","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202408600","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Electromethanation of CO2 has received intensive attention due to its high calorific value and convenient storage along with transportation to accommodate industrial demands. However, it is limited by sluggish multi-step proton-coupled electron transfer kinetics and undesired *H coupling under high current density, posing great challenges to its commercialization. Herein, carbon nitride (CN) with superior hydrogen adsorption ability is used as an active-hydrogen adsorption and supply material. Through a facile liquid-assisted exfoliation and electrostatic self-assembly strategy to strengthen its interfacial contacts with Cu2O catalysts, yielding a strengthened CH4 production 52 times higher than that of pristine Cu2O. Flow-cell test ultimately achieved FECH4 and remarkably CH4 partial current density of 61% and 561 mA cm−2, respectively. With in situ ATR-FTIR spectra and DFT calculations, it is established that strengthened interfaces enabled abundant *H tethered by ─C─N═C─ sites in CN nanosheets and oriented to the *CO hydrogenation to *CHO and *CHx on Cu species. This work reveals the profound influence of fine-expanded interfaces with dimensional materials on the product distribution and yield through the active-hydrogen management, which is of reference value for other small-molecule electro-polarization dominated by the proton-coupled electron transfer (PCET) process (e.g., N2, O2, etc.).

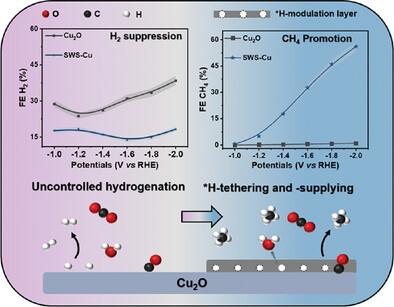

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
通过氮化碳上的活性氢调节实现大电流二氧化碳电甲烷化
二氧化碳电甲烷化因其热值高、储存和运输方便以满足工业需求而受到广泛关注。然而,在高电流密度条件下,质子耦合电子转移动力学的多步骤缓慢和不期望的 *H 耦合限制了它的发展,给其商业化带来了巨大挑战。在这里,具有卓越氢吸附能力的氮化碳(CN)被用作活性氢吸附和供应材料。通过一种简便的液体辅助剥离和静电自组装策略,加强了其与 Cu2O 催化剂的界面接触,使 CH4 产率比原始 Cu2O 提高了 52 倍。流式细胞测试最终实现了 FECH4 和显著的 CH4 部分电流密度,分别为 61% 和 561 mA cm-2。通过原位 ATR-FTIR 光谱和 DFT 计算,可以确定强化的界面使 CN 纳米片中的 -C─N═C─ 位点拴住了丰富的 *H,并定向于 *CO 在 Cu 物种上氢化成 *CHO 和 *CHx。这项工作揭示了细扩展界面与尺寸材料对通过活性氢管理的产物分布和产量的深刻影响,这对其他以质子耦合电子转移(PCET)过程(如 N2、O2 等)为主的小分子电极化具有参考价值。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
