Iterative Bleaching Extends Multiplexity (IBEX) facilitates simultaneous identification of all major retinal cell types.

Abstract

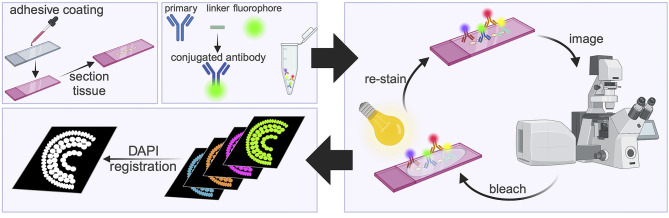

To understand the multicellular composition of tissues, and how it is altered during development, ageing and/or disease, we must visualise the complete cellular landscape. Currently, this is hindered by our limited ability to combine multiple cellular markers. To overcome this, we adapted a highly multiplexed immunofluorescence (IF) technique called Iterative Bleaching Extends Multiplexity (IBEX) to the zebrafish retina. We optimised fluorescent antibody micro-conjugation to perform sequential rounds of labelling on a single tissue to simultaneously visualise all major retinal cell types with 11 cell-specific antibodies. We further adapted IBEX to be compatible with fluorescent transgenic reporter lines, in situ hybridisation chain reaction (HCR), and wholemount immunofluorescence (WMIF). We applied IBEX at multiple stages to study the spatial and temporal relationships between glia and neurons during retinal development. Finally, we demonstrate the utility of IBEX across species by testing it on the turquoise killifish (Nothobranchius furzeri) and African clawed frog (Xenopus laevis) to glean large amounts of information from precious tissues. These techniques will revolutionise our ability to visualise multiple cell types in any organism where antibodies are readily available.
