Durable all inorganic perovskite tandem photovoltaics

IF 50.5 1区 综合性期刊 Q1 MULTIDISCIPLINARY SCIENCES Nature Pub Date : 2024-11-28 DOI:10.1038/s41586-024-08432-7
Chenghao Duan, Kaicheng Zhang, Zijian Peng, Shiang Li, Feilin Zou, Feng Wang, Jiong Li, Zheng Zhang, Chang Chen, Qiliang Zhu, Jianhang Qiu, Xinhui Lu, Ning Li, Liming Ding, Christoph J. Brabec, Feng Gao, Keyou Yan
{"title":"Durable all inorganic perovskite tandem photovoltaics","authors":"Chenghao Duan, Kaicheng Zhang, Zijian Peng, Shiang Li, Feilin Zou, Feng Wang, Jiong Li, Zheng Zhang, Chang Chen, Qiliang Zhu, Jianhang Qiu, Xinhui Lu, Ning Li, Liming Ding, Christoph J. Brabec, Feng Gao, Keyou Yan","doi":"10.1038/s41586-024-08432-7","DOIUrl":null,"url":null,"abstract":"<p>All-inorganic perovskites prepared by substituting the organic cations (e.g. methylammonium (MA<sup>+</sup>) and formamidinium (FA<sup>+</sup>)) with inorganic cations (e.g. Cs<sup>+</sup>) are effective concepts to enhance the long-term photo- and thermal-stability of perovskite solar cells (PSCs)<sup>1,2</sup>. Hence, inorganic perovskite tandem solar cells (IPTSCs) are promising candidates for breaking the efficiency bottleneck and addressing the stability issue as well<sup>3,4</sup>. However, challenges remain in fabricating 2-terminal (2T) IPTSCs due to the inferior film formation and deep trap states induced by tin cations<sup>5-7</sup>. Herein, a ligand evolution (LE) strategy with p-toluenesulfonyl hydrazide (PTSH) is employed to regulate film formation and eliminate deep traps in inorganic narrow bandgap (NBG) perovskite, enabling the successful development of 2T IPTSCs. Accordingly, the 1.31 eV CsPb<sub>0.4</sub>Sn<sub>0.6</sub>I<sub>3</sub>:LE device delivers a record efficiency of 17.41%. Combined with the 1.92 eV CsPbI<sub>2</sub>Br top-cell, 2T IPTSCs exhibit a champion efficiency of 22.57% (certified 21.92%). Additionally, IPTSCs are engineered to deliver remarkable durability under maximum power point (MPP) tracking, maintaining 80% of the initial efficiency at 65 °C for 1510 h and at 85°C for 800 h, respectively. We elucidate that LE deliberately leverages multiple roles for inorganic NBG perovskite growth and anticipate our study provides insightful guideline for developing high-efficiency and stable IPTSCs.</p>","PeriodicalId":18787,"journal":{"name":"Nature","volume":"71 1","pages":""},"PeriodicalIF":50.5000,"publicationDate":"2024-11-28","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Nature","FirstCategoryId":"103","ListUrlMain":"https://doi.org/10.1038/s41586-024-08432-7","RegionNum":1,"RegionCategory":"综合性期刊","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"MULTIDISCIPLINARY SCIENCES","Score":null,"Total":0}
引用次数: 0

Abstract

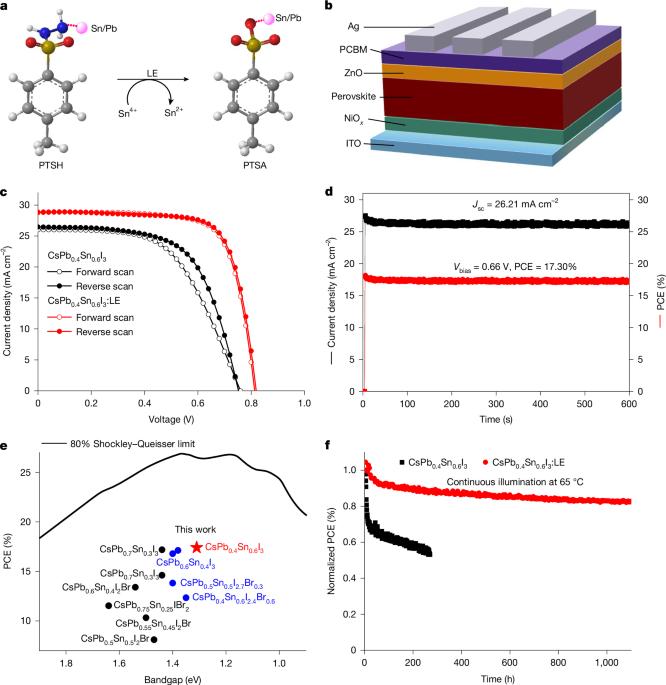

All-inorganic perovskites prepared by substituting the organic cations (e.g. methylammonium (MA+) and formamidinium (FA+)) with inorganic cations (e.g. Cs+) are effective concepts to enhance the long-term photo- and thermal-stability of perovskite solar cells (PSCs)1,2. Hence, inorganic perovskite tandem solar cells (IPTSCs) are promising candidates for breaking the efficiency bottleneck and addressing the stability issue as well3,4. However, challenges remain in fabricating 2-terminal (2T) IPTSCs due to the inferior film formation and deep trap states induced by tin cations5-7. Herein, a ligand evolution (LE) strategy with p-toluenesulfonyl hydrazide (PTSH) is employed to regulate film formation and eliminate deep traps in inorganic narrow bandgap (NBG) perovskite, enabling the successful development of 2T IPTSCs. Accordingly, the 1.31 eV CsPb0.4Sn0.6I3:LE device delivers a record efficiency of 17.41%. Combined with the 1.92 eV CsPbI2Br top-cell, 2T IPTSCs exhibit a champion efficiency of 22.57% (certified 21.92%). Additionally, IPTSCs are engineered to deliver remarkable durability under maximum power point (MPP) tracking, maintaining 80% of the initial efficiency at 65 °C for 1510 h and at 85°C for 800 h, respectively. We elucidate that LE deliberately leverages multiple roles for inorganic NBG perovskite growth and anticipate our study provides insightful guideline for developing high-efficiency and stable IPTSCs.

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
耐用的全无机过氧化物串联光伏技术
用无机阳离子(如 Cs+)替代有机阳离子(如甲基铵(MA+)和甲脒(FA+))制备的全无机包晶是提高包晶太阳能电池(PSC)长期光稳定性和热稳定性的有效概念1,2。因此,无机过氧化物串联太阳能电池(IPTSC)有望打破效率瓶颈并解决稳定性问题3,4。然而,由于锡阳离子诱导的劣质薄膜形成和深阱态,制造双端(2T)IPTSC 仍面临挑战5-7。本文采用对甲苯磺酰肼(PTSH)配体进化(LE)策略来调节无机窄带隙(NBG)包晶石的薄膜形成并消除深陷阱,从而成功开发出 2T IPTSC。因此,1.31 eV CsPb0.4Sn0.6I3:LE 器件的效率达到了创纪录的 17.41%。结合 1.92 eV CsPbI2Br 顶级电池,2T IPTSC 的冠军效率达到 22.57%(认证效率为 21.92%)。此外,IPTSC 还能在最大功率点 (MPP) 跟踪下提供出色的耐用性,在 65°C 温度下 1510 小时和 85°C 温度下 800 小时分别保持初始效率的 80%。我们阐明了 LE 特意利用无机 NBG 包晶生长的多重作用,并希望我们的研究能为开发高效、稳定的 IPTSC 提供有见地的指导。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
