Development of an Open-Source Dataset of Flat-Mounted Images for the Murine Oxygen-Induced Retinopathy Model of Ischemic Retinopathy.

IF 2.6 3区医学 Q2 OPHTHALMOLOGY Translational Vision Science & Technology Pub Date : 2024-12-02 DOI:10.1167/tvst.13.12.4

Kyle V Marra, Jimmy S Chen, Hailey K Robles-Holmes, Kristine B Ly, Joseph Miller, Guoqin Wei, Edith Aguilar, Felicitas Bucher, Yoichi Ideguchi, Fritz Gerald P Kalaw, Andrew C Lin, Napoleone Ferrara, J Peter Campbell, Martin Friedlander, Eric Nudleman

{"title":"Development of an Open-Source Dataset of Flat-Mounted Images for the Murine Oxygen-Induced Retinopathy Model of Ischemic Retinopathy.","authors":"Kyle V Marra, Jimmy S Chen, Hailey K Robles-Holmes, Kristine B Ly, Joseph Miller, Guoqin Wei, Edith Aguilar, Felicitas Bucher, Yoichi Ideguchi, Fritz Gerald P Kalaw, Andrew C Lin, Napoleone Ferrara, J Peter Campbell, Martin Friedlander, Eric Nudleman","doi":"10.1167/tvst.13.12.4","DOIUrl":null,"url":null,"abstract":"Purpose: To describe an open-source dataset of flat-mounted retinal images and vessel segmentations from mice subject to the oxygen-induced retinopathy (OIR) model.Methods: Flat-mounted retinal images from mice killed at postnatal days 12 (P12), P17, and P25 used in prior OIR studies were compiled. Mice subjected to normoxic conditions were killed at P12, P17, and P25, and their retinas were flat-mounted for imaging. Major blood vessels from the OIR images were manually segmented by four graders (JSC, HKR, KBL, JM), with cross-validation performed to ensure similar grading.Results: Overall, 1170 images were included in this dataset. Of these images, 111 were of normoxic mice retina, and 1048 were mice subject to OIR. The majority of images from OIR mice were obtained at P17. The 50 images obtained from an external dataset, OIRSeg, did not have age labels. All images were manually segmented and used in the training or testing of a previously published deep learning algorithm.Conclusions: This is the first open-source dataset of original and segmented flat-mounted retinal images. The dataset has potential applications for expanding the development of generalizable and larger-scale artificial intelligence and analyses for OIR. This dataset is published online and publicly available at dx.doi.org/10.6084/m9.figshare.23690973.Translational relevance: This open access dataset serves as a source of raw data for future research involving big data and artificial intelligence research concerning oxygen-induced retinopathy.","PeriodicalId":23322,"journal":{"name":"Translational Vision Science & Technology","volume":"13 12","pages":"4"},"PeriodicalIF":2.6000,"publicationDate":"2024-12-02","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"https://www.ncbi.nlm.nih.gov/pmc/articles/PMC11620014/pdf/","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Translational Vision Science & Technology","FirstCategoryId":"3","ListUrlMain":"https://doi.org/10.1167/tvst.13.12.4","RegionNum":3,"RegionCategory":"医学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"OPHTHALMOLOGY","Score":null,"Total":0}

引用次数: 0

Abstract

Purpose: To describe an open-source dataset of flat-mounted retinal images and vessel segmentations from mice subject to the oxygen-induced retinopathy (OIR) model.

Methods: Flat-mounted retinal images from mice killed at postnatal days 12 (P12), P17, and P25 used in prior OIR studies were compiled. Mice subjected to normoxic conditions were killed at P12, P17, and P25, and their retinas were flat-mounted for imaging. Major blood vessels from the OIR images were manually segmented by four graders (JSC, HKR, KBL, JM), with cross-validation performed to ensure similar grading.

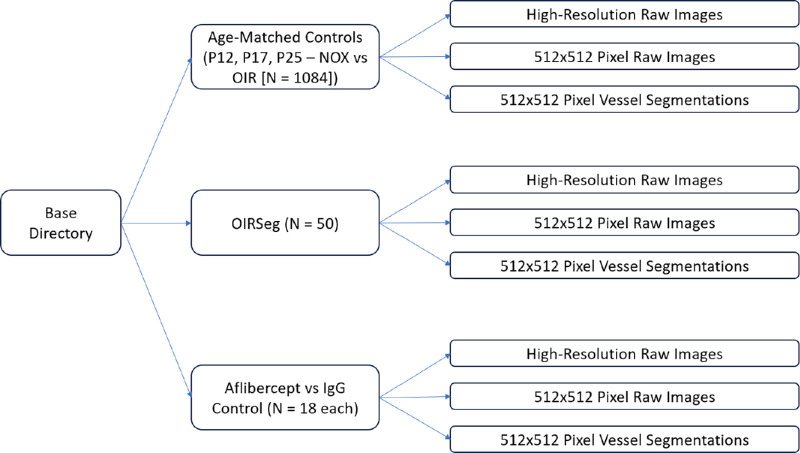

Results: Overall, 1170 images were included in this dataset. Of these images, 111 were of normoxic mice retina, and 1048 were mice subject to OIR. The majority of images from OIR mice were obtained at P17. The 50 images obtained from an external dataset, OIRSeg, did not have age labels. All images were manually segmented and used in the training or testing of a previously published deep learning algorithm.

Conclusions: This is the first open-source dataset of original and segmented flat-mounted retinal images. The dataset has potential applications for expanding the development of generalizable and larger-scale artificial intelligence and analyses for OIR. This dataset is published online and publicly available at dx.doi.org/10.6084/m9.figshare.23690973.

Translational relevance: This open access dataset serves as a source of raw data for future research involving big data and artificial intelligence research concerning oxygen-induced retinopathy.
