Temperature-responsive metamaterials made of highly sensitive thermostat metal strips

Abstract

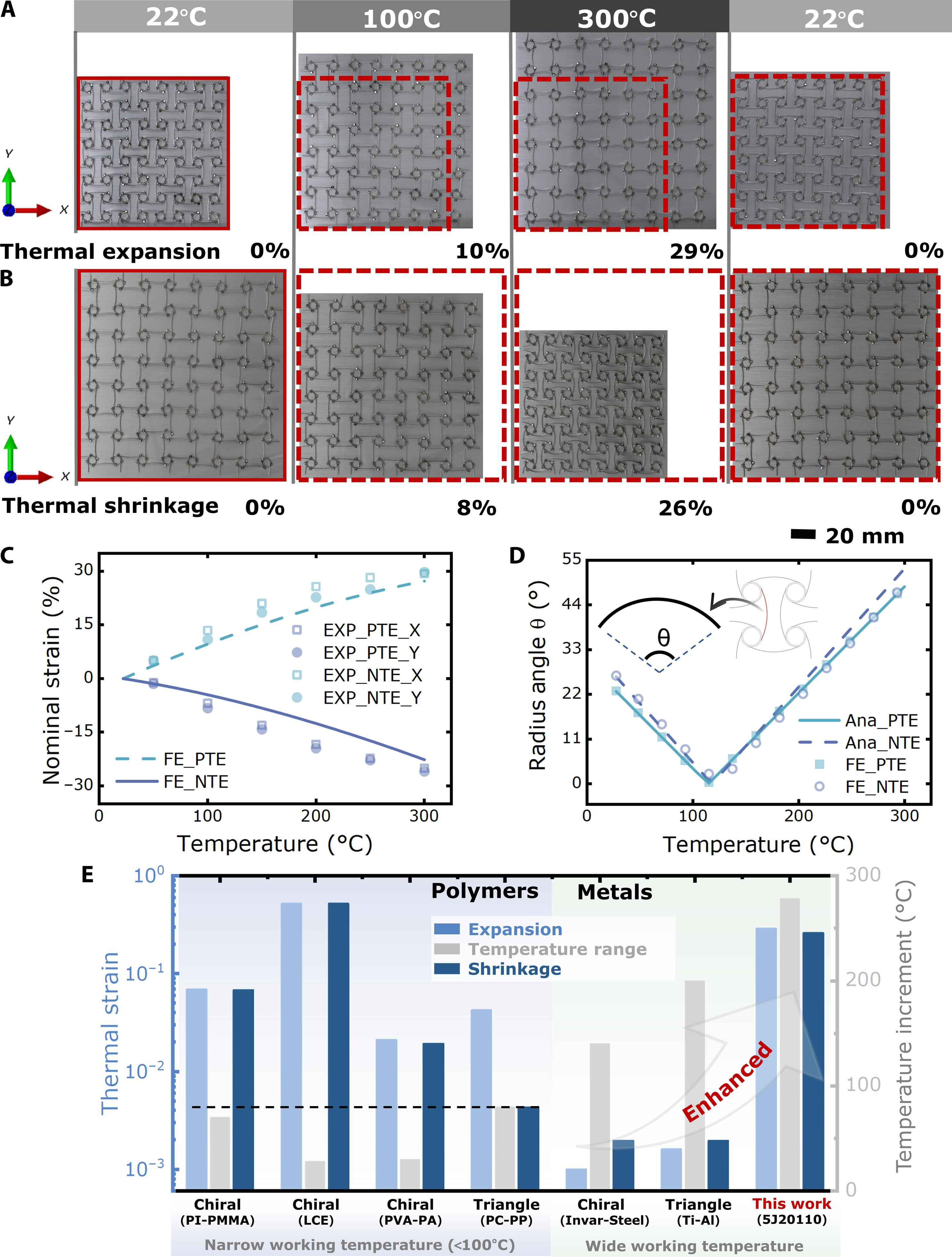

Temperature-responsive metamaterials have remarkable shape-morphing ability during thermal energy conversion. However, integrating the thermal shape programmability, wide-working temperature range, fast temperature response, and actuation into metamaterials remains challenging. Here, we introduce using thermostat metal strips to assemble metamaterials with desirable and balanced temperature-responsive properties, and we systematically investigate the thermal deformation performance. Achieving 70 to 80% of the designed strain requires only 5 seconds of heating. A thermal strain of around 30% is achieved for the assembled metamaterials, surpassing other bimetallic metamaterials by a magnitude of 100 to 200. The actuation capacity of thermostat metal strips exceeds 26 times their weight. Further, by leveraging the highly programmable thermal deformation, the tuneable bandgap range is 3847 to 40,000 hertz. These fully integrated mechanical performances in the multiphysics have great application potential, for example, as soft actuators and soft robots in intelligent structure systems, vibration isolation and noise reduction in hypersonic vehicles, and unique thermal deformation in precision instruments.
