Lattice-Matched BaClF/CsPbBr3 Heterostructure with Enhanced and Stable Cyan Emission to Overcome Blue Overshoot and Cyan Gap of White Light-Emitting Diodes

IF 10 1区 物理与天体物理 Q1 OPTICS Laser & Photonics Reviews Pub Date : 2024-12-09 DOI:10.1002/lpor.202401596
Le Han, Peng Liu, Bohan Li, Yuchi Zhang, Zhuo Liu, Xia Liu, Yan Xu
{"title":"Lattice-Matched BaClF/CsPbBr3 Heterostructure with Enhanced and Stable Cyan Emission to Overcome Blue Overshoot and Cyan Gap of White Light-Emitting Diodes","authors":"Le Han,&nbsp;Peng Liu,&nbsp;Bohan Li,&nbsp;Yuchi Zhang,&nbsp;Zhuo Liu,&nbsp;Xia Liu,&nbsp;Yan Xu","doi":"10.1002/lpor.202401596","DOIUrl":null,"url":null,"abstract":"<p>Combining blue-emitting LED chip and yellow-emitting phosphor coating is efficient in manufacturing white light-emitting diode (WLED). However, the lack of a uniformly distributed continuous emission spectrum in conventional WLED can result in “blue overshoot” and “cyan gap”, thus cause retinal damage and low color rendering index (CRI). Herein, a novel “kill two birds with one stone” strategy is reported: by preparing BaClF/CsPbBr<sub>3</sub> heterostructures via a lattice- matching approach, F and Cl in BaClF matrix passivate the bromine vacancies of CsPbBr<sub>3</sub> NCs, enhancing luminescence stability and achieving a blue-shift of PL to obtain cyan-emission. BaClF/CsPbBr<sub>3</sub> heterostructures with controllable emissions in 468–510 nm can be fabricated by adjusting the molar ratios of CsPbBr<sub>3</sub> to BaClF, and the photoluminescent quantum yield (PLQY) is up to 80.6%. The cyan-emitting BaClF/CsPbBr<sub>3</sub> heterostructure acting as a cyan color converter can effectively absorb the “blue overshoot” and fill the “cyan gap” in WLED, thus significantly increasing the CRI value of WLED from 70.1 to 86.2 and the luminescent efficiency boosts from 21.3 to 87.8 lmW<sup>−1</sup>. This work highlights a lattice-matching strategy to produce ultra-stable cyan-emitting perovskite nanomaterials with high brightness and durability, paving the way for the application of perovskite NCs in next-generation WLED lighting.</p>","PeriodicalId":204,"journal":{"name":"Laser & Photonics Reviews","volume":"19 5","pages":""},"PeriodicalIF":10.0000,"publicationDate":"2024-12-09","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Laser & Photonics Reviews","FirstCategoryId":"101","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/lpor.202401596","RegionNum":1,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"OPTICS","Score":null,"Total":0}
引用次数: 0

Abstract

Combining blue-emitting LED chip and yellow-emitting phosphor coating is efficient in manufacturing white light-emitting diode (WLED). However, the lack of a uniformly distributed continuous emission spectrum in conventional WLED can result in “blue overshoot” and “cyan gap”, thus cause retinal damage and low color rendering index (CRI). Herein, a novel “kill two birds with one stone” strategy is reported: by preparing BaClF/CsPbBr3 heterostructures via a lattice- matching approach, F and Cl in BaClF matrix passivate the bromine vacancies of CsPbBr3 NCs, enhancing luminescence stability and achieving a blue-shift of PL to obtain cyan-emission. BaClF/CsPbBr3 heterostructures with controllable emissions in 468–510 nm can be fabricated by adjusting the molar ratios of CsPbBr3 to BaClF, and the photoluminescent quantum yield (PLQY) is up to 80.6%. The cyan-emitting BaClF/CsPbBr3 heterostructure acting as a cyan color converter can effectively absorb the “blue overshoot” and fill the “cyan gap” in WLED, thus significantly increasing the CRI value of WLED from 70.1 to 86.2 and the luminescent efficiency boosts from 21.3 to 87.8 lmW−1. This work highlights a lattice-matching strategy to produce ultra-stable cyan-emitting perovskite nanomaterials with high brightness and durability, paving the way for the application of perovskite NCs in next-generation WLED lighting.

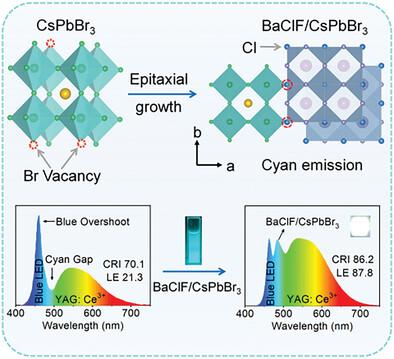

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
晶格匹配BaClF/CsPbBr3异质结构增强和稳定的青色发射克服白色发光二极管的蓝色超调和青色间隙
将蓝色发光LED芯片与黄色发光荧光粉涂层相结合是制造白光发光二极管的有效方法。然而,传统WLED缺乏均匀分布的连续发射光谱,会导致“蓝色超调”和“青色间隙”,从而造成视网膜损伤和显色指数(CRI)低。本文报道了一种“一石二鸟”的新策略:通过晶格匹配的方法制备BaClF/CsPbBr3异质结构,利用BaClF基质中的F和Cl钝化CsPbBr3 NCs的溴空位,增强其发光稳定性,实现PL的蓝移,获得青色发射。通过调节CsPbBr3与CsPbBr3的摩尔比,可以制备出在468 ~ 510 nm范围内发光可控的BaClF/CsPbBr3异质结构,其光致发光量子产率(PLQY)高达80.6%。发射青色的BaClF/CsPbBr3异质结构作为青色转换器,可以有效吸收WLED中的“蓝色超调”,填补“青色间隙”,从而使WLED的显色指数值从70.1提高到86.2,发光效率从21.3提高到87.8 lmW−1。这项工作强调了一种晶格匹配策略,以生产具有高亮度和耐用性的超稳定的青色发射钙钛矿纳米材料,为钙钛矿纳米材料在下一代WLED照明中的应用铺平了道路。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
