B. Wicher, V. Rogoz, J. Lu, K. Kulikowski, A. Lachowski, S. Kolozsvári, P. Polcik, G. Greczynski
{"title":"The crucial influence of Al on the high-temperature oxidation resistance of Ti1-xAlxBy diboride thin films (0.36 ≤ x ≤ 0.74, 1.83 ≤ y ≤ 2.03)","authors":"B. Wicher, V. Rogoz, J. Lu, K. Kulikowski, A. Lachowski, S. Kolozsvári, P. Polcik, G. Greczynski","doi":"10.1016/j.apsusc.2024.162081","DOIUrl":null,"url":null,"abstract":"The high-temperature oxidation resistance and mechanical properties of Ti<sub>1-x</sub>Al<sub>x</sub>B<sub>y</sub> (0.36 ≤ x ≤ 0.74, and 1.83 ≤ y ≤ 2.03) films grown by hybrid HiPIMS/DCMS co-sputtering from TiB<sub>2</sub> and AlB<sub>2</sub> targets at substrate temperatures (<180 °C) are studied. The air-annealing experiments conducted at temperatures ranging from 700 to 900 °C reveal a strong correlation between the starting Al concentration and the oxidation resistance. Low Al content films (x ≤ 0.49 ± 0.03 in the as-deposited state) show higher oxidation rates and develop B-depleted porous oxide scales as the original film is consumed. In contrast, oxides growing on top of high-Al content films (x ≥ 0.58 ± 0.03) are compact, composed of amorphous alumina (Al<sub>2</sub>O<sub>3</sub>) and borate (Al<sub>18</sub>B<sub>4</sub>O<sub>33</sub>), which passivate the surface against oxidation effectively. Oxide scales on films with x ≥ 0.58 are, on average, 60 % harder and have 18 % higher elastic moduli. The hardest scale grew on the Ti<sub>0.42</sub>Al<sub>0.58</sub>B<sub>1.87</sub> film, with the nanoindentation hardness of 27.3 ± 2.7 GPa, which is comparable to that of as-deposited TiAlN, used widely for high-temperature wear protection. Electron microscopy also shows that for x ≥ 0.58 ± 0.03, the oxide scales adhere well to the bottom unoxidized portions of Ti<sub>1-x</sub>Al<sub>x</sub>B<sub>y</sub> film, which is explained by a better match of the respective thermal expansion coefficients.","PeriodicalId":247,"journal":{"name":"Applied Surface Science","volume":"86 1","pages":""},"PeriodicalIF":6.3000,"publicationDate":"2024-12-14","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Applied Surface Science","FirstCategoryId":"88","ListUrlMain":"https://doi.org/10.1016/j.apsusc.2024.162081","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q2","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

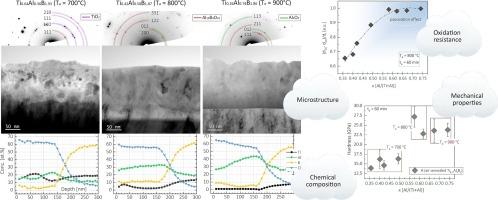

Abstract
The high-temperature oxidation resistance and mechanical properties of Ti1-xAlxBy (0.36 ≤ x ≤ 0.74, and 1.83 ≤ y ≤ 2.03) films grown by hybrid HiPIMS/DCMS co-sputtering from TiB2 and AlB2 targets at substrate temperatures (<180 °C) are studied. The air-annealing experiments conducted at temperatures ranging from 700 to 900 °C reveal a strong correlation between the starting Al concentration and the oxidation resistance. Low Al content films (x ≤ 0.49 ± 0.03 in the as-deposited state) show higher oxidation rates and develop B-depleted porous oxide scales as the original film is consumed. In contrast, oxides growing on top of high-Al content films (x ≥ 0.58 ± 0.03) are compact, composed of amorphous alumina (Al2O3) and borate (Al18B4O33), which passivate the surface against oxidation effectively. Oxide scales on films with x ≥ 0.58 are, on average, 60 % harder and have 18 % higher elastic moduli. The hardest scale grew on the Ti0.42Al0.58B1.87 film, with the nanoindentation hardness of 27.3 ± 2.7 GPa, which is comparable to that of as-deposited TiAlN, used widely for high-temperature wear protection. Electron microscopy also shows that for x ≥ 0.58 ± 0.03, the oxide scales adhere well to the bottom unoxidized portions of Ti1-xAlxBy film, which is explained by a better match of the respective thermal expansion coefficients.
