Crystal phase and band edge modulation of MA- and Br-free CsFA-based perovskites for efficient inverted solar cells and minimodules†

IF 30.8 1区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Energy & Environmental Science Pub Date : 2024-12-24 DOI:10.1039/D4EE05860G
Jiewei Yang, Qi Wang, Wei Hui, Xin Chen, Yuqi Yao, Weijian Tang, Wuke Qiu, Xiaopeng Xu, Lin Song, Yihui Wu and Qiang Peng
{"title":"Crystal phase and band edge modulation of MA- and Br-free CsFA-based perovskites for efficient inverted solar cells and minimodules†","authors":"Jiewei Yang, Qi Wang, Wei Hui, Xin Chen, Yuqi Yao, Weijian Tang, Wuke Qiu, Xiaopeng Xu, Lin Song, Yihui Wu and Qiang Peng","doi":"10.1039/D4EE05860G","DOIUrl":null,"url":null,"abstract":"<p >The non-radiative voltage loss associated with traps (<em>V</em><small><sup>non-rad</sup></small><small><sub>loss</sub></small>) is the crucial factor limiting the performance of inverted perovskite solar cells (PSCs). In this study, we manipulate the crystal growth and spectral response of MA-/Br-free CsFA-based perovskites to minimize the <em>V</em><small><sup>non-rad</sup></small><small><sub>loss</sub></small> by rationally introducing methyl(methylsulfinyl)methyl sulfide (MMS) into the precursor. MMS effectively inhibits the oxidation of halides and reduces the formation of δ-phase perovskites during phase-transformation, resulting in the formation of a high-quality perovskite film with fewer defects and reduced non-radiative recombination. Notably, a 5 nm red-shift in the band edge of the perovskite is achieved, providing an additional integrated current density of 0.24 mA cm<small><sup>−2</sup></small>. Consequently, a certified efficiency of 26.01% from the reverse scan, along with a quasi-steady-state output efficiency of 25.30%, is obtained for the 0.09-cm<small><sup>2</sup></small> inverted PSC, marking the highest values for inverted PSCs based on MA-/Br-free CsFA double-cation perovskites to date. The champion device exhibits a minimal <em>V</em><small><sup>non-rad</sup></small><small><sub>loss</sub></small> of 67 mV. The present strategy is also extended to a minimodule with an active area of 12.96 cm<small><sup>2</sup></small> by delivering an efficiency of 22.67% from the reverse scan. Moreover, the target devices demonstrate great thermal and operational stability. This study offers a versatile Lewis base for regulating the crystal growth and spectral response of perovskite films and emphasizes the significance of minimizing the <em>V</em><small><sup>non-rad</sup></small><small><sub>loss</sub></small> for high-performance inverted PSCs.</p>","PeriodicalId":72,"journal":{"name":"Energy & Environmental Science","volume":" 4","pages":" 1732-1744"},"PeriodicalIF":30.8000,"publicationDate":"2024-12-24","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy & Environmental Science","FirstCategoryId":"88","ListUrlMain":"https://pubs.rsc.org/en/content/articlelanding/2025/ee/d4ee05860g","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

The non-radiative voltage loss associated with traps (Vnon-radloss) is the crucial factor limiting the performance of inverted perovskite solar cells (PSCs). In this study, we manipulate the crystal growth and spectral response of MA-/Br-free CsFA-based perovskites to minimize the Vnon-radloss by rationally introducing methyl(methylsulfinyl)methyl sulfide (MMS) into the precursor. MMS effectively inhibits the oxidation of halides and reduces the formation of δ-phase perovskites during phase-transformation, resulting in the formation of a high-quality perovskite film with fewer defects and reduced non-radiative recombination. Notably, a 5 nm red-shift in the band edge of the perovskite is achieved, providing an additional integrated current density of 0.24 mA cm−2. Consequently, a certified efficiency of 26.01% from the reverse scan, along with a quasi-steady-state output efficiency of 25.30%, is obtained for the 0.09-cm2 inverted PSC, marking the highest values for inverted PSCs based on MA-/Br-free CsFA double-cation perovskites to date. The champion device exhibits a minimal Vnon-radloss of 67 mV. The present strategy is also extended to a minimodule with an active area of 12.96 cm2 by delivering an efficiency of 22.67% from the reverse scan. Moreover, the target devices demonstrate great thermal and operational stability. This study offers a versatile Lewis base for regulating the crystal growth and spectral response of perovskite films and emphasizes the significance of minimizing the Vnon-radloss for high-performance inverted PSCs.

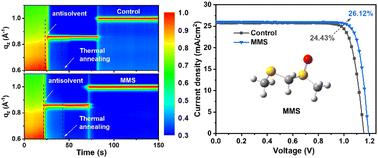

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
用于高效倒置太阳能电池和微型组件的无MA和无br csfa钙钛矿晶体相位和带边调制
与阱相关的非辐射电压损耗(V_loss^(non-rad))是限制倒钙钛矿太阳能电池(PSCs)性能的关键因素。在本研究中,我们通过在前驱体中合理引入甲基(甲基亚砜基)甲基硫醚(MMS)来控制MA-/Br-free csfa基钙钛矿的晶体生长和光谱响应,以最小化V_loss^(non-rad)。MMS有效地抑制了卤化物的氧化,减少了相变过程中δ相钙钛矿的形成,从而形成了缺陷较少、非辐射复合减少的高质量钙钛矿膜。值得注意的是,在钙钛矿的能带边缘实现了5 nm的红移,提供了0.24 mA/cm2的额外集成电流密度。因此,0.09 cm2的倒置PSC的反向扫描效率为26.01%,准稳态输出效率为25.30%,这标志着迄今为止基于MA-/Br-free CsFA双阳离子钙钛矿的倒置PSC的最大值。冠军器件显示最小V_loss^(非rad)为67 mV。目前的策略也扩展到一个具有12.96 cm2有效面积的微型模块,通过反向扫描提供22.67%的效率。此外,目标器件表现出良好的热稳定性和操作稳定性。该研究为调节钙钛矿薄膜的晶体生长和光谱响应提供了一个通用的刘易斯基础,并强调了最小化V_loss^(non-rad)对于高性能倒立psc的重要性。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
