Chain effect-controlled solvation chemistry and interfacial microstructure enables highly reversible Zn metal anode

IF 20.2 1区 材料科学 Q1 CHEMISTRY, PHYSICAL Energy Storage Materials Pub Date : 2025-02-01 Epub Date: 2025-01-14 DOI:10.1016/j.ensm.2025.104039
Dan Xie , Fang-Yu Tao , Li-Han Zhu , Han-Hao Liu , Chang Liu , Jia-Wei Wang , Hong Yu , Godefroid Gahungud , Xing-Long Wu , Jing-Ping Zhang
{"title":"Chain effect-controlled solvation chemistry and interfacial microstructure enables highly reversible Zn metal anode","authors":"Dan Xie ,&nbsp;Fang-Yu Tao ,&nbsp;Li-Han Zhu ,&nbsp;Han-Hao Liu ,&nbsp;Chang Liu ,&nbsp;Jia-Wei Wang ,&nbsp;Hong Yu ,&nbsp;Godefroid Gahungud ,&nbsp;Xing-Long Wu ,&nbsp;Jing-Ping Zhang","doi":"10.1016/j.ensm.2025.104039","DOIUrl":null,"url":null,"abstract":"<div><div>The charge transfer kinetics of Zn plating/stripping and the parasitic reactions are affected by the adsorption of Zn<sup>2+</sup> and the subsequent desolvation process proceeded at the electrode/electrolyte interface (EEI). Herein, this work cleverly utilizes the “chain effect” triggered by the l-Methionine (Met) molecules to improving the stability of EEI by the solvation chemistry and interfacial microstructure reconfiguration. Firstly, the introduction of Met molecules enhances the solvation ability of anions, which squeezes out solvated H<sub>2</sub>O molecules and generate anion-derived hybrid solid electrolyte interphase (SEI) layer, weakening H<sub>2</sub>O-induced parasitic reactions and expediting the migration rate of Zn<sup>2+</sup> at EEI. Meanwhile, the strengthened anion-cation interaction quickens the desolvation kinetics of Zn<sup>2+</sup>, homogenizing Zn<sup>2+</sup> flux at interface. Secondly, Met molecules with multiple active sites not only break the original H-bonds network between H<sub>2</sub>O molecules, further reducing the reactivity of H<sub>2</sub>O molecules, but also preferentially adsorb on the Zn<sub>(101)</sub> and Zn<sub>(110)</sub> crystal planes to increase the exposure of Zn<sub>(002)</sub> crystal face, improving the stability of SEI and inducing uniform Zn deposition. Consequently, the symmetric/asymmetric cell in the Met-containing electrolyte demonstrates a long cycling life over 2700 h and high reversibility up to 4500 cycles, respectively. And the assembled full cells and pouch-cell exhibit outstanding cycling performance.</div></div>","PeriodicalId":306,"journal":{"name":"Energy Storage Materials","volume":"75 ","pages":"Article 104039"},"PeriodicalIF":20.2000,"publicationDate":"2025-02-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy Storage Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2405829725000406","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/1/14 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

The charge transfer kinetics of Zn plating/stripping and the parasitic reactions are affected by the adsorption of Zn2+ and the subsequent desolvation process proceeded at the electrode/electrolyte interface (EEI). Herein, this work cleverly utilizes the “chain effect” triggered by the l-Methionine (Met) molecules to improving the stability of EEI by the solvation chemistry and interfacial microstructure reconfiguration. Firstly, the introduction of Met molecules enhances the solvation ability of anions, which squeezes out solvated H2O molecules and generate anion-derived hybrid solid electrolyte interphase (SEI) layer, weakening H2O-induced parasitic reactions and expediting the migration rate of Zn2+ at EEI. Meanwhile, the strengthened anion-cation interaction quickens the desolvation kinetics of Zn2+, homogenizing Zn2+ flux at interface. Secondly, Met molecules with multiple active sites not only break the original H-bonds network between H2O molecules, further reducing the reactivity of H2O molecules, but also preferentially adsorb on the Zn(101) and Zn(110) crystal planes to increase the exposure of Zn(002) crystal face, improving the stability of SEI and inducing uniform Zn deposition. Consequently, the symmetric/asymmetric cell in the Met-containing electrolyte demonstrates a long cycling life over 2700 h and high reversibility up to 4500 cycles, respectively. And the assembled full cells and pouch-cell exhibit outstanding cycling performance.

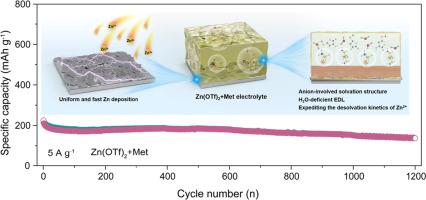

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
链效应控制的溶剂化化学和界面微观结构使高可逆锌金属阳极成为可能
电极/电解质界面(EEI)上 Zn2+ 的吸附和随后的脱溶过程会影响镀锌/剥离的电荷转移动力学和寄生反应。在此,本研究巧妙地利用了蛋氨酸(Met)分子引发的 "链式效应",通过溶解化学和界面微结构重构来提高 EEI 的稳定性。首先,Met 分子的引入增强了阴离子的溶解能力,从而挤出溶解的 H2O 分子,生成阴离子衍生的混合固体电解质相间层(SEI),削弱了 H2O 引起的寄生反应,加快了 Zn2+ 在 EEI 中的迁移速度。同时,阴阳离子相互作用的加强加快了 Zn2+ 的脱溶动力学,使界面上的 Zn2+ 通量均匀化。其次,具有多个活性位点的 Met 分子不仅能打破 H2O 分子间原有的 H 键网络,进一步降低 H2O 分子的反应活性,还能优先吸附在 Zn(101) 和 Zn(110) 晶面上,增加 Zn(002) 晶面的暴露,提高 SEI 的稳定性,诱导 Zn 的均匀沉积。因此,在含金属元素电解液中的对称/非对称电池分别显示出超过 2700 小时的长循环寿命和高达 4500 次循环的高可逆性。组装后的全电池和袋装电池也表现出了出色的循环性能。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
