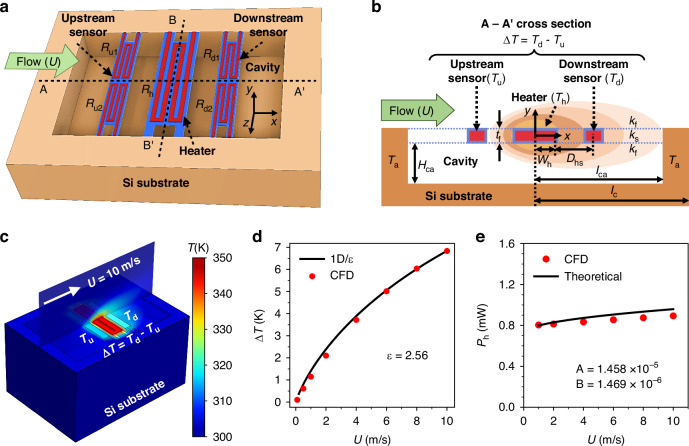

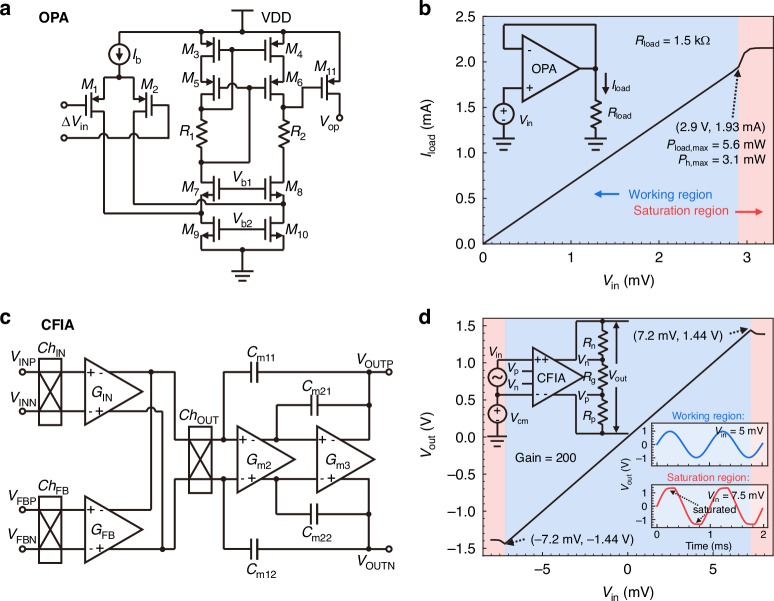

System-level modeling with temperature compensation for a CMOS-MEMS monolithic calorimetric flow sensing SoC.

Abstract
