Texture analysis combined with machine learning in radiographs of the knee joint: potential to identify tibial plateau occult fractures.

Abstract

Background: Missed or delayed diagnosis of occult fractures of tibial plateau may cause adverse effects on patients. The objective of this study was to evaluate the diagnostic performance of texture analysis (TA) of knee joint radiographs combined with machine learning (ML) in identifying patients at risk of tibial plateau occult fractures.

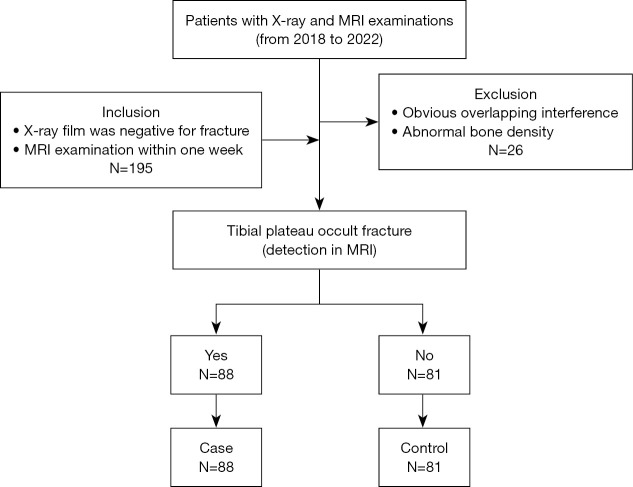

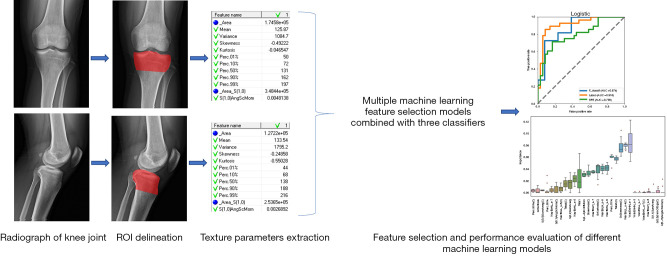

Methods: A total of 169 patients with negative fracture on knee X-ray films from 2018 to 2022 who were diagnosed with occult tibial plateau fractures or no fractures by subsequent magnetic resonance imaging (MRI) examination were retrospectively enrolled. The X-ray images of the patient's knee joint were used for texture feature extraction. A total of 9 ML feature selection methods (including 6 mainstream methods and 3 methods provided by MaZda software) combined with 3 classification methods were used to build the best diagnostic model. The performance of each model was evaluated by accuracy, F1-value, and area under the curve (AUC).

Results: The least absolute shrinkage and selection operator (LASSO) method had the best performance of the 6 mainstream methods, with an accuracy of 0.81, an F1 value of 0.80, and an AUC of 0.920, all of which were higher than those of the other five methods (accuracy range: 0.65-0.80, F1 score range: 0.61-0.79, AUC range: 0.722-0.895). Among the three feature selection models in MaZda software, the most ideal method for accuracy measurement was the MI method, reaching 0.77. In the measurement of the F1 value and AUC, MaZda's best method was Fisher, reaching 0.78 and 0.888, respectively. All indicators were lower than those of the LASSO method. The combination of LASSO and support vector machine (SVM) yielded the best classification performance, while the performance of the combination of LASSO and logistic regression was slightly inferior, but the difference was not statistically significant.

Conclusions: TA of knee joint radiography combined with ML has achieved high performance in identifying patients at risk of occult fractures of the tibial plateau. Considering both the model performance and computational complexity, the LASSO feature selection method combined with the logistic regression classifier yielded the best classification performance in this process.
