A Novel Polarized Light Microscope for the Examination of Birefringent Crystals in Synovial Fluid.

Abstract

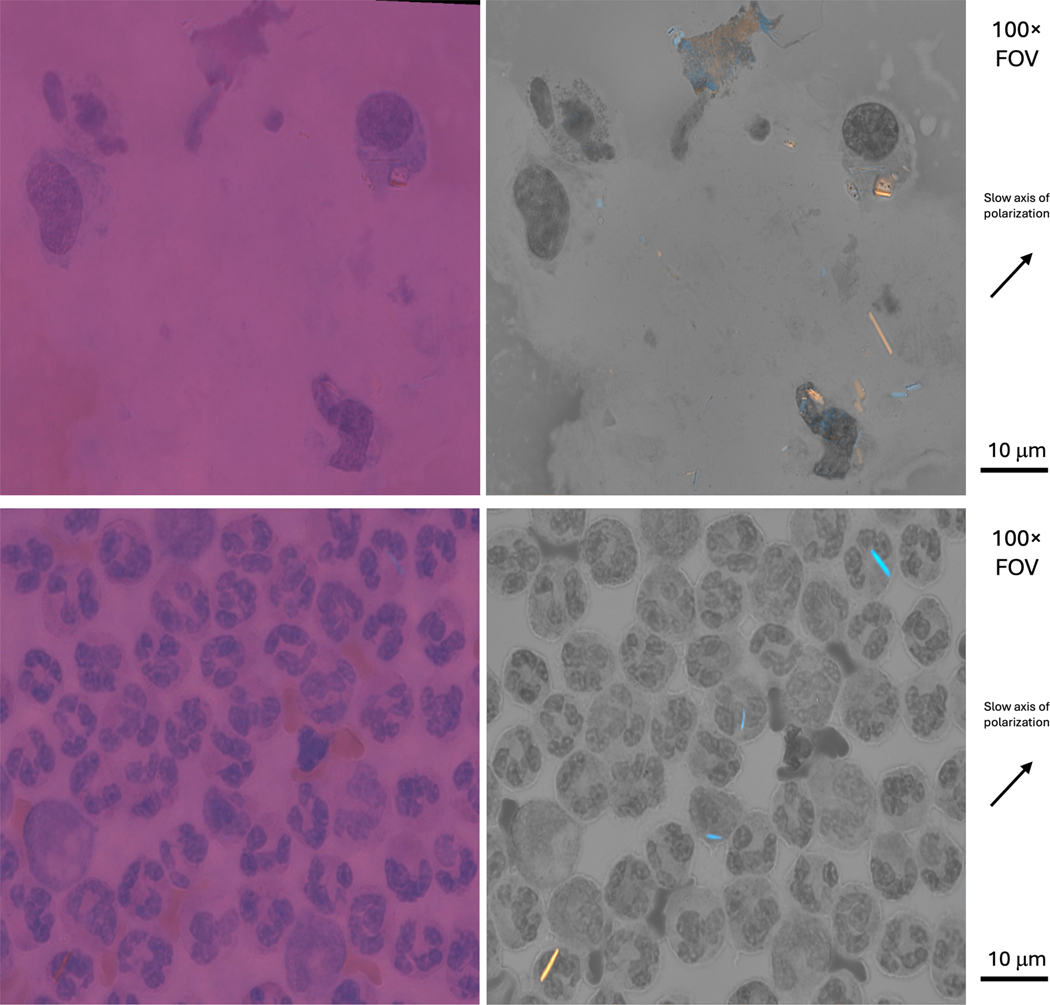

Background: The gold standard for crystal arthritis diagnosis relies on the identification of either monosodium urate (MSU) or calcium pyrophosphate (CPP) crystals in synovial fluid. With the goal of enhanced crystal detection, we adapted a standard compensated polarized light microscope (CPLM) with a polarized digital camera and multi-focal depth imaging capabilities to create digital images from synovial fluid mounted on microscope slides. Using this single-shot computational polarized light microscopy (SCPLM) method, we compared rates of crystal detection and raters' preference for image.

Methods: Microscope slides from patients with either CPP, MSU, or no crystals in synovial fluid were acquired using CPLM and SCPLM methodologies. Detection rate, sensitivity, and specificity were evaluated by presenting expert crystal raters with (randomly sorted) CPLM and SCPLM digital images, from FOV above clinical samples. For each FOV and each method, each rater was asked to identify crystal suspects and their level of certainty for each crystal suspect and crystal type (MSU vs. CPP).

Results: For the 283 crystal suspects evaluated, SCPLM resulted in higher crystal detection rates than did CPLM, for both CPP (51%. vs. 28%) and MSU (78% vs. 46%) crystals. Similarly, sensitivity was greater for SCPLM for CPP (0.63 vs. 0.35) and MSU (0.88 vs. 0.52) without giving up much specificity resulting in higher AUC.

Conclusions: Subjective and objective measures of greater detection and higher certainty were observed for SCPLM over CPLM, particularly for CPP crystals. The digital data associated with these images can ultimately be incorporated into an automated crystal detection system that provides a quantitative report on crystal count, size, and morphology.
