Deep Learning for Predicting Spheroid Viability: Novel Convolutional Neural Network Model for Automating Quality Control for Three-Dimensional Bioprinting.

Abstract

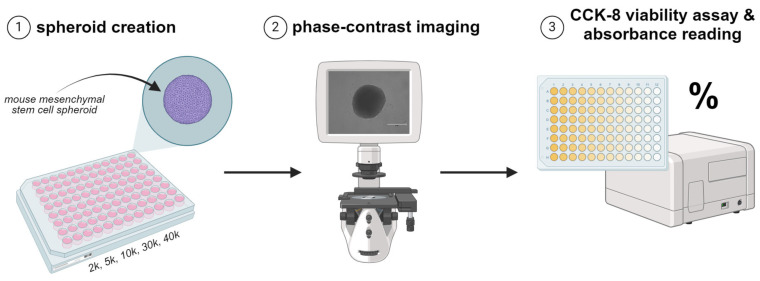

Spheroids serve as the building blocks for three-dimensional (3D) bioprinted tissue patches. When larger than 500 μm, the desired size for 3D bioprinting, they tend to have a hypoxic core with necrotic cells. Therefore, it is critical to assess the viability of spheroids in order to ensure the successful fabrication of high-viability patches. However, current viability assays are time-consuming, labor-intensive, require specialized training, or are subject to human bias. In this study, we build a convolutional neural network (CNN) model to efficiently and accurately predict spheroid viability, using a phase-contrast image of a spheroid as its input. A comprehensive dataset of mouse mesenchymal stem cell (mMSC) spheroids of varying sizes with corresponding viability percentages, which was obtained through CCK-8 assays, was established and used to train and validate the model. The model was trained to automatically classify spheroids into one of four distinct categories based on their predicted viability: 0-20%, 20-40%, 40-70%, and 70-100%. The model achieved an average accuracy of 92%, with a consistent loss below 0.2. This deep-learning model offers a non-invasive, efficient, and accurate method to streamline the assessment of spheroid quality, thereby accelerating the development of bioengineered cardiac tissue patches for cardiovascular disease therapies.
