FDA-MIMO Radar Rapid Target Localization via Reconstructed Reduce Dimension Rooting.

Abstract

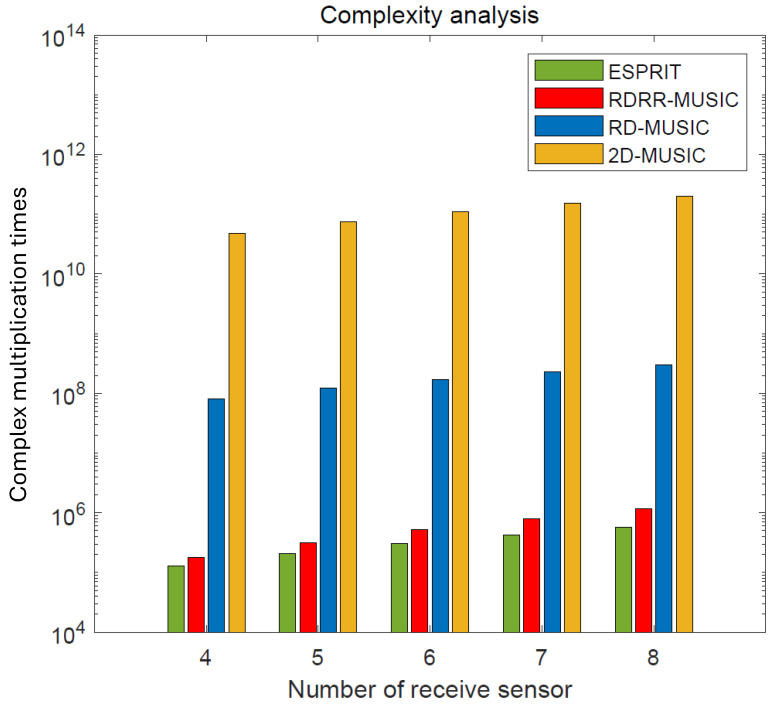

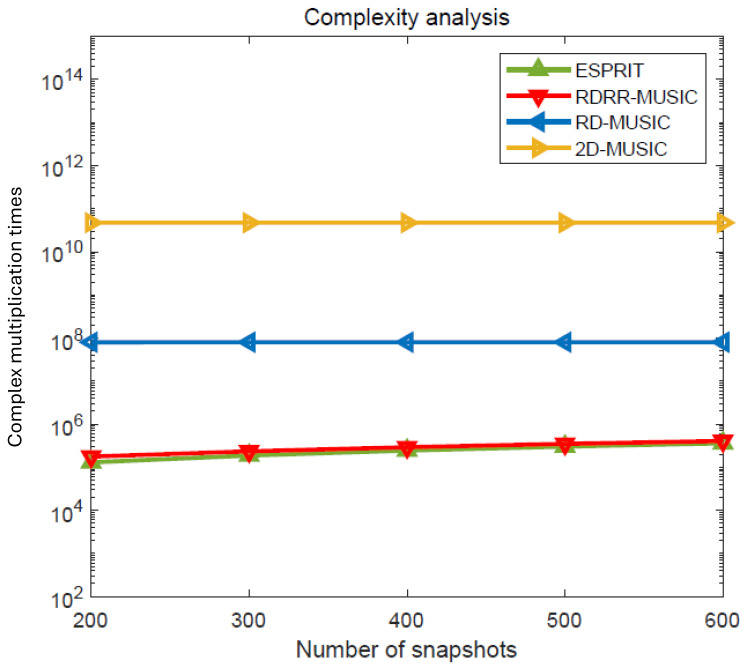

Frequency diversity array-multiple-input multiple-output (FDA-MIMO) radar realizes an angle- and range-dependent system model by adopting a slight frequency offset between adjacent transmitter sensors, thereby enabling potential target localization. This paper presents FDA-MIMO radar-based rapid target localization via the reduction dimension root reconstructed multiple signal classification (RDRR-MUSIC) algorithm. Firstly, we reconstruct the two-dimensional (2D)-MUSIC spatial spectrum function using the reconstructed steering vector, which involves no coupling of direction of arrival (DOA) and range. Subsequently, the 2D spectrum peaks search (SPS) is converted into one-dimensional (1D) SPS to reduce the computational complexity using a reduction dimension transformation. Finally, we conduct polynomial root finding to further eliminate computational costs, in which DOA and range can be rapidly estimated without performance degradation. The simulation results validate the effectiveness and superiority of the proposed RDRR-MUSIC algorithm over the conventional 2D-MUSIC algorithm and reduced-dimension (RD)-MUSIC algorithm.
