Nonflammable F/N synergistic electrolyte boosting high-voltage Li metal batteries in wide temperature range

IF 20.2 1区 材料科学 Q1 CHEMISTRY, PHYSICAL Energy Storage Materials Pub Date : 2025-02-01 Epub Date: 2025-01-27 DOI:10.1016/j.ensm.2025.104066
Yilu Wu , Qinghui Zhang , Ning Wang , Kuirong Deng
{"title":"Nonflammable F/N synergistic electrolyte boosting high-voltage Li metal batteries in wide temperature range","authors":"Yilu Wu ,&nbsp;Qinghui Zhang ,&nbsp;Ning Wang ,&nbsp;Kuirong Deng","doi":"10.1016/j.ensm.2025.104066","DOIUrl":null,"url":null,"abstract":"<div><div>High-voltage Li metal batteries are promising energy storage technologies owing to their high energy densities (&gt;400 Wh kg<sup>−1</sup>). However, high-voltage Li metal batteries with conventional electrolytes suffer from poor interface stability, inferior cycle performance and low security. Herein, we develop a rational design of nonflammable fluorinated amide electrolyte via the synergetic combination of F/N donating solvents to construct robust and highly conductive solid electrolyte interphases (SEIs) and cathode-electrolyte interphases (CEIs) with high LiF and Li<sub>3</sub>N content, which effectively enhance the interface stability and accelerate interfacial kinetics of Li metal anodes and LiNi<sub>0.8</sub>Co<sub>0.1</sub>Mn<sub>0.1</sub>O<sub>2</sub> (NCM811) cathodes. More anions are brought into the primary solvation shell of Li<sup>+</sup> to participate in the formation of SEIs/CEIs by tuning the intermolecular interactions. As a result, extremely stable and high-efficiency cycle of Li metal anodes in Li||Li cells and Li||Cu cells is achieved. The performance of Li||NCM811 cells is markedly boosted under high voltage (4.7 V) and in wide temperature range (−20 °C to 60 °C), which display outstanding cycle stability over 650 cycles and excellent rate capability up to 20 C. This work sheds new lights on F/N synergetic effect and intermolecular interactions of electrolytes for Li metal batteries.</div></div>","PeriodicalId":306,"journal":{"name":"Energy Storage Materials","volume":"75 ","pages":"Article 104066"},"PeriodicalIF":20.2000,"publicationDate":"2025-02-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Energy Storage Materials","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S2405829725000674","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/1/27 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0

Abstract

High-voltage Li metal batteries are promising energy storage technologies owing to their high energy densities (>400 Wh kg−1). However, high-voltage Li metal batteries with conventional electrolytes suffer from poor interface stability, inferior cycle performance and low security. Herein, we develop a rational design of nonflammable fluorinated amide electrolyte via the synergetic combination of F/N donating solvents to construct robust and highly conductive solid electrolyte interphases (SEIs) and cathode-electrolyte interphases (CEIs) with high LiF and Li3N content, which effectively enhance the interface stability and accelerate interfacial kinetics of Li metal anodes and LiNi0.8Co0.1Mn0.1O2 (NCM811) cathodes. More anions are brought into the primary solvation shell of Li+ to participate in the formation of SEIs/CEIs by tuning the intermolecular interactions. As a result, extremely stable and high-efficiency cycle of Li metal anodes in Li||Li cells and Li||Cu cells is achieved. The performance of Li||NCM811 cells is markedly boosted under high voltage (4.7 V) and in wide temperature range (−20 °C to 60 °C), which display outstanding cycle stability over 650 cycles and excellent rate capability up to 20 C. This work sheds new lights on F/N synergetic effect and intermolecular interactions of electrolytes for Li metal batteries.

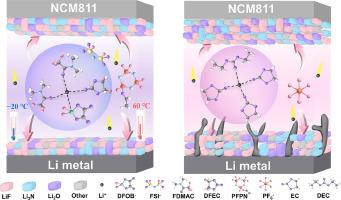

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
非可燃F/N协同电解液促进宽温度范围高压锂金属电池
高压锂金属电池由于其高能量密度(>400 Wh kg−1)而成为有前途的储能技术。然而,传统电解液高压锂电池存在界面稳定性差、循环性能差、安全性低等问题。本研究通过F/N给体溶剂的协同组合,合理设计了不可燃氟酰胺电解质,构建了具有高LiF和Li3N含量的坚固高导电性固体电解质界面(SEIs)和阴极-电解质界面(CEIs),有效提高了Li金属阳极和LiNi0.8Co0.1Mn0.1O2 (NCM811)阴极的界面稳定性和离子电导率。通过调节分子间相互作用,将更多的阴离子带入Li+的初级溶剂化壳层,参与SEIs/ cei的形成。从而实现了Li||Li电池和Li||Cu电池中极稳定高效的锂金属阳极循环。Li||NCM811电池在高电压(4.7 V)和宽温度范围(- 20°C ~ 60°C)下的性能得到了显著提升,在650次循环中表现出稳定的循环性能,在20℃下表现出优异的倍率性能。本研究为锂金属电池F/N协同效应和电解质分子间相互作用提供了新的视角。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
