Multi-Functional Interface Engineering for Monolithic Perovskite/Perovskite/Crystalline Silicon Triple-Junction Tandem Solar Cells

IF 6.6 2区 化学 Q1 CHEMISTRY, MULTIDISCIPLINARY ChemSusChem Pub Date : 2025-02-01 DOI:10.1002/cssc.202402680
Yufei Shao, Shulin Wang, Tian Luo, Chang Xu, Jieqiong Liu, Lu Liu, XinRui Dong, Hanying Wang, Kai Wang, Shengzhong Liu
{"title":"Multi-Functional Interface Engineering for Monolithic Perovskite/Perovskite/Crystalline Silicon Triple-Junction Tandem Solar Cells","authors":"Yufei Shao,&nbsp;Shulin Wang,&nbsp;Tian Luo,&nbsp;Chang Xu,&nbsp;Jieqiong Liu,&nbsp;Lu Liu,&nbsp;XinRui Dong,&nbsp;Hanying Wang,&nbsp;Kai Wang,&nbsp;Shengzhong Liu","doi":"10.1002/cssc.202402680","DOIUrl":null,"url":null,"abstract":"<p>Perovskite/perovskite/silicon triple-junction tandem solar cells (TSCs) hold significant potential for achieving higher efficiencies while lowering the levelized cost of electricity. The top subcell utilizing wide-bandgap (WBG) perovskite is crucial for improving the efficiency of TSCs. However, the defects caused by poorly crystallized WBG perovskite films and suboptimal energy level alignment lead to significant energy loss. Herein, we present a multifunctional interface engineering utilizing piperazinium bromide (PZBr) for enhancing the property of 2.03 eV perovskite films. The unique molecular structure of PZBr enables it to effectively passivate defects in perovskite films, to suppress photoinduced phase segregation, and to improve the energy band alignment between perovskite films and contact layers. Additionally, the PZBr modification facilitates the crystal ripening process in perovskite polycrystalline films. These functions result in suppressed non-radiative recombination and accelerated carrier extraction. Consequently, single-junction 2.03 eV perovskite solar cells (PSCs) achieved a remarkable efficiency of 13.82 %. In further, a monolithic triple-junction TSC was fabricated, achieving a photovoltage of 2.96 V and a champion efficiency of 20.05 % (aperture area: 1 cm<sup>2</sup>). This work underscores the critical role of PZBr-based interface engineering in advancing WBG PSCs and triple-junction TSCs.</p>","PeriodicalId":149,"journal":{"name":"ChemSusChem","volume":"18 11","pages":""},"PeriodicalIF":6.6000,"publicationDate":"2025-02-01","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"ChemSusChem","FirstCategoryId":"92","ListUrlMain":"https://chemistry-europe.onlinelibrary.wiley.com/doi/10.1002/cssc.202402680","RegionNum":2,"RegionCategory":"化学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Perovskite/perovskite/silicon triple-junction tandem solar cells (TSCs) hold significant potential for achieving higher efficiencies while lowering the levelized cost of electricity. The top subcell utilizing wide-bandgap (WBG) perovskite is crucial for improving the efficiency of TSCs. However, the defects caused by poorly crystallized WBG perovskite films and suboptimal energy level alignment lead to significant energy loss. Herein, we present a multifunctional interface engineering utilizing piperazinium bromide (PZBr) for enhancing the property of 2.03 eV perovskite films. The unique molecular structure of PZBr enables it to effectively passivate defects in perovskite films, to suppress photoinduced phase segregation, and to improve the energy band alignment between perovskite films and contact layers. Additionally, the PZBr modification facilitates the crystal ripening process in perovskite polycrystalline films. These functions result in suppressed non-radiative recombination and accelerated carrier extraction. Consequently, single-junction 2.03 eV perovskite solar cells (PSCs) achieved a remarkable efficiency of 13.82 %. In further, a monolithic triple-junction TSC was fabricated, achieving a photovoltage of 2.96 V and a champion efficiency of 20.05 % (aperture area: 1 cm2). This work underscores the critical role of PZBr-based interface engineering in advancing WBG PSCs and triple-junction TSCs.

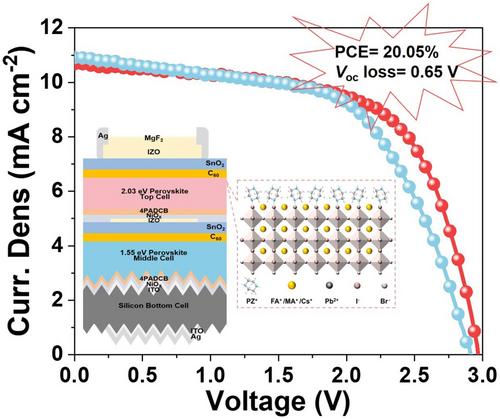

Abstract Image

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
单片钙钛矿/钙钛矿/晶体硅三结串联太阳能电池的多功能接口工程。
钙钛矿/钙钛矿/硅三结串联太阳能电池(TSCs)在实现更高效率的同时降低了电力的平准化成本,具有巨大的潜力。利用宽带隙(WBG)钙钛矿的顶部亚电池对于提高tsc的效率至关重要。然而,由于WBG钙钛矿薄膜结晶不良和次优能级排列导致的缺陷导致了显著的能量损失。本文提出了一种利用溴化哌嗪(PZBr)增强2.03 ev钙钛矿薄膜性能的多功能界面工程。PZBr独特的分子结构使其能够有效钝化钙钛矿薄膜中的缺陷,抑制光致相偏析,改善钙钛矿薄膜与接触层之间的能带对准性。此外,PZBr改性有利于钙钛矿多晶薄膜的晶体成熟过程。这些功能抑制了非辐射复合,加速了载流子的提取。因此,单结2.03 eV钙钛矿太阳能电池(PSCs)的效率达到了13.82%,是目前报道的带隙超过2.0 eV的PSCs中效率最高的电池之一。进一步,制备了单片三结TSC,实现了2.96 V的光电压和20.05%的冠军效率(孔径面积为1 cm2)。这项工作强调了基于pzbr的界面工程在推进WBG psc和三结tsc方面的关键作用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
