Ohmic Contact Heterostructures Immobilized Pt Single Atoms for Boosting Alkaline Hydrogen Evolution Reaction

IF 12.1 2区 材料科学 Q1 CHEMISTRY, MULTIDISCIPLINARY Small Pub Date : 2025-02-03 DOI:10.1002/smll.202411696
Xiaoyan Zheng, Xiaoxiao Wu, Rui Wan, Yuguang Wang, Bin Chen, Guowen Meng
{"title":"Ohmic Contact Heterostructures Immobilized Pt Single Atoms for Boosting Alkaline Hydrogen Evolution Reaction","authors":"Xiaoyan Zheng,&nbsp;Xiaoxiao Wu,&nbsp;Rui Wan,&nbsp;Yuguang Wang,&nbsp;Bin Chen,&nbsp;Guowen Meng","doi":"10.1002/smll.202411696","DOIUrl":null,"url":null,"abstract":"<p>Pt single-atoms catalysts have been widely confirmed as ideal electrocatalysts for high-efficiency hydrogen evolution reaction (HER), but their activity and durability at high current density remain great challenges, especially in alkaline media. Herein, a unique Ohmic contact heterostructure is fabricated by integrating Ni and NiO to immobilize Pt single-atoms (Ni-NiO-Pt) via Pt-O<sub>4</sub> coordination for boosting the alkaline HER. Owing to transient high temperature and pressure in the laser ablation process, Ohmic contact heterojunctions are constructed at the interfaces between metal Ni core and nanoporous semiconducting NiO shell with adequate oxygen vacancies. The large work function difference triggers the electron transfer from Ni to Pt-decorated NiO, which dramatically eliminates the electron conduction impedance and regulates the charge redistribution. Density functional theory calculation unveils that the multiple regulations of energy barrier and charge redistribution on Ohmic contact endow Ni-NiO-Pt with outstanding electrical conductivity and favorable hydrogen binding energy. Consequently, Ni-NiO-Pt displays superior alkaline HER performances with an overpotential of 23.54 mV at 10 mA cm<sup>−2</sup> and protruding durability for 75 h at 500 mA cm<sup>−2</sup>, drastically outperforming commercial Pt/C and most reported HER electrocatalysts. The immobilization of Pt single-atoms on Ohmic contact opens up an avenue toward the rational design of high-efficiency electrocatalysts.</p>","PeriodicalId":228,"journal":{"name":"Small","volume":"21 22","pages":""},"PeriodicalIF":12.1000,"publicationDate":"2025-02-03","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Small","FirstCategoryId":"88","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/smll.202411696","RegionNum":2,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, MULTIDISCIPLINARY","Score":null,"Total":0}
引用次数: 0

Abstract

Pt single-atoms catalysts have been widely confirmed as ideal electrocatalysts for high-efficiency hydrogen evolution reaction (HER), but their activity and durability at high current density remain great challenges, especially in alkaline media. Herein, a unique Ohmic contact heterostructure is fabricated by integrating Ni and NiO to immobilize Pt single-atoms (Ni-NiO-Pt) via Pt-O4 coordination for boosting the alkaline HER. Owing to transient high temperature and pressure in the laser ablation process, Ohmic contact heterojunctions are constructed at the interfaces between metal Ni core and nanoporous semiconducting NiO shell with adequate oxygen vacancies. The large work function difference triggers the electron transfer from Ni to Pt-decorated NiO, which dramatically eliminates the electron conduction impedance and regulates the charge redistribution. Density functional theory calculation unveils that the multiple regulations of energy barrier and charge redistribution on Ohmic contact endow Ni-NiO-Pt with outstanding electrical conductivity and favorable hydrogen binding energy. Consequently, Ni-NiO-Pt displays superior alkaline HER performances with an overpotential of 23.54 mV at 10 mA cm−2 and protruding durability for 75 h at 500 mA cm−2, drastically outperforming commercial Pt/C and most reported HER electrocatalysts. The immobilization of Pt single-atoms on Ohmic contact opens up an avenue toward the rational design of high-efficiency electrocatalysts.

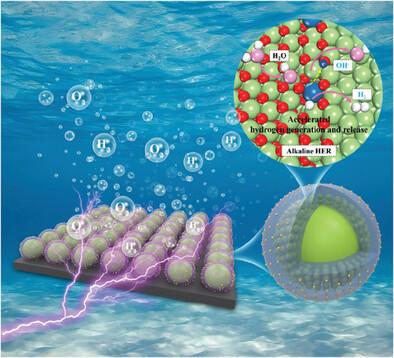

Abstract Image

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
欧姆接触异质结构固定化铂单原子促进碱性析氢反应
Pt单原子催化剂是高效析氢反应(HER)的理想电催化剂,但其在高电流密度下的活性和耐久性仍然是一个很大的挑战,特别是在碱性介质中。本文通过整合Ni和NiO,通过Pt- o4配位固定Pt单原子(Ni-NiO-Pt),制备了一种独特的欧姆接触异质结构,以提高碱性HER。在激光烧蚀过程中,由于瞬态高温高压的作用,金属镍芯与纳米多孔半导体NiO壳层之间形成了欧姆接触异质结,并形成了足够的氧空位。较大的功函数差触发了电子从Ni向pt修饰的NiO的转移,极大地消除了电子传导阻抗,调节了电荷的再分配。密度泛函理论计算表明,Ni-NiO-Pt具有优异的导电性和良好的氢结合能。因此,Ni-NiO-Pt表现出优异的碱性HER性能,在10 mA cm - 2下过电位为23.54 mV,在500 mA cm - 2下突出耐用75小时,大大优于商用Pt/C和大多数报道的HER电催化剂。铂单原子在欧姆接触上的固定为高效电催化剂的合理设计开辟了一条途径。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
