Lyotropic Liquid Crystal Mediated Assembly of Donor Polymers Enhances Efficiency and Stability of Blade-Coated Organic Solar Cells

Abstract

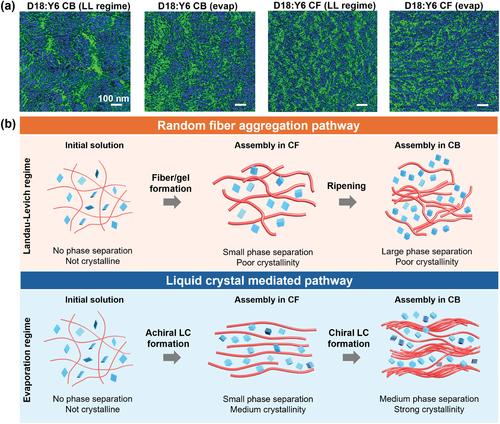

Conjugated polymers can undergo complex, concentration-dependent self-assembly during solution processing, yet little is known about its impact on film morphology and device performance of organic solar cells. Herein, lyotropic liquid crystal (LLC) mediated assembly across multiple conjugated polymers is reported, which generally gives rise to improved device performance of blade-coated non-fullerene bulk heterojunction solar cells. Using D18 as a model system, the formation mechanism of LLC is unveiled employing solution X-ray scattering and microscopic imaging tools: D18 first aggregates into semicrystalline nanofibers, then assemble into achiral nematic LLC which goes through symmetry breaking to yield a chiral twist-bent LLC. The assembly pathway is driven by increasing solution concentration – a common driving force during evaporative assembly relevant to scalable manufacturing. This assembly pathway can be largely modulated by coating regimes to give 1) lyotropic liquid crystalline assembly in the evaporation regime and 2) random fiber aggregation pathway in the Landau–Levich regime. The chiral liquid crystalline assembly pathway resulted in films with crystallinity 2.63 times that of films from the random fiber aggregation pathway, significantly enhancing the T80 lifetime by 50-fold. The generality of LLC-mediated assembly and enhanced device performance is further validated using polythiophene and quinoxaline-based donor polymers.
