Heryka R.A. Costa , Tainá L. Freire , Adriel S. Almeida , Cleanio da Luz-Lima , Pedro de Lima-Neto , Adriana N. Correia , Thiago M.B.F. Oliveira
{"title":"Photosystem I-inspired artificial cell for catalytic hydrogen production driven by lanthanum(III) tungstate","authors":"Heryka R.A. Costa , Tainá L. Freire , Adriel S. Almeida , Cleanio da Luz-Lima , Pedro de Lima-Neto , Adriana N. Correia , Thiago M.B.F. Oliveira","doi":"10.1016/j.electacta.2025.145853","DOIUrl":null,"url":null,"abstract":"<div><div>Some photosynthetic organisms, including cyanobacteria and green algae, use photosystem-I (PSI) electrons to reduce H<sup>+</sup> ions into H<sub>2</sub> molecules (light-to-chemical energy conversion mediated by hydrogenase enzymes). Innovative artificial photosynthesis technologies have been proposed to overcome important limitations of this natural process (e.g., enzyme inactivation and competing reduction reactions), but they still demand more efficient, stable, and low-cost electrode materials as progress requirements. This article addresses a series of physicochemical features and properties of lanthanum(III) tungstate – La<sub>2</sub>(WO<sub>4</sub>)<sub>3</sub>, demonstrating great potential to produce H<sub>2</sub> in a PSI-inspired photoelectrochemical cell. La<sub>2</sub>(WO<sub>4</sub>)<sub>3</sub> was prepared by hydrothermal synthesis, resulting in American football-like structures with high surface area and well-ordered crystalline arrangement. This <em>p</em>-type semiconductor was also susceptible to photoexcitation (<em>E<sub>gap</sub></em> = 4.05 eV) by ultraviolet radiation, boosting the hydrogen evolution reaction (HER) kinetics after its immobilization on Nafion®/fluorine-doped tin oxide glass substrate (NF/FTO). Using La<sub>2</sub>(WO<sub>4</sub>)<sub>3</sub>/NF/FTO as a reactor photocathode, the generated and accumulated electrons move towards its surface, facilitating energetically unfavorable reduction reactions, such as HER. Regarding the device performance in 0.1 mol L<sup>‒1</sup> Na<sub>2</sub>SO<sub>4</sub> (pH = 11 at 25 °C), an appreciable reaction yield (150 mL h<sup>‒1</sup> cm<sup>‒2</sup>) was obtained, provided by the low overpotential (<em>η</em> = ‒0.41 V to reach 10 mA cm<sup>‒2</sup>) and high exchange current density (<em>j<sub>0</sub></em> = 2.89×10<sup>−5</sup> mA cm<sup>−2</sup>) achieved, although it can be made even better by using SO<sub>3</sub><sup>2‒</sup> as a sacrificial reducing agent (192 mL h<sup>‒1</sup> cm<sup>‒2</sup>). Not least, this research still supports the rational design of (photo)electrochemical cells developed for energy conversion and/or related processes.</div></div>","PeriodicalId":305,"journal":{"name":"Electrochimica Acta","volume":"519 ","pages":"Article 145853"},"PeriodicalIF":5.6000,"publicationDate":"2025-04-10","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Electrochimica Acta","FirstCategoryId":"88","ListUrlMain":"https://www.sciencedirect.com/science/article/pii/S0013468625002166","RegionNum":3,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"2025/2/12 0:00:00","PubModel":"Epub","JCR":"Q1","JCRName":"ELECTROCHEMISTRY","Score":null,"Total":0}
引用次数: 0
Abstract

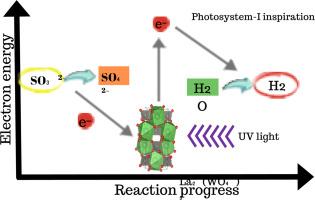

Some photosynthetic organisms, including cyanobacteria and green algae, use photosystem-I (PSI) electrons to reduce H+ ions into H2 molecules (light-to-chemical energy conversion mediated by hydrogenase enzymes). Innovative artificial photosynthesis technologies have been proposed to overcome important limitations of this natural process (e.g., enzyme inactivation and competing reduction reactions), but they still demand more efficient, stable, and low-cost electrode materials as progress requirements. This article addresses a series of physicochemical features and properties of lanthanum(III) tungstate – La2(WO4)3, demonstrating great potential to produce H2 in a PSI-inspired photoelectrochemical cell. La2(WO4)3 was prepared by hydrothermal synthesis, resulting in American football-like structures with high surface area and well-ordered crystalline arrangement. This p-type semiconductor was also susceptible to photoexcitation (Egap = 4.05 eV) by ultraviolet radiation, boosting the hydrogen evolution reaction (HER) kinetics after its immobilization on Nafion®/fluorine-doped tin oxide glass substrate (NF/FTO). Using La2(WO4)3/NF/FTO as a reactor photocathode, the generated and accumulated electrons move towards its surface, facilitating energetically unfavorable reduction reactions, such as HER. Regarding the device performance in 0.1 mol L‒1 Na2SO4 (pH = 11 at 25 °C), an appreciable reaction yield (150 mL h‒1 cm‒2) was obtained, provided by the low overpotential (η = ‒0.41 V to reach 10 mA cm‒2) and high exchange current density (j0 = 2.89×10−5 mA cm−2) achieved, although it can be made even better by using SO32‒ as a sacrificial reducing agent (192 mL h‒1 cm‒2). Not least, this research still supports the rational design of (photo)electrochemical cells developed for energy conversion and/or related processes.
一些光合生物,包括蓝藻和绿藻,利用光系统i (PSI)电子将H+离子还原成H2分子(由氢化酶介导的光能到化学能的转换)。已经提出了创新的人工光合作用技术来克服这一自然过程的重要局限性(例如,酶失活和竞争性还原反应),但它们仍然需要更高效,稳定和低成本的电极材料作为进展要求。本文介绍了钨酸镧- La2(WO4)3的一系列物理化学特征和性质,证明了在psi启发的光电电池中产生H2的巨大潜力。采用水热合成法制备了La2(WO4)3,得到了具有高比表面积和有序晶体排列的美式足球结构。该p型半导体还易受紫外线光激发(Egap = 4.05 eV),在Nafion®/掺氟氧化锡玻璃衬底(NF/FTO)上固定后,促进了析氢反应(HER)动力学。使用La2(WO4)3/NF/FTO作为反应器的光电阴极,产生和积累的电子向其表面移动,促进能量不利的还原反应,如HER。在0.1 mol L-1 Na2SO4 (pH = 11,25°C)条件下,通过低过电位(η = - 0.41 V,达到10 mA cm - 2)和高交换电流密度(j0 = 2.89×10 - 5 mA cm - 2),可以获得可观的反应产率(150 mL h-1 cm - 2),尽管使用SO32 -作为牺牲还原剂(192 mL h-1 cm - 2)可以获得更好的反应产率。重要的是,这项研究仍然支持用于能量转换和/或相关过程的(光电)电化学电池的合理设计。
