Wei Tang, Dapeng Xu, Junlin Wu, Dong Ju Lee, Alexander Fuqua, Feng Li, Yuju Jeon, Wenjuan Bian, Zheng Chen
{"title":"Stable Cycling of Sodium All-Solid-State Batteries with High-Capacity Cathode Presodiation","authors":"Wei Tang, Dapeng Xu, Junlin Wu, Dong Ju Lee, Alexander Fuqua, Feng Li, Yuju Jeon, Wenjuan Bian, Zheng Chen","doi":"10.1002/aenm.202405678","DOIUrl":null,"url":null,"abstract":"<p>Sodium all-solid-state batteries (NaSSBs) with an alloy-type anode (e.g., Sn and Sb) offer superior capacity and energy density compared to hard carbon anode. However, the irreversible loss of Na<sup>+</sup> at the alloy anode during the initial cycle results in diminished capacity and stability, impairing full-cell performance. This study presents an easy-to-implement cathode presodiation strategy by employing a Na-rich material to address these challenges. Leveraging the high theoretical capacity and suitable voltage window, Na<sub>2</sub>S is chosen as the Na donor, which is activated by creating a mixed electron-ion conducting network, delivering a high capacity of 511.7 mAh g<sup>−1</sup>. By adding a small amount (i.e., 3 wt.%) of Na<sub>2</sub>S to the cathode composite, a NaCrO<sub>2</sub> || Sn full cell demonstrated capacity improvement from 90.8 to 118.2 mAh g<sup>−1</sup> (based on cathode mass). The capacity-balanced full cell can thus cycle to more than 300 times with >90% capacity retention. This work provides a practical solution to enhance the full-cell performance and advance the transformation from half-cell to full-cell applications of NaSSBs.</p>","PeriodicalId":111,"journal":{"name":"Advanced Energy Materials","volume":"15 23","pages":""},"PeriodicalIF":26.0000,"publicationDate":"2025-02-16","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Advanced Energy Materials","FirstCategoryId":"88","ListUrlMain":"https://advanced.onlinelibrary.wiley.com/doi/10.1002/aenm.202405678","RegionNum":1,"RegionCategory":"材料科学","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"CHEMISTRY, PHYSICAL","Score":null,"Total":0}
引用次数: 0
Abstract

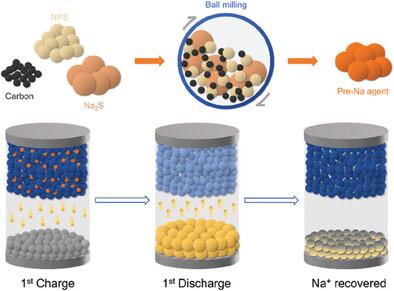

Sodium all-solid-state batteries (NaSSBs) with an alloy-type anode (e.g., Sn and Sb) offer superior capacity and energy density compared to hard carbon anode. However, the irreversible loss of Na+ at the alloy anode during the initial cycle results in diminished capacity and stability, impairing full-cell performance. This study presents an easy-to-implement cathode presodiation strategy by employing a Na-rich material to address these challenges. Leveraging the high theoretical capacity and suitable voltage window, Na2S is chosen as the Na donor, which is activated by creating a mixed electron-ion conducting network, delivering a high capacity of 511.7 mAh g−1. By adding a small amount (i.e., 3 wt.%) of Na2S to the cathode composite, a NaCrO2 || Sn full cell demonstrated capacity improvement from 90.8 to 118.2 mAh g−1 (based on cathode mass). The capacity-balanced full cell can thus cycle to more than 300 times with >90% capacity retention. This work provides a practical solution to enhance the full-cell performance and advance the transformation from half-cell to full-cell applications of NaSSBs.
钠全固态电池(nassb)具有合金型阳极(例如,Sn和Sb),与硬碳阳极相比,具有优越的容量和能量密度。然而,在初始循环过程中,合金阳极上Na+的不可逆损失导致容量和稳定性下降,损害了整个电池的性能。本研究提出了一种易于实施的阴极沉淀策略,采用富钠材料来解决这些挑战。利用高理论容量和合适的电压窗,选择Na2S作为Na供体,通过创建混合电子-离子传导网络激活,提供511.7 mAh g−1的高容量。通过在阴极复合材料中添加少量(即3 wt.%)的Na2S, NaCrO2 || Sn充满电池的容量从90.8 mAh g−1提高到118.2 mAh g−1(基于阴极质量)。因此,容量平衡的全电池可以循环300次以上,容量保持率为90%。这项工作为提高nassb的全电池性能和推进从半电池到全电池应用的转变提供了一种实用的解决方案。
