Highly Bright Silicon Nanocrystal White Light-Emitting Diodes With Luminance in Excess of 10000 cd m⁻2

IF 10 1区 物理与天体物理 Q1 OPTICS Laser & Photonics Reviews Pub Date : 2025-02-18 DOI:10.1002/lpor.202402164
Fengyang Ma, Kaixin Liu, Zhongyao Yan, Liang Yu, Yanru Yang, Wuyan Zhao, Feilong Wang, Yaohua Li, Shuyu Zhang, Songyou Wang, Jian Sun, Ming Lu
{"title":"Highly Bright Silicon Nanocrystal White Light-Emitting Diodes With Luminance in Excess of 10000 cd m⁻2","authors":"Fengyang Ma,&nbsp;Kaixin Liu,&nbsp;Zhongyao Yan,&nbsp;Liang Yu,&nbsp;Yanru Yang,&nbsp;Wuyan Zhao,&nbsp;Feilong Wang,&nbsp;Yaohua Li,&nbsp;Shuyu Zhang,&nbsp;Songyou Wang,&nbsp;Jian Sun,&nbsp;Ming Lu","doi":"10.1002/lpor.202402164","DOIUrl":null,"url":null,"abstract":"<p>Silicon (Si) light source has profound significance in monolithic integrated Si photonics. However, its luminance remains too low to meet practical use that usually requires &gt; 10000 cd m⁻<sup>2</sup>. Here, an all-inorganic Si nanocrystal (SiNC) white light-emitting diode (WLED) with a continuous emission spectrum spanning ≈400–900 nm in wavelength, is reported. The architecture of the WLED comprises front electrode of Ag grids and transparent-conducting-oxide/electron transport layer (ETL) of ZnO/front charge confinement layer (CCL) of SiO<sub>2</sub>/active layer of low-resistivity SiNC composite thin film/rear CCL of SiO<sub>2</sub>/hole transport layer (HTL) of MoO<sub>3</sub>/textured p-Si substrate/rear electrode of aluminum/heat radiator. The main procedures for achieving high luminance here include combined applications of high-pressure ammonia passivation of the active layer, which enhances its photoluminescence quantum yield significantly, and texturing of p-Si substrate, which boosts the light extraction and charge injection effectively. With an optimized combination of passivation and texturing, luminance of 10751 cd m⁻<sup>2</sup> is achieved with external quantum efficiency (EQE) of 0.26%. After a Peltier cooler is further applied, luminance of 12363 cd m⁻<sup>2</sup> is attained with EQE of 0.30%. Following further technical iterations, this highly bright SiNC WLED shall find applications in monolithic integrated Si photonics and even Si general lighting.</p>","PeriodicalId":204,"journal":{"name":"Laser & Photonics Reviews","volume":"19 12","pages":""},"PeriodicalIF":10.0000,"publicationDate":"2025-02-18","publicationTypes":"Journal Article","fieldsOfStudy":null,"isOpenAccess":false,"openAccessPdf":"","citationCount":"0","resultStr":null,"platform":"Semanticscholar","paperid":null,"PeriodicalName":"Laser & Photonics Reviews","FirstCategoryId":"101","ListUrlMain":"https://onlinelibrary.wiley.com/doi/10.1002/lpor.202402164","RegionNum":1,"RegionCategory":"物理与天体物理","ArticlePicture":[],"TitleCN":null,"AbstractTextCN":null,"PMCID":null,"EPubDate":"","PubModel":"","JCR":"Q1","JCRName":"OPTICS","Score":null,"Total":0}
引用次数: 0

Abstract

Silicon (Si) light source has profound significance in monolithic integrated Si photonics. However, its luminance remains too low to meet practical use that usually requires > 10000 cd m⁻2. Here, an all-inorganic Si nanocrystal (SiNC) white light-emitting diode (WLED) with a continuous emission spectrum spanning ≈400–900 nm in wavelength, is reported. The architecture of the WLED comprises front electrode of Ag grids and transparent-conducting-oxide/electron transport layer (ETL) of ZnO/front charge confinement layer (CCL) of SiO2/active layer of low-resistivity SiNC composite thin film/rear CCL of SiO2/hole transport layer (HTL) of MoO3/textured p-Si substrate/rear electrode of aluminum/heat radiator. The main procedures for achieving high luminance here include combined applications of high-pressure ammonia passivation of the active layer, which enhances its photoluminescence quantum yield significantly, and texturing of p-Si substrate, which boosts the light extraction and charge injection effectively. With an optimized combination of passivation and texturing, luminance of 10751 cd m⁻2 is achieved with external quantum efficiency (EQE) of 0.26%. After a Peltier cooler is further applied, luminance of 12363 cd m⁻2 is attained with EQE of 0.30%. Following further technical iterations, this highly bright SiNC WLED shall find applications in monolithic integrated Si photonics and even Si general lighting.

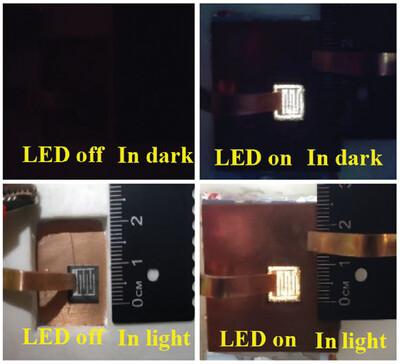

Abstract Image

查看原文
分享 分享
微信好友 朋友圈 QQ好友 复制链接
本刊更多论文
高亮度硅纳米晶体白光发光二极管,亮度超过10000 cd m²
硅光源在单片集成硅光子学中具有十分重要的意义。然而,它的亮度仍然太低,无法满足通常需要>;10000 CD m⁻2。本文报道了一种全无机硅纳米晶(SiNC)白光发光二极管(WLED),其连续发射光谱跨度为≈400-900 nm。WLED的结构由Ag栅格和ZnO的透明导电氧化物/电子传输层(ETL) / SiO2的前电荷约束层(CCL) /低电阻率SiNC复合薄膜的活性层/ SiO2的后CCL / MoO3的空穴传输层(HTL) /纹理化p - Si衬底/铝的后电极/散热片组成。实现高亮度的主要步骤包括对活性层进行高压氨钝化,从而显著提高其光致发光量子产率,以及对p - Si衬底进行纹理化,从而有效地促进光提取和电荷注入。通过优化的钝化和纹理组合,实现了10751 cd m - 2的亮度,外部量子效率(EQE)为0.26%。在进一步应用珀尔帖冷却器后,在EQE为0.30%的情况下获得了12363 cd m⁻2的亮度。经过进一步的技术迭代,这种高亮度的SiNC WLED将在单片集成硅光子学甚至硅通用照明中得到应用。
本文章由计算机程序翻译,如有差异,请以英文原文为准。
